PH-2 SERVICE MANUAL
10. START-UP
NOTE! Directional Indicator Lights must indicate Metering Pump
direction when Pump Switch is in the NORMAL position. If not,
refer to Trouble Shooting section.
11a. Using the Hydraulic Pressure Control, adjust to the required stall pressure and check
each Material Pressure Gauge.

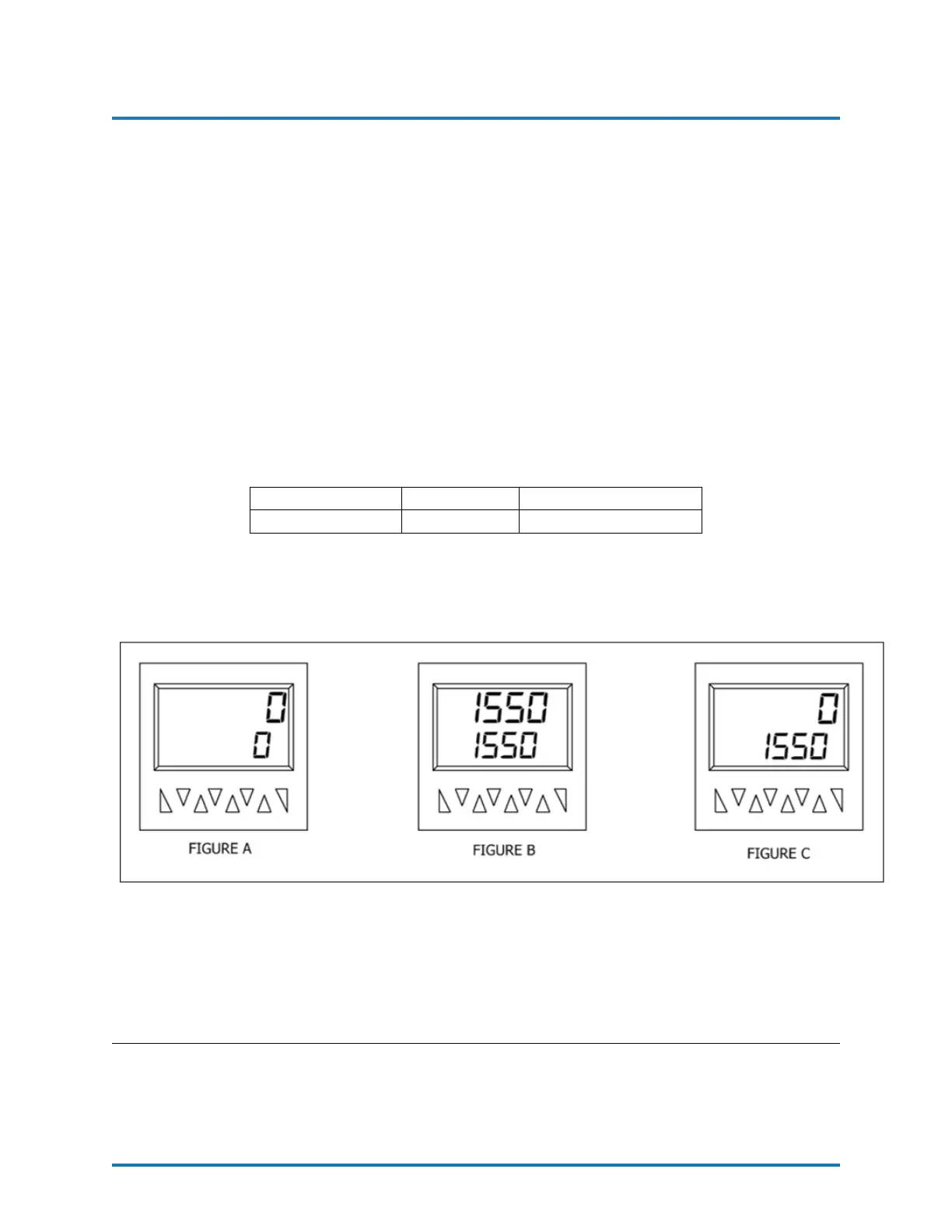

12a. Auto Shut Down Counter - If this function is not needed, leave it in the off
position. To set the Auto Shut Down Counter:
a. Turn the switch to the on position, the green light will illuminate.
b. Insert the number of cycles desired to disable the PH machine by pushing in on the
white triangles to set the cycle count. Push in on the red button until the data
is replicated on the top row, the top row will count down.
Model Pump Size Cycles per Gallon
PH-2 (2,000PSI) 123 27 Cycles
c. When the counter counts down to zero the machine will stop and the pump direc-
tional light will be off, push in on the red button to reset.
13a. Proceed with Installation and Start-up of the Spray Gun as per the Gun manual.
Stall pressure: When materials are at recommended application temperature and Metering
Pumps are pressurized but not moving. This pressure is normally 100–200 psi (7-14 Bar)
greater than the developed spray pressure as recommended by the material supplier.
REVISION 1.2 29
