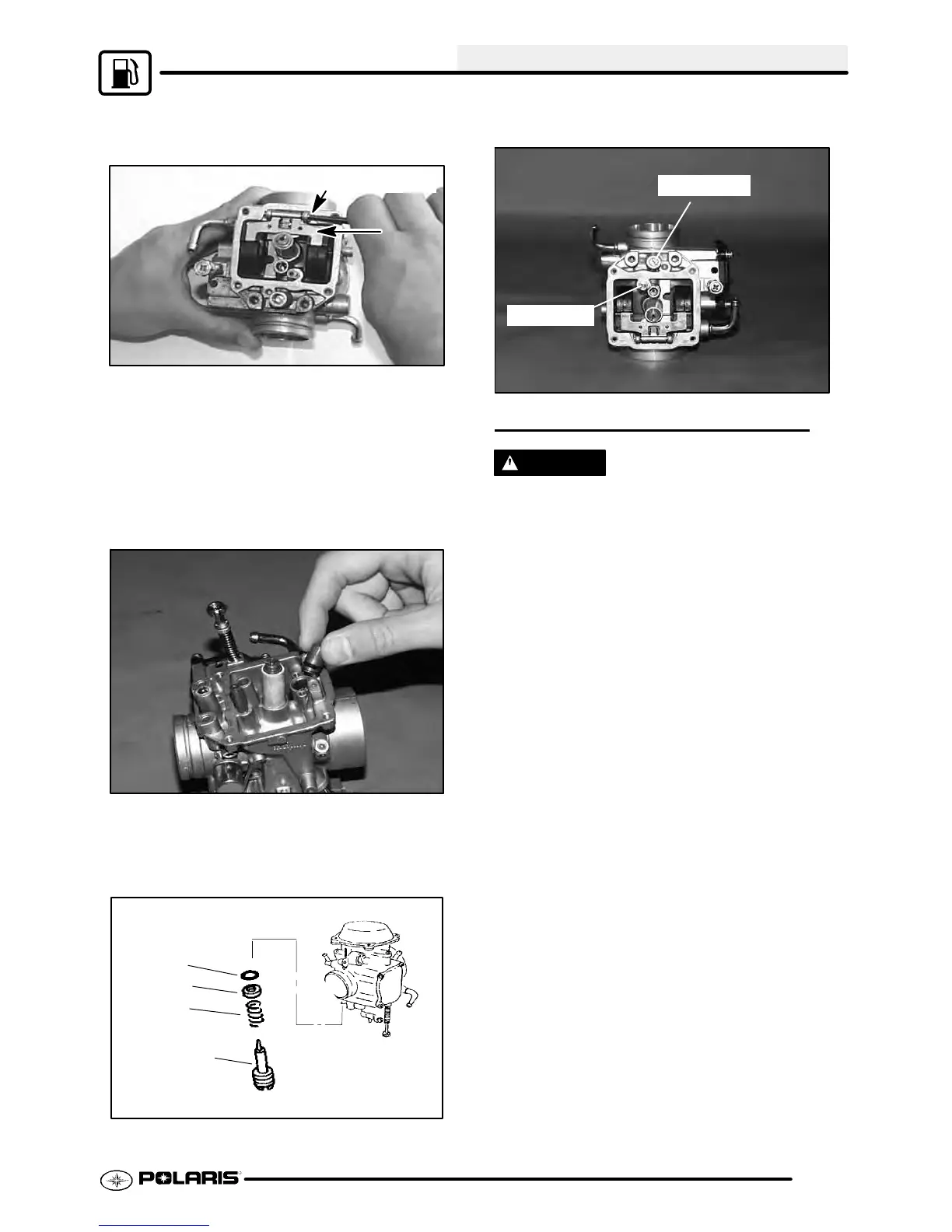

FUEL SYSTEM/CARBURETION
4.9
2. Remove float bowl and carefully remove the
pressed float pin.
Support Here
NOTE: Be careful not to damage the float pin tower
during the float pin removal. Support the float pin
tower while removing the float pin. This helps to
prevent the float pin towers from breaking off.
3. Remove inlet needle seat retaining screw along
with plate, and carefully remove needle seat.
NOTE: Do not use a pliers to remove the seat or
permanent damage may occur.
4. Remove the pilot mixture screw, spring, flat
washer , and O-Ring. If an anti-tamper plug is
installed over the pilot screw cavity, it must be
removed for access.
O-Ring
W asher
Spring
Pilot Screw
NOTE: The starter jet is not removeable. Upon
disassembly, place the parts in a container for safe
keeping.
Starter Jet
Pilot Screw
CARBURETOR CLEANING
W ARNING
Protect eyes from contact with cleaner. Take
appropriate safety measures during these
procedures. Safety glasses and chemical resistant
gloves are required. Should you get cleaner in your
eyes or if youswallowcleaner ,seekmedicalattention
immediately.
Carburetor cleaners can be extremely caustic.
Extendedperiods of soakingcanloosen theadhesive
sealer on the passage drill-way plugs. Do not soak
rubber or plastic components (such as the vacuum
slide diaphragm, needle seat screen, or O-Rings in
caustic cleaning solutions. Irreparable damage may
occur. Do not use agitator--type carburetor cleaning
equipment. Rubber parts must be cleaned with mild
detergent and hot water only.
1. Thoroughly clean the carburetor body, jets, and
all passages with carburetor cleaner or electrical
contact cleaner .
2. If the carburetor is extremely dirty or
contaminated with fuel residue and varnish, soak
for short periods only in carburetor cleaner , and
rinse in hot water.
3. Replace the jets if they have a buildup of fuel
residue or bacterial growth that cannot be
removed. Even a small amount of residue will
reduce the flow characteristics of the jet.
4. Verify all passages and jets are unobstructed by
spraying electrical contact cleaner through the
passages. CAUTION: Donotusewireorwelding
tip cleaners as the orifice size may be altered.
5. Use low pressure air to dry carburetor body and
all components.
