BRAKES
9.13

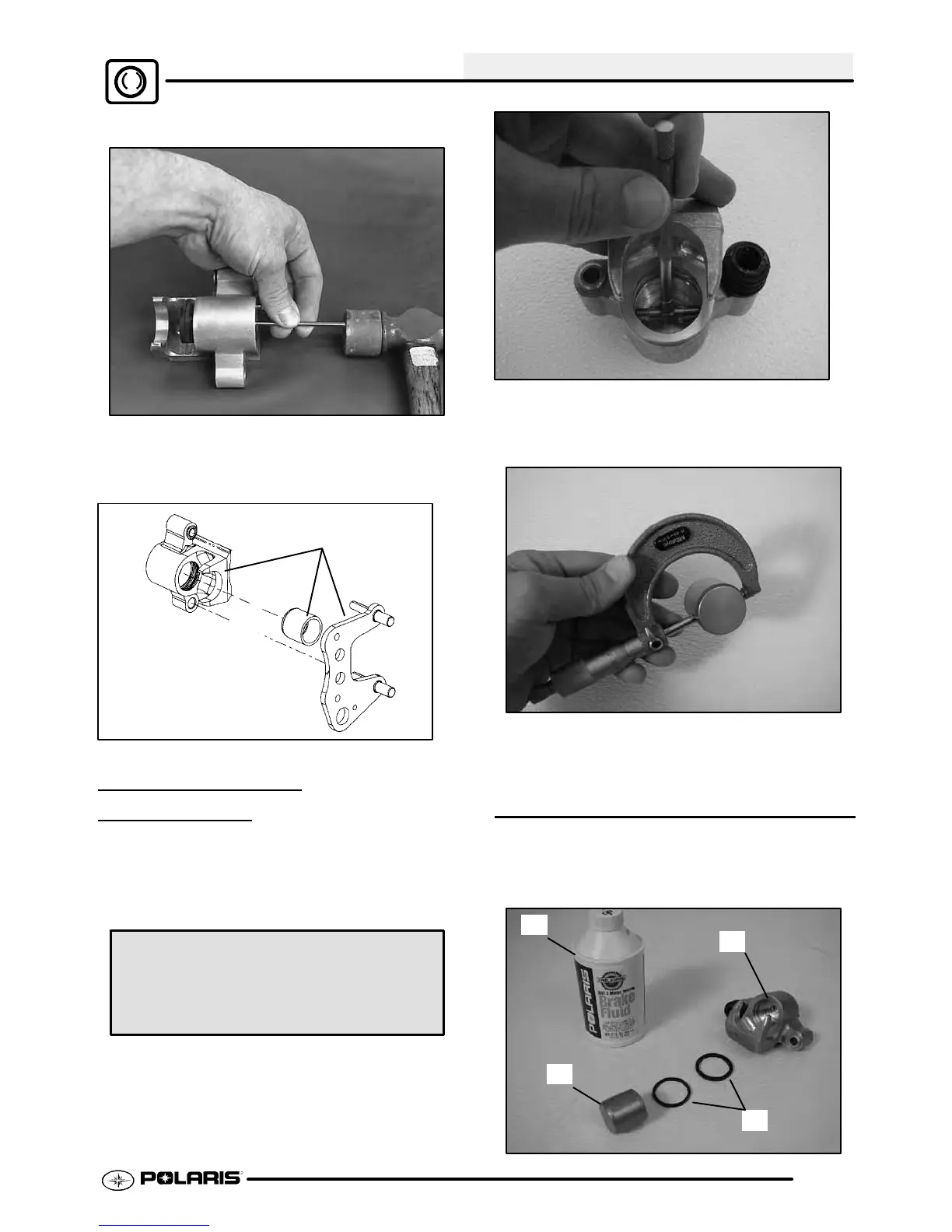

4. Remove piston, dust seal and piston seal.
5. Clean the caliper body, piston, and retaining
bracket with brake cleaner or alcohol.
NOTE: Be sureto clean sealgrooves in caliperbody.
Clean Components
FRONT CALIPER
INSPECTION
1. Inspect caliper body for nicks, scratches or wear .
Measureboresizeandcomparetospecifications.
Replace if damage is evident or if worn beyond
service limit.
Front Caliper Piston Bore I.D.
Std. 1.191- 1.192″ (30.25-30.28 mm)
Service Limit 1.193″ (30.30 mm)
2. Inspect piston for nicks, scratches, wear or
damage. Measure diameter and replace if
damaged or worn beyond service limit.
3. Inspect the brake disc and pads as outlined for
brake pad replacement this section. See Pages
9.34--9.35.
FRONT CALIPER REASSEMBLY
1. Install new O-rings (A) in thecaliper body (B). Be
sure grooveisclean andfree of residueorbrakes
may drag upon assembly.
A
B
C
D
To Next Page
