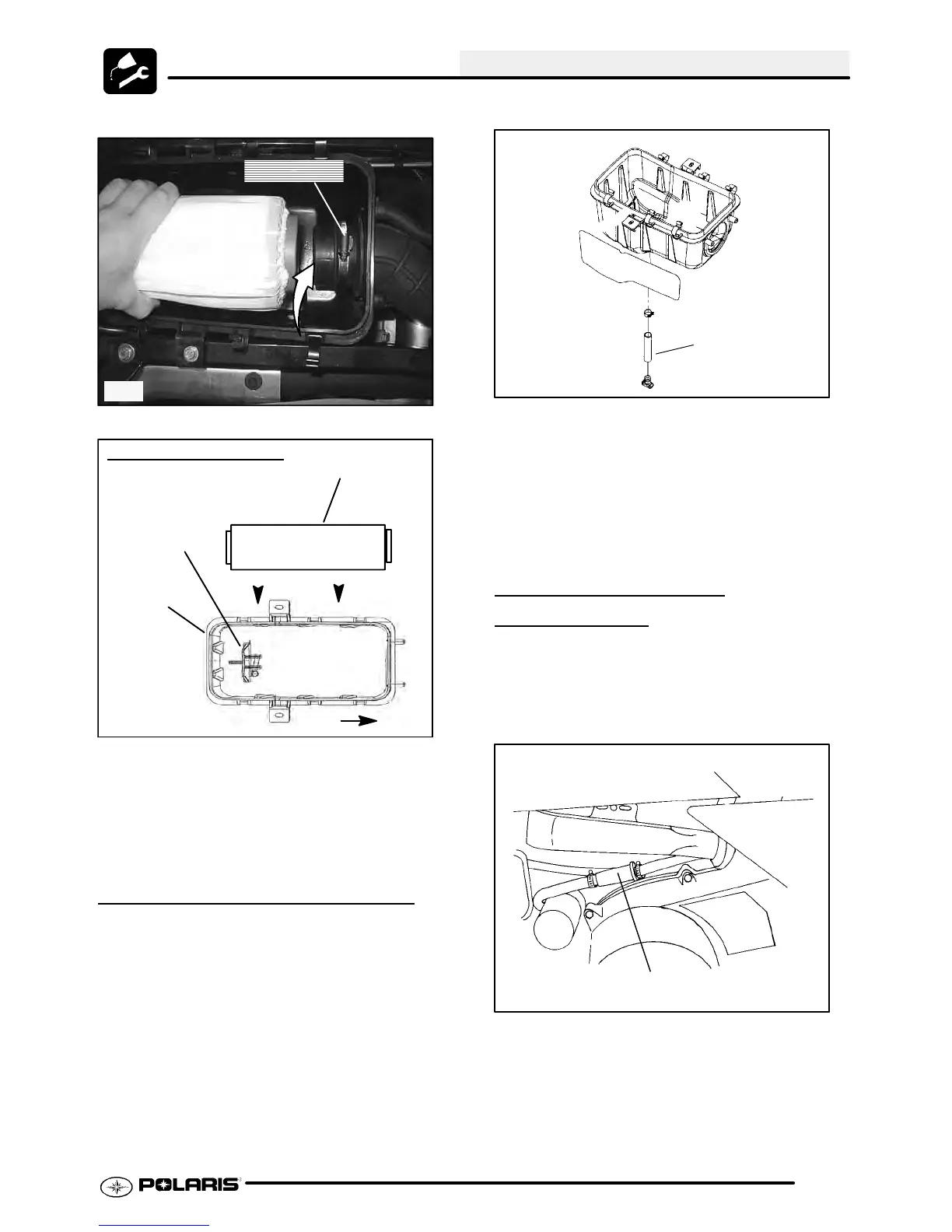

MAINTENANCE
2.25
Filter Clamp
Ill.2
Main Filter
Filter Support
Front
Air Box
Proper Filter Placement
Ill.3
NOTE: The air filter should rest on the filter support.
Proper placement of the air filter is important to
prevent rattles and air leaks. See Illustration above.
12. Install air box cover and secure with clips.
AIR BOX SEDIMENT TUBE
Periodically check the air box drain tube located
toward the rear of the machine. Drain whenever
deposits are visible in the clear tube.
Sediment Tube
NOTE: Thesedimenttubewillrequiremorefrequent
service if the vehicle is operated in wet conditions or
at high throttle openings for extended periods.
1. Remove drain plug from end of sediment tube.
2. Drain tube.
3. Reinstall drain plug.
BREATHER FILTER
INSPECTION
Polaris Four cycle ATV engines are equipped with a
breather filter. The in-line filter is similar in
appearancetoafuelfilter,andisvisibleontheleftside
(Location A).
In-Line Breather Filter
Location A
Typical Breather Filter Location
1. In-line breather filters should be installed withthe
arrow pointing toward the engine (away from the
air box).
