ELECTRICAL
10.13

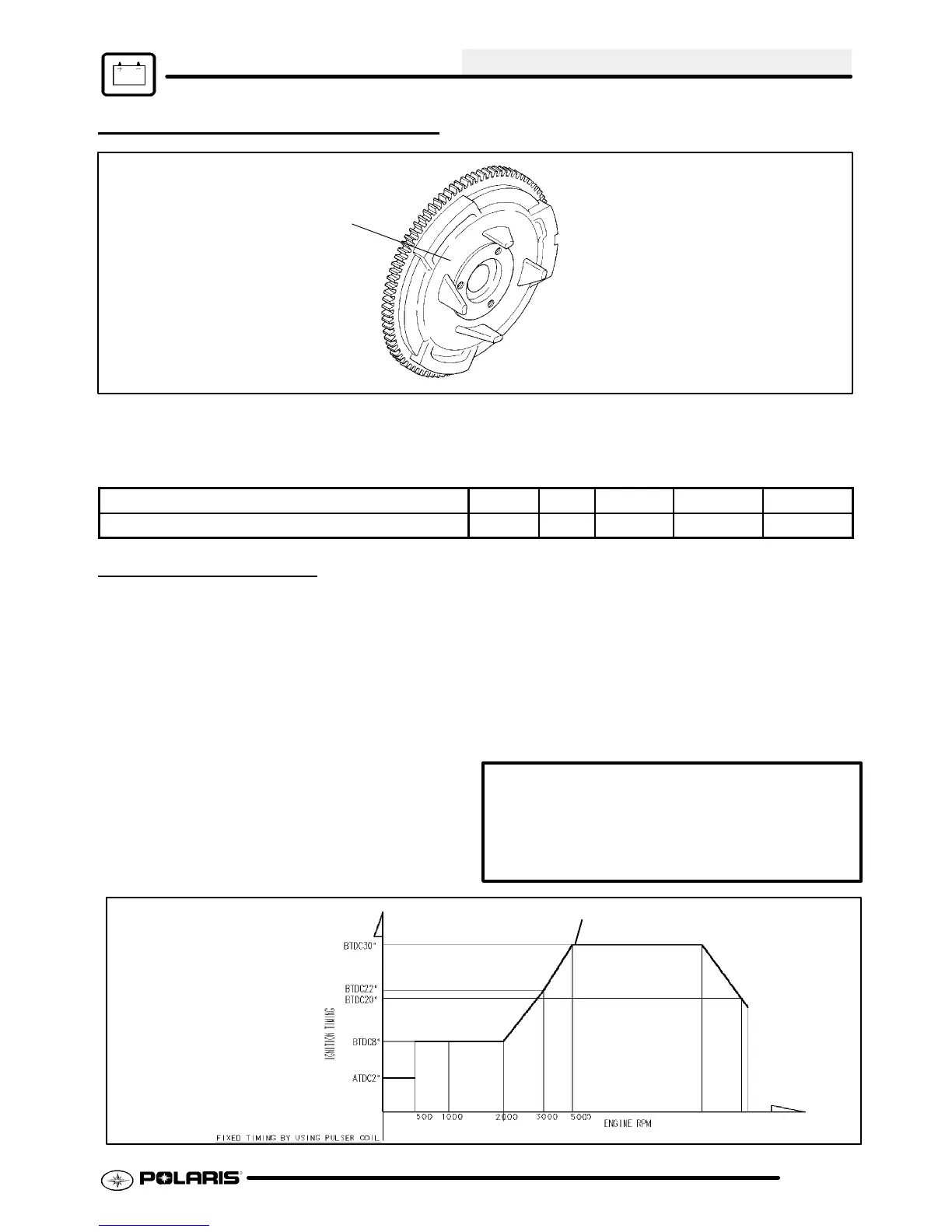

FLYWHEEL IDENTIFICATION
A
Flywheel Iden tificatio n Stamp Location
The flywheel can be identified by the stamp mark in location A. Refer to “I.D.” location in chart below. Do not
use the cast mark to determine flywheel application.
Engine Application
Type Cast Stamp Comment I.D. Stamp
Scrambler 500 -- EH500PLE N/A N/A N/A 240W N/A
DC / CDI IGNITION
The Scrambler has incorporatedinto it’s design aDC/
CDI ignition system.
Some of the advantages of DC ignition are:
GStronger, more consistent spark at low
rpm for better performance
GEasier starts
GSimpler component design for ease of
trouble shooting and maintenance
Operation Overview:
The DC/CDI system relies on ba ttery power for ign ition .
Instead of generating DC voltage via magnetic
induction, a 12 volt DC current is supplied directly to the
CDI unit from the battery .
At the CDI, 12 volt DC current charges an internal
capacitortobuild up the initialignition charge. Asmall
A/C signal from the Trigger (Pulse) coil closes a
thyristor (located in the CDI) at a point
pre--determined in the crankshaft rotation. by
magnetson the flywheel’ s outer diameter. Thissignal
releases the electricalcharge whichsaturates thecoil
for ignition. DC/CDI systems have the ability to ignite
with as little as 6 volts of power .
NOTICE: Do not remove the wiring
harness from the CDI box while the key
switch is on or while the engine is
running. Damage to the CDI box may
occur.
Maximum Timing
NOTE:
DC/CDI systems and compo-
nents are not interc hangeable
with any other system.
T ypical Timing Curve Shown
To Next Page
