Integrators’ Reference Manual for ViewStation EX, ViewStation FX, and VS4000
80 www.polycom.com
NT-1 Device
The Quad BRI network interface module requires an S/T interface.
If your site does not use an internal telephone system (PBX), you
must connect the Quad BRI module to the ISDN line(s) through a
network termination (NT-1) device, which provides the S/T
interface.
Cables Used with the Quad BRI Network Interface Module
The network cables are standard CAT5 cables. If you are connecting
to a PBX, you may need a crossover cable.
Installation
To connect the Quad BRI network interface module to the
system:
1. Make sure your system is turned off.
2. Connect the peripheral side of the Quad BRI network interface
module to the system using the supplied network interface
cable. This cable is color-coded blue on one end, green on the
other.

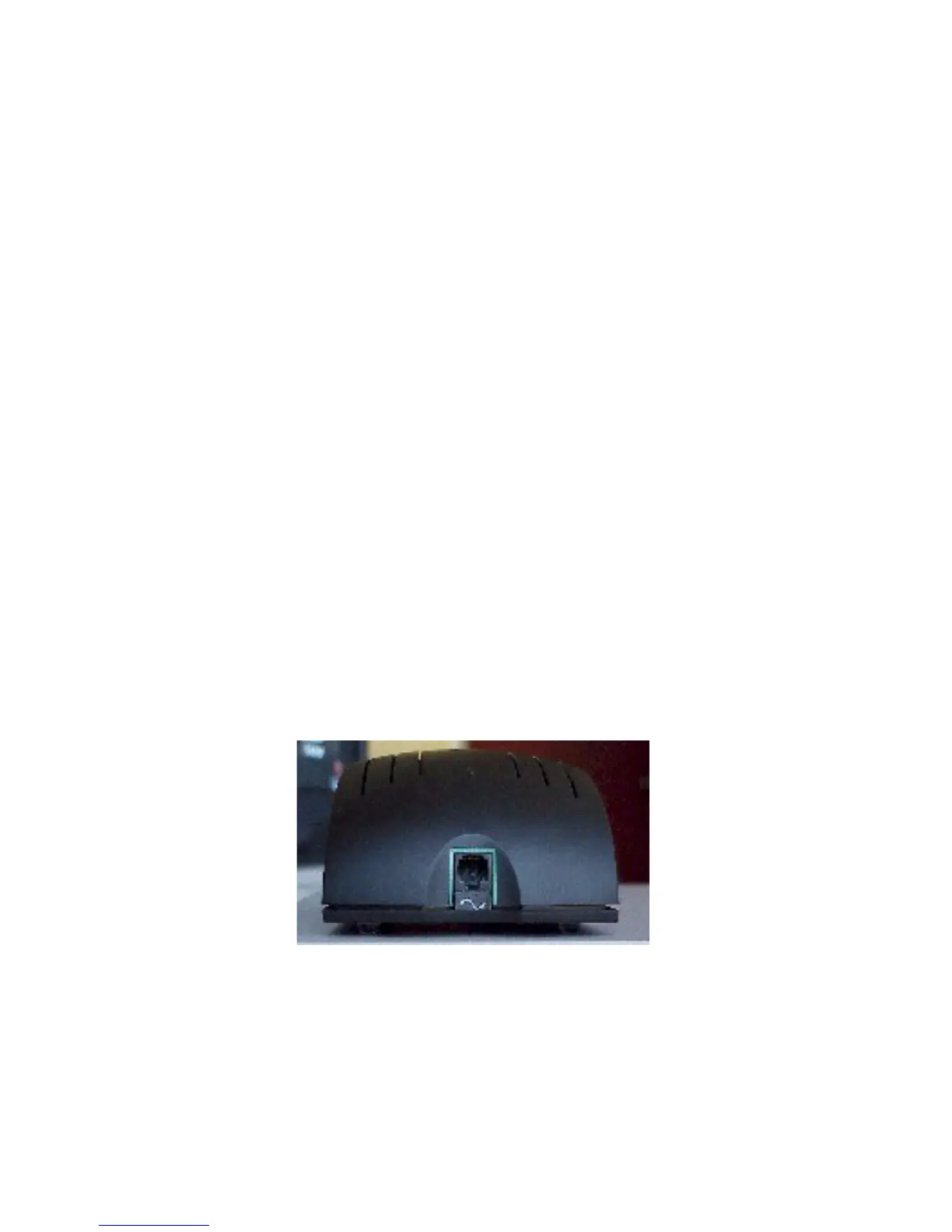

Figure 4-3. Quad BRI Network Interface Module (Peripheral Side)

Polycom SoundStation2 EX, FX, VS4000 Specifications

General

Device Type	Conference phone
Microphone Pickup Range	360 degrees
Display	Backlit LCD
Echo Cancellation	Yes
Power Source	AC power adapter
Connectivity	Analog phone line
