Installation
To install V.35/RS-449/RS-530 Network Interface Module:
1. Make sure the system is turned off.
2. Connect the peripheral side of the network interface module to
the system. Refer to Figure 4-7.

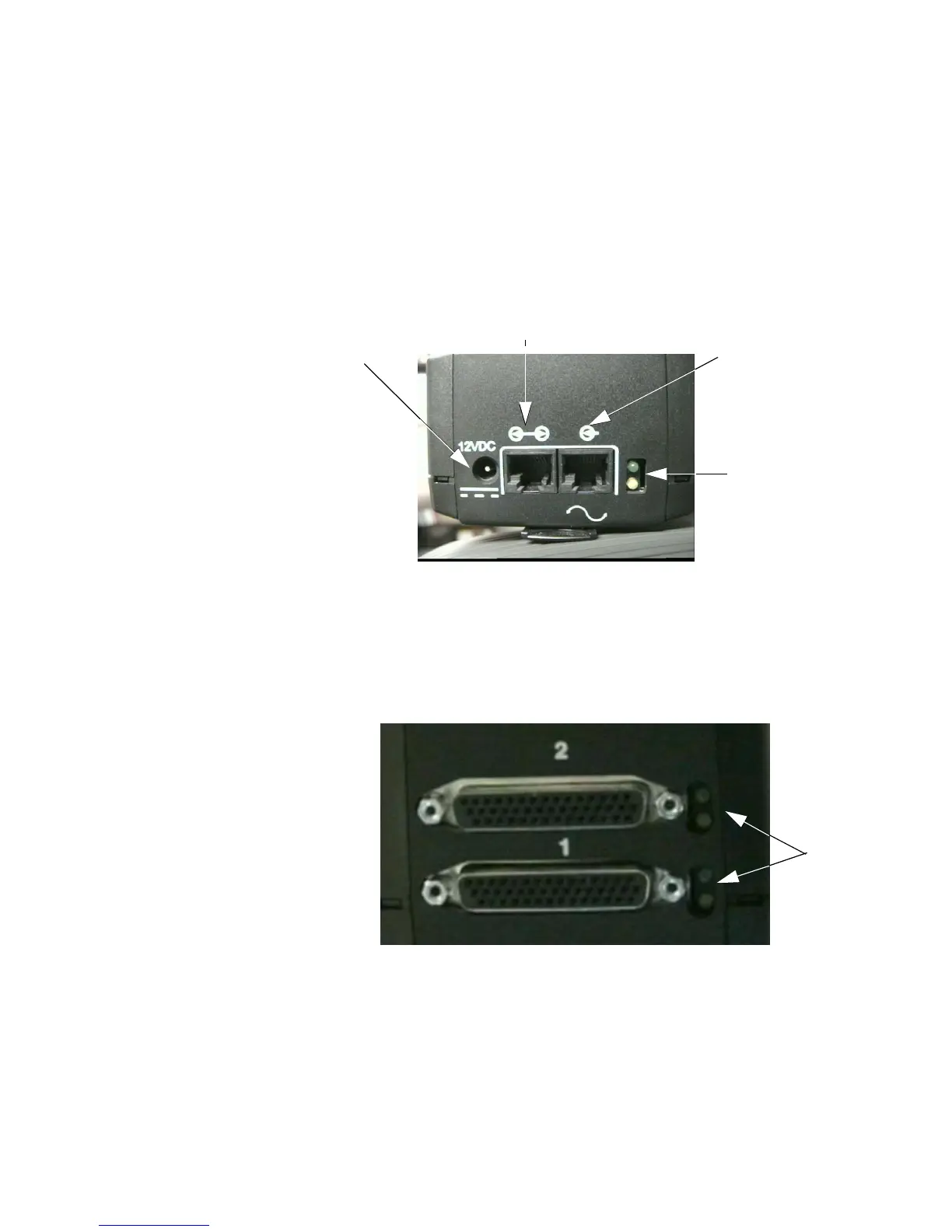

Figure 4-7. V.35/RS-449/RS-530 Network Interface Module (Peripheral
Side)
3. Connect the network side of the network interface module to
the DCE, shown in Figure 4-8 below. If you have only one cable,
connect it to port 1.
Figure 4-8. V.35/RS-449/RS-530 Network Interface Module (Network Side)
12 VDC Connector
(not used)
Port (not used)
Input Port
LEDs
LED
s
