Installation
To install the PRI network interface module:
1. Ensure that the system is powered off.
2. Connect peripheral side of the PRI network interface module to
the system using the supplied cable. Figure 4-5 shows the
peripheral side of the PRI network interface module.

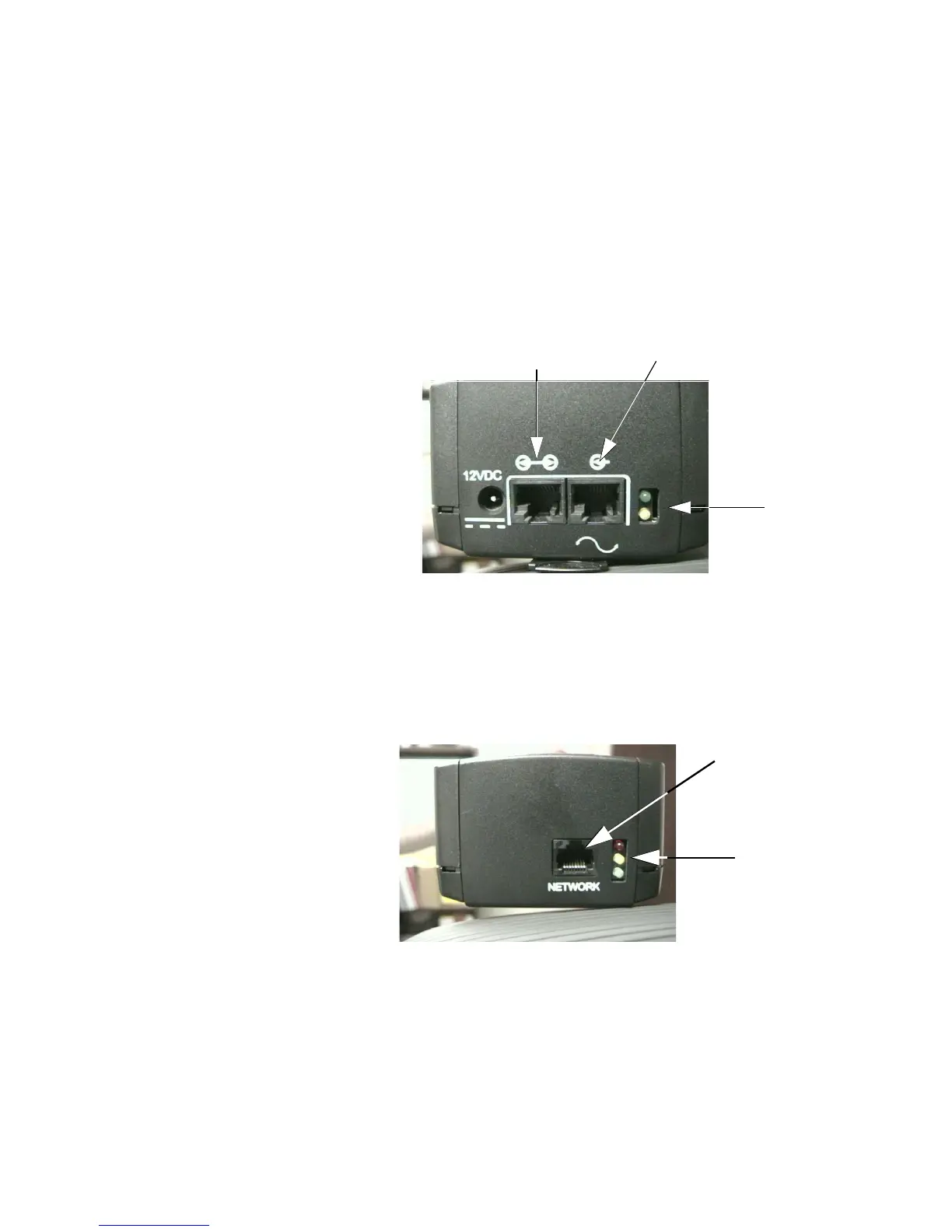

Figure 4-5. PRI Network Interface Module (Peripheral Side)
3. Connect the 12-volt DC power supply to the PRI network
interface module and then to the UPS or wall outlet.
4. Connect the PRI network interface module to the ISDN
network.
Figure 4-6. PRI Network Interface Module (Network Side)
You are now ready to power on and configure the system.
Port
(not used)
Input Port
LEDs
Network
Connector
LEDs
