Polycom Vortex EF2211 User Manual

Queries using the '?' character are straightforward. For example, ' S04GAINI1? ' might return '
S04GAINI110 ', while ' S04GAINI*? ' might return ' S04GAINI*Äää '.
6.4. Matrix Commands
Matrix commands are used for controlling parameters that exist at the crosspoints of the mixing
matrices. Typical parameters include gain and mute. Before describing the matrix commands, it is

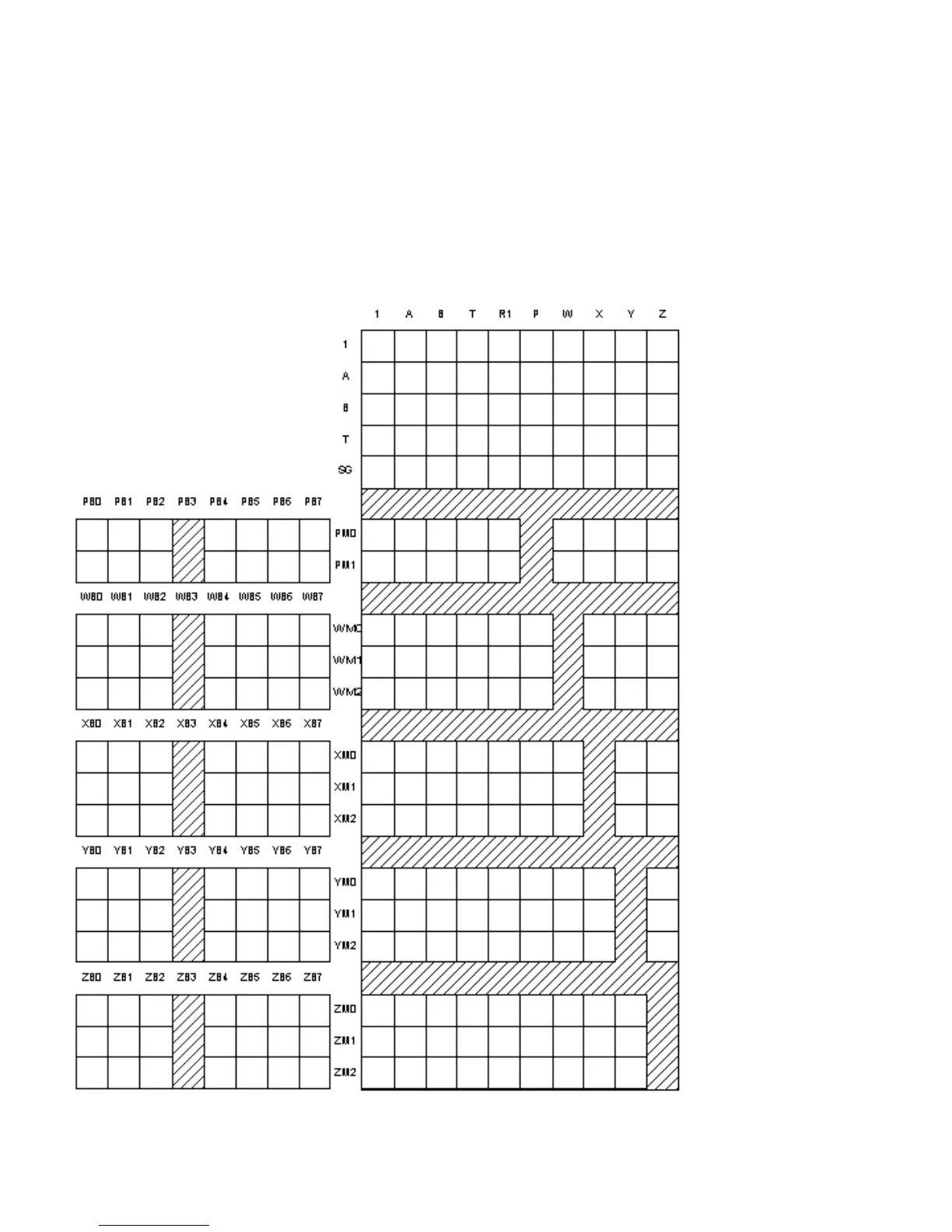

necessary to give a description of the matrices involved. During the following discussion, it will be
helpful to refer to the figure below, which shows all the matrices with their input and output labels.
The EF2211 has three analog outputs labeled 1, A, and B. These outputs are all at line level. There
are two additional outputs: the output to the telephone interface, labeled T, and the output to the
power amplifier. The output to the power amplifier does not have a separate output in the matrix, it is

Polycom Vortex EF2211 Specifications

Power

input voltage	110-240 VAC
frequency	47-63 Hz
power consumption	25 W
phantom power	24 V

Connectors

RS-232	DB9F
EF Bus In/Out	RJ45
Telephone Line/Set	RJ11
Control/Status	DB25F
Audio	3.5mm quick connect terminal blocks

Audio Specifications

microphone input	-30 dBu to +0 dBu
line inputs	-20 dBu to +0 dBu
line outputs	-20 dBu to +0 dBu
loudspeaker output	10 W, 4-16 Ohms
input impedance	10 k Ohms
output impedance	50 Ohms
headroom	20 dB
signal to noise ratio	85 dB
frequency response	20 Hz - 22 kHz

Echo and Noise Cancellation

total cancellation	65 dB
convergence rate	40 dB/second
noise cancellation	0-15 dB
echo cancellation	40 dB, total >65 dB
convergence	30 dB/second
cancellation span	32 ms
acoustic echo cancellation span	270 ms

Operating Environment

operating temperature	0 °C - 40 °C
status outputs	5 V, 20 mA each

Weight and Dimensions

width	483 mm
length	244 mm
height	45 mm
weight	1.8 kg
shipping weight	2.5 kg
