3-10
3 First Steps
Generator board
The connections of the Spectrum M2i.6030 generator board are shown in the
following figure.

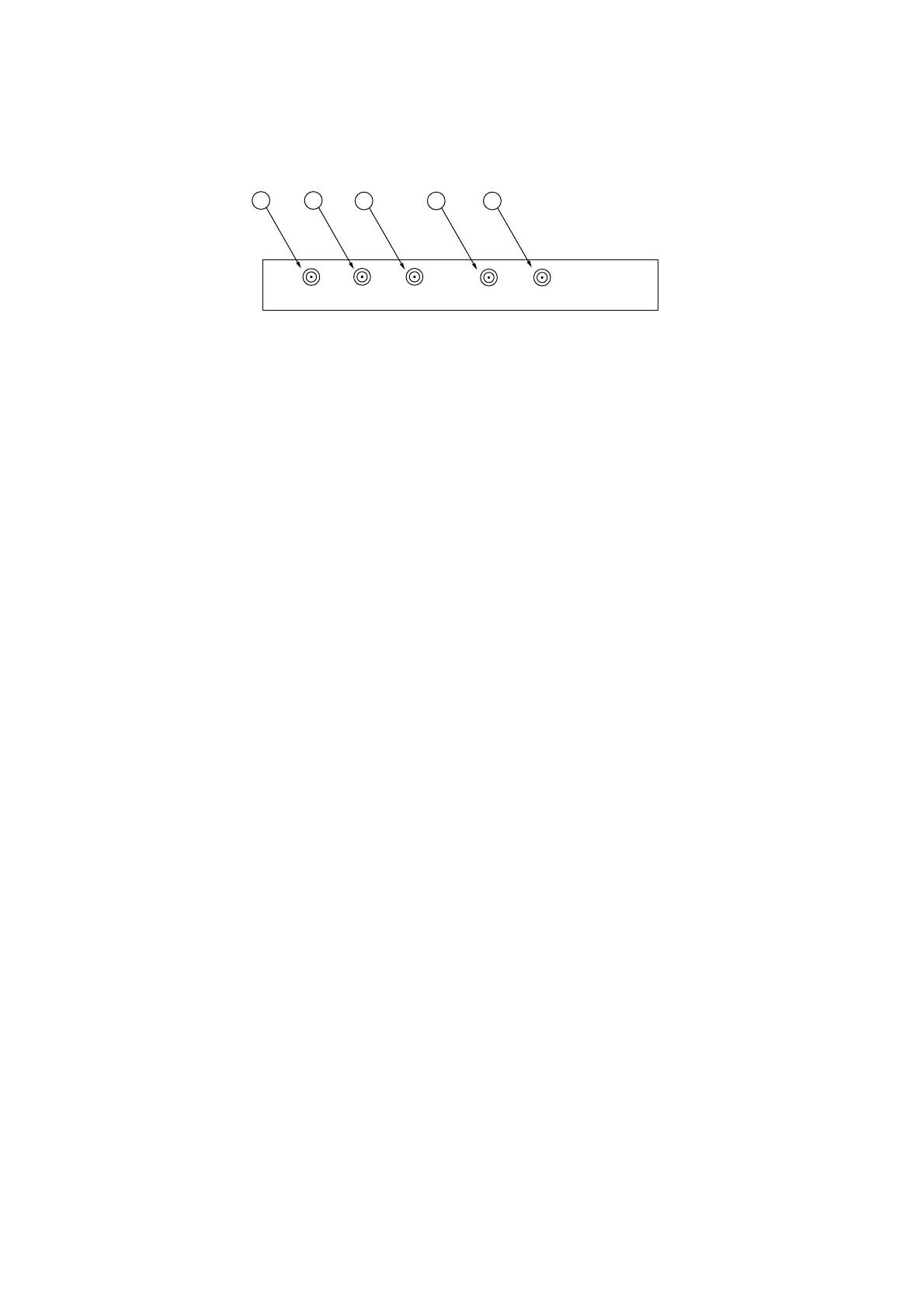

Figure 3.7: View of the generator board
1Ck
clock input (SMB jack)
Input for the clock signal (Clock) to synchronize the generator board with the data
acquisition board
2Trg
signal input (SMB jack)
Input is not used!
3D1
pulse output (SMB jack)
Output is not used!
4D0
pulse output (SMB jack)
Synchronization pulse for the signal of the function generator
5Ch0
signal output (SMB jack)
Signal output of the function generator
Ck
Trg
D 0
Ch 0
3
4
1
2
D 1
5
