Polytec PSV-500 User Manual

7-13
7 Technical Specifications
Signal Level Depending on Surface and Stand-Off Distance

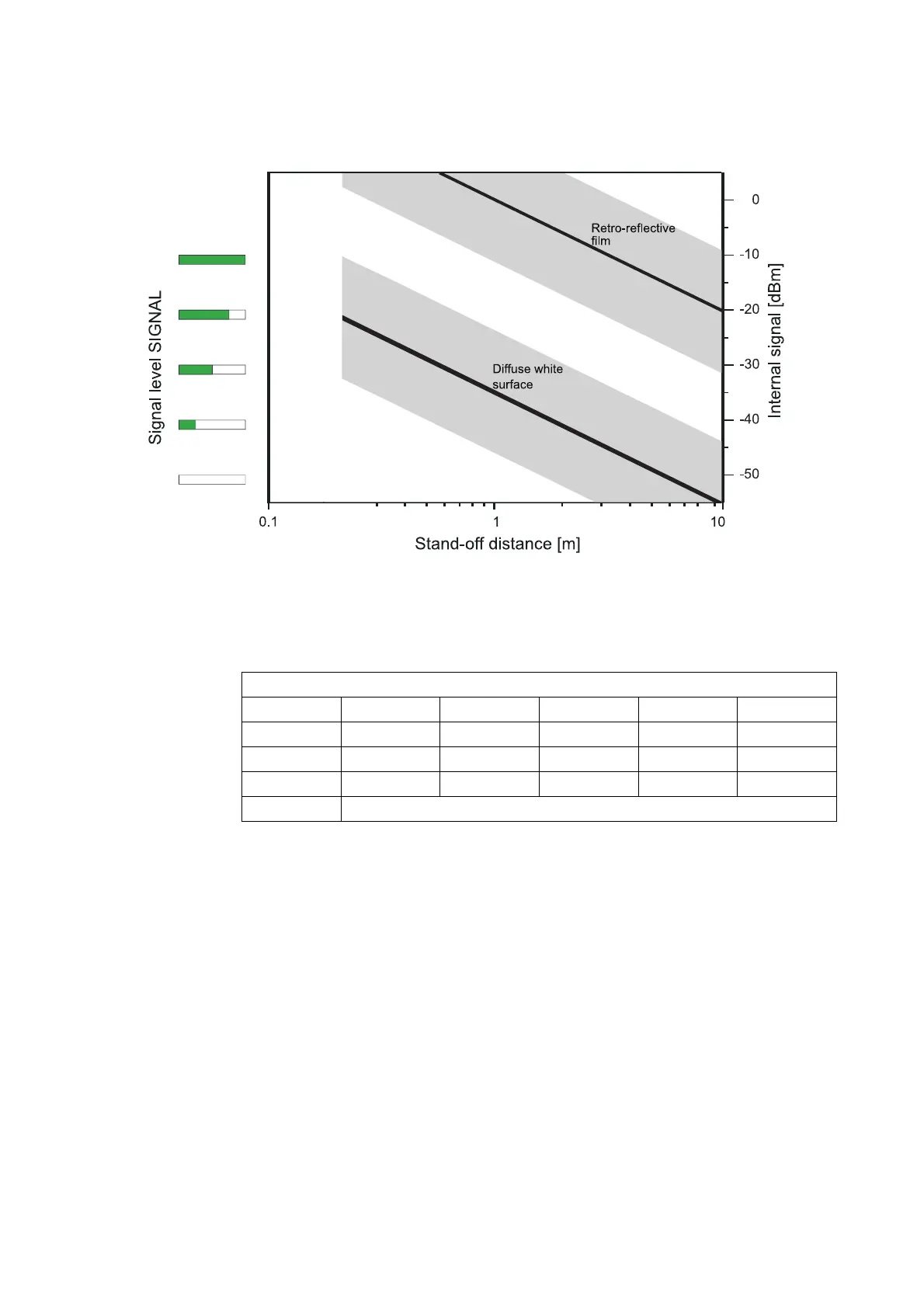

Figure 7.3: Typical signal level range depending on the stand-off distance measured on a diffuse white surface
and 3M Scotchlite™ Tape (retro-reflective film)
Table of the Visibility Maxima
7.5.3 Scanner
Visibility maxima (mm) for l = 204mm
141 345 549 753 957 1161
1365 1569 1773 1977 2181 2385
2589 2793 2997 3 201 3405 3609
3813 4017 4221 4 425 4629 4833
5037 Add for every additional visibility maximum 204mm.
Type: Servo-controlled Galvo scanner
Maximum deflection: Horizontal: ±25°
Vertical: ± 20°
Angular resolution: 16-Bit
Point stability: < 0.001°/hour (after 2h warm-up period, with
constant ambient temperature)

Polytec PSV-500 Specifications
