Polytec PSV-500 User Manual

3-24
3 First Steps
3.5.2 Connecting the Signals (M System)
Reference
signal
1. Connect up the reference signal to the REF1 BNC jack on the front of the
junction box.
2. If required, you can connect up to two additional reference signals to the
REF2 to REF3 BNC jacks on the front of the junction box.
External trigger 3. If required, connect the external trigger signal to the TRIG IN BNC jack on
the front of the junction box.
Function
generator
4. The signal from the function generator is available at the SIGNAL BNC
jack on the front of the junction box.
5. The synchronization pulse of the generator signal is available at the
SYNC BNC jack on the front of the junction box.

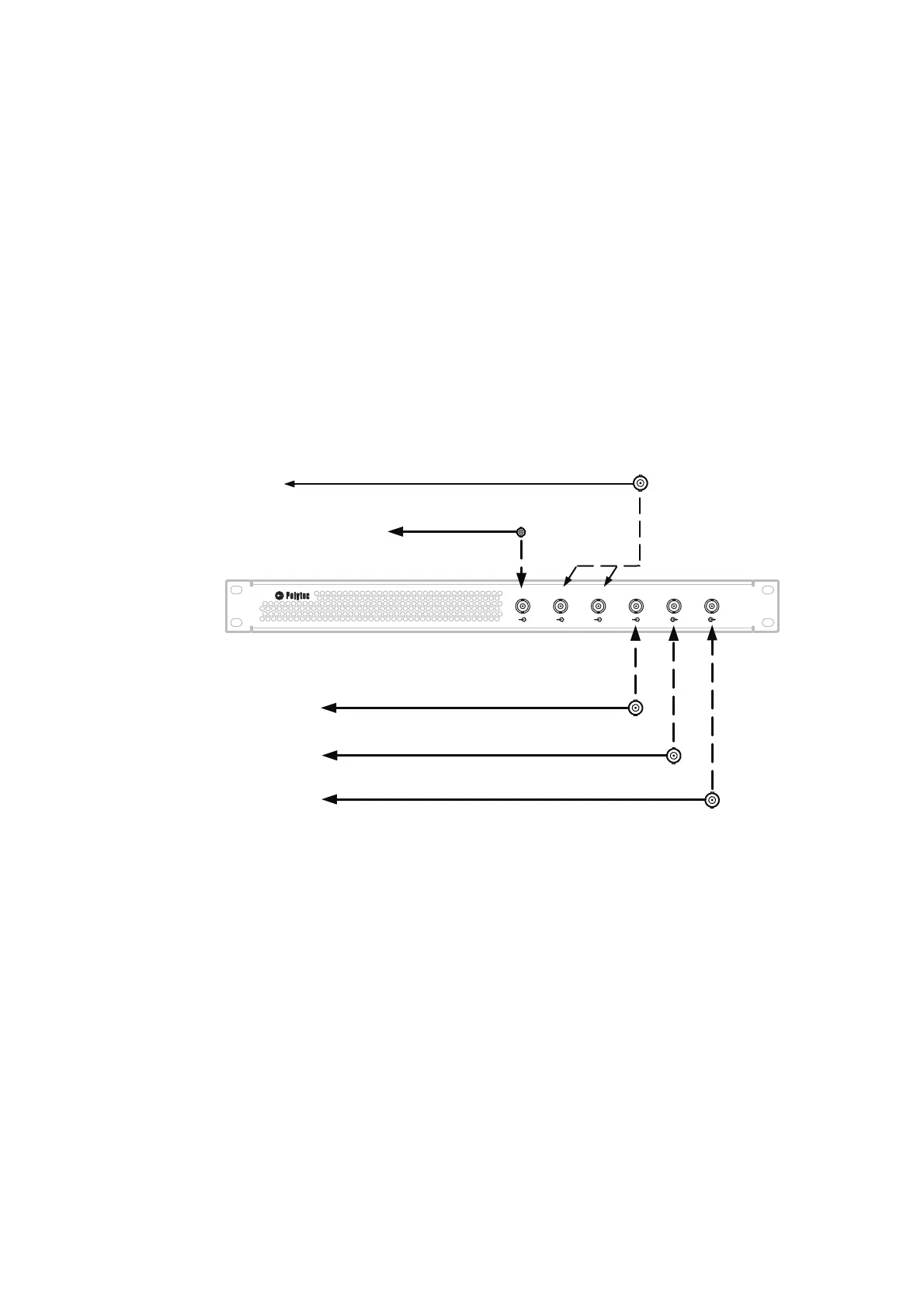

Figure 3.16: Cabling of the junction box
REF 1
REF 2
REF 3
TRIG IN
SYNC
SIGNAL
SYNC PULSE
EXTERNAL TRIGGER
GENERATOR SIGNAL
REFERENCE SIGNAL
ADDITIONAL REFERENCE SIGNALS
PSV-E-530 JUNCTION BOX
