4-6
4 Making Measurements
Stand-off
distance
The stand-off distance is measured from the front of the scanning head (refer
to the following figure).

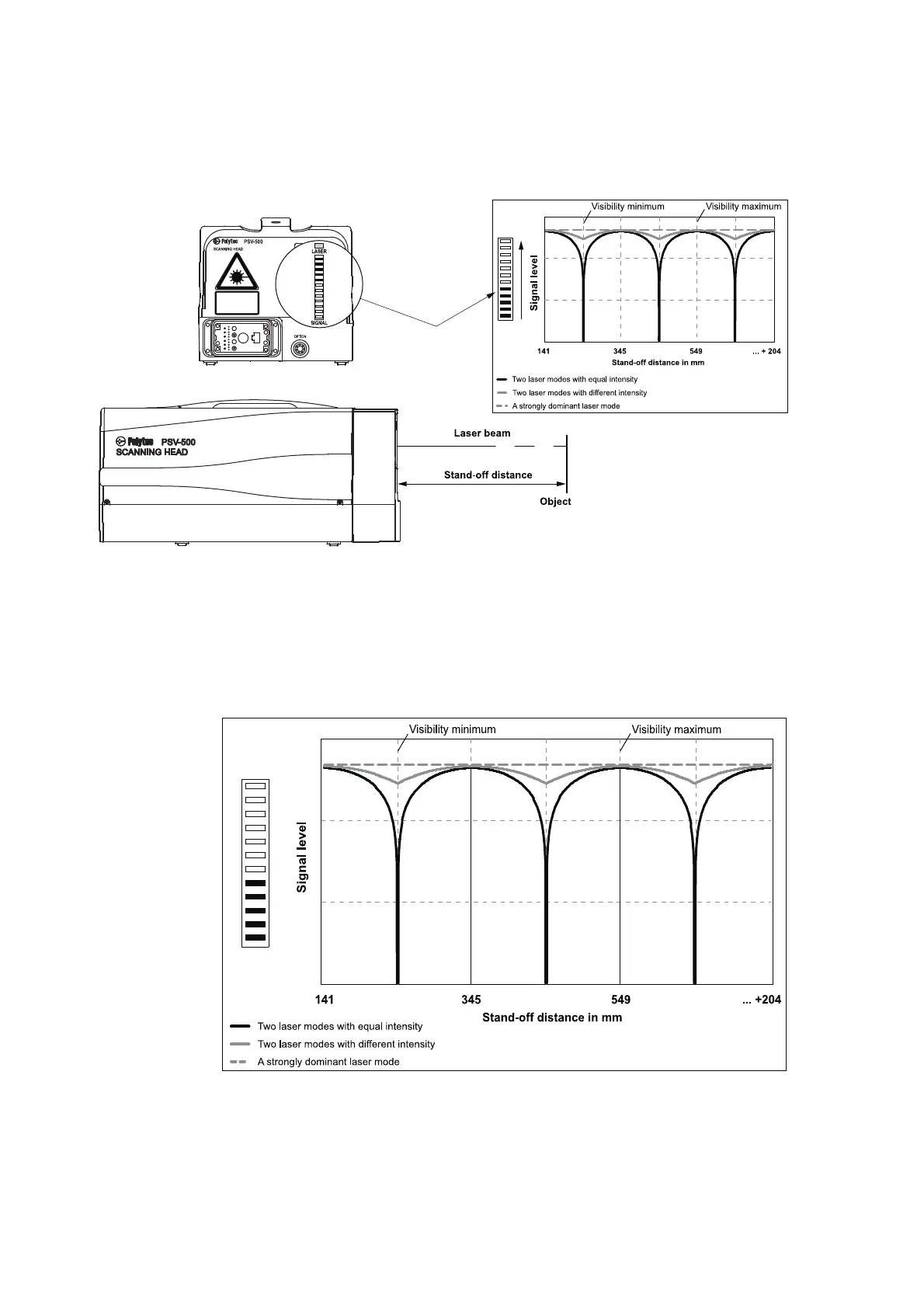

Figure 4.2: Measuring the stand-off distance
4.3.2 Optimal Stand-Off Distances
The relation between stand-off distance and signal level is shown in the
following figure. The optimal stand-off distances are marked as visibility
maximum.
Figure 4.3: Relation between stand-off distance and signal level
