A-28
A Optional Accessories
A.7.2 Assembly
For transport, the protective window is protected by a protective cover on the
front side and with a plastic plate on the back side. To mount the protective
window, proceed as follows:
1. Remove the plastic plate from the back of the protective window by
undoing the two knurled screws (refer to the following figure, picture 1).
Keep the plastic plate in a safe place.
2. Fix the protective window on the front of the scanning head using the two
knurled screws (refer to the following figure, picture 2).
CAUTION!
Damage caused by too strongly tightening ! Only tighten the screws until they can not
undo themselves.
3. Remove the protective cover from the front of the protective window by
undoing the knurled screws (refer to the following figure, picture 3). Keep
the protective cover in a safe place.

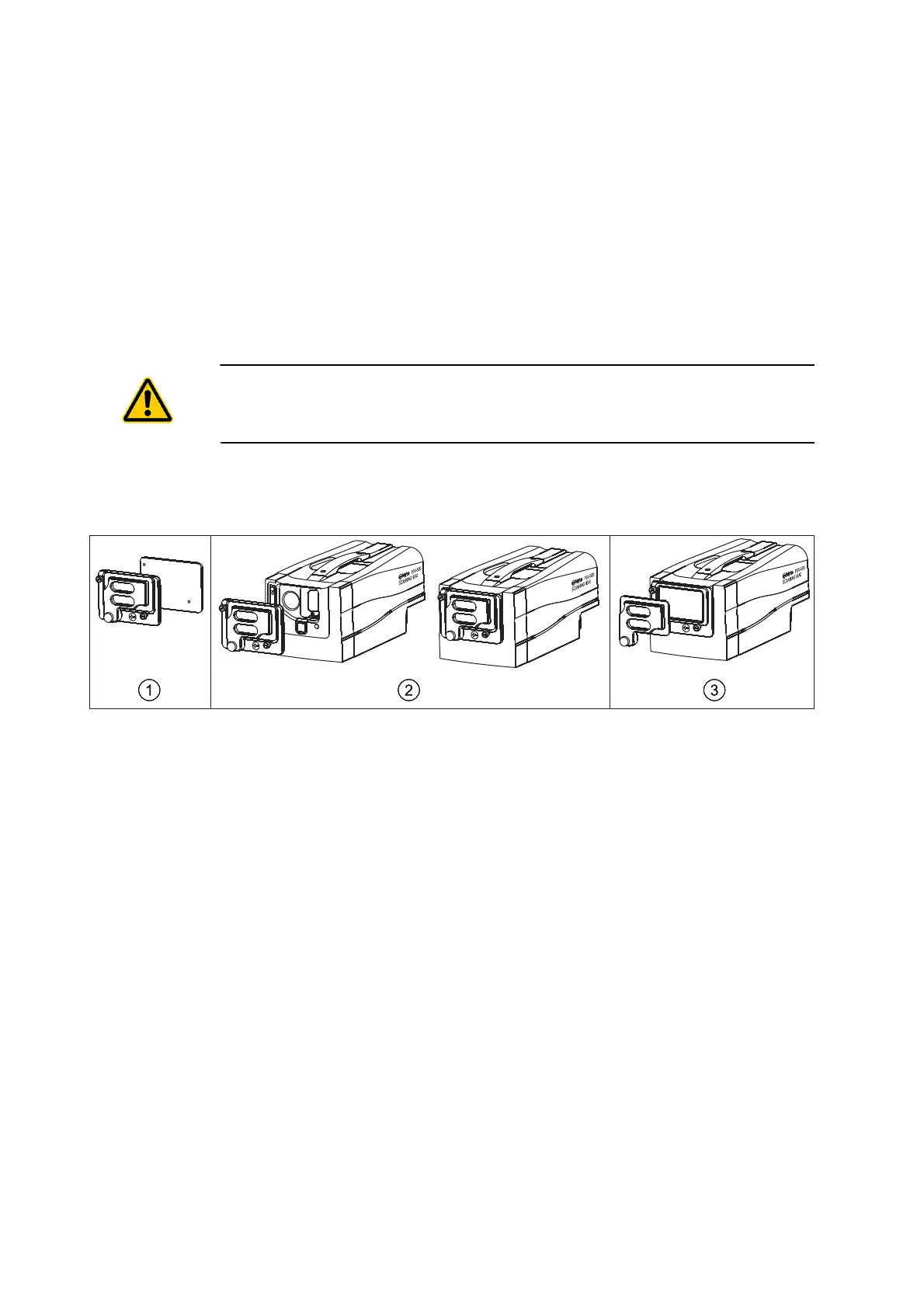

Figure A.20: Assembly of the protective window
A.7.3 Technical Specifications
Dimensions (w x h x d): 145mm x 107mm x 22mm
Weight: 0.285kg (without plastic plate and protective
cover)
Max. scanning angle in y-direction:±15°
Max. scanning angle in x-direction:±15°
Stand-off distances: from 0.5m to 2m
