Tension Controller
PR-DTC-4100.A / AD
1) In automatic or manual mode, when pressing [Preset button] on front panel longer, it starts to enter shaft switch
mode.
2) During waiting time, a shaft which will be switched generates waiting output, LED on the upper of button
flickers. After completing shaft switch, previous shaft generates waiting output during finish time and LED on the
upper of button flickers again.
3) In addition, it is possible to switch shaft using digital input contact point or communication.
5. A, B Output switch
※This A, B output switch function is available only for PR-DTC-4100.AD. Please be reminded.
※ When switching A, B control shaft, it may need waiting time and waiting output. Please check in advance if the
setting is well.
0.0kg
0.0kg
0.0mpm 100.0mm
T
CHANGE
5.0
5.8%
~
PRESET
B
A
PRESET
B
A

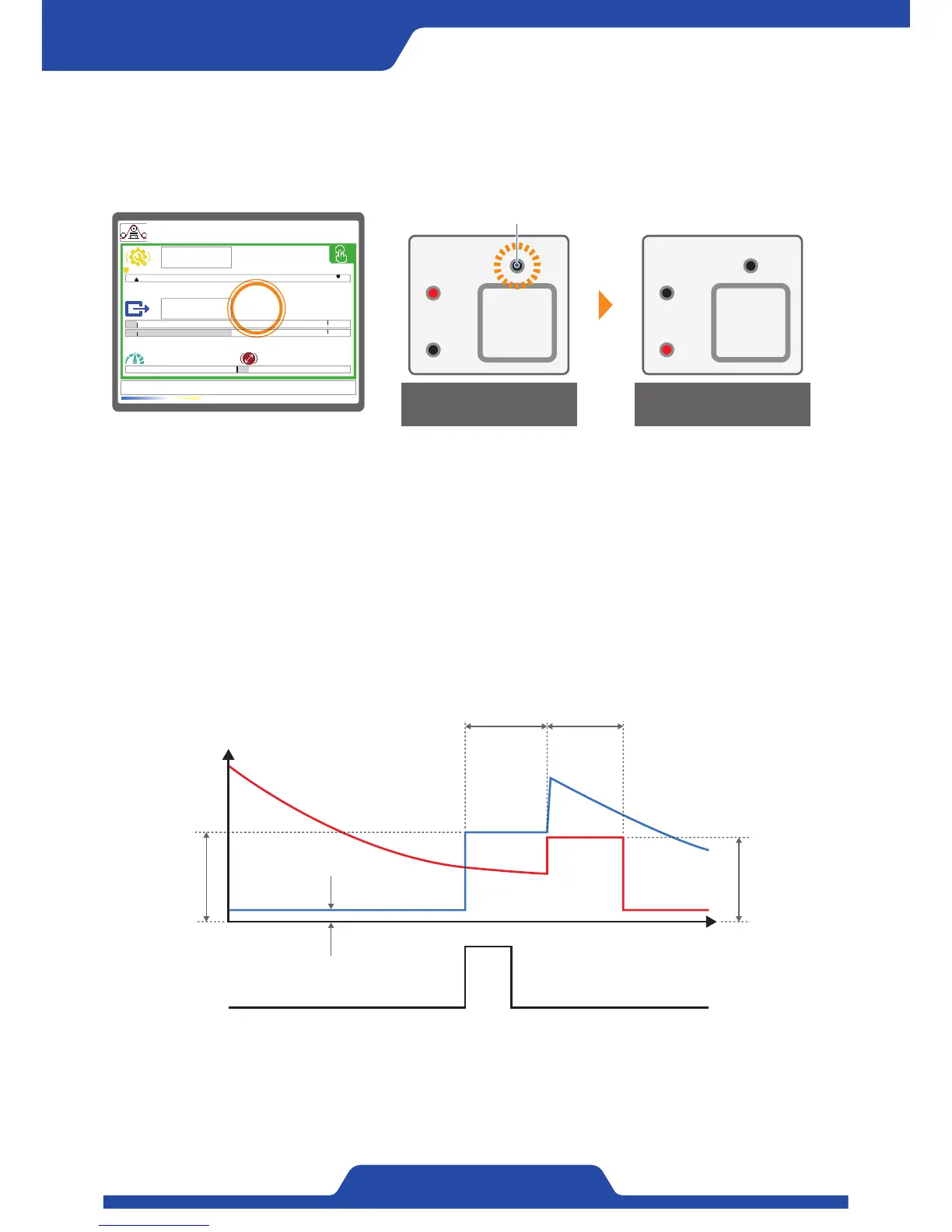

LED flickered during the time of output switch
In the middle of shaft
switching A-> B control
Complete to switch
B control shaft
[B] Waiting
output
Excitation voltage
Waiting time
of shaft switch
Finish time
of shaft switch
PRESET ON OFF
B
A
[A] Waiting
output
