14. USER SET
It is able to set the items related to the rest function.
1) OUTPUT HOLD: It is to keep the current control output consistently.
Select whether to use this function by detecting
tension change or line speed.
●
Select item: UNUSE, TENSION, LINESPEED
2)
REF. TENSION(% FS): In case of selecting No.1 item to be tension
and when measured tension is lower than set-
up tension, current control output is being kept
for certain times.
- Setting range: 0.0 ~ 100.0
3) REF. SPEED(mpm): In case of selecting No.1 to be line speed and
when measured line speed is lower than set-up
speed, current control output is being kept for
certain times.
- Setting range: 0.0 ~ 1000.0
4) HOLD TIME(sec): It is to set the times when output maintaining
operation is run.
- Setting range: 0.0 ~ 100.0
5) HOLD RATIO(%): It is to set control output ratio while output
maintaining operation is run.
- Setting range: 0.0 ~ 1000.0
6)
EMS TIME(sec): It is to set the times when emergency stop operation
is run. Emergency stop function can be operated by
using external digital input or communication.
- Setting range: 0.0 ~ 100.0
7) EMS RATIO(%): It is to set control output ratio when emergency stop
function is run.
- Setting range: 0.0 ~ 1000.0
8) BUZZER: It is to set whether to use buzzer or not.
●
Select item: UNUSE, USE

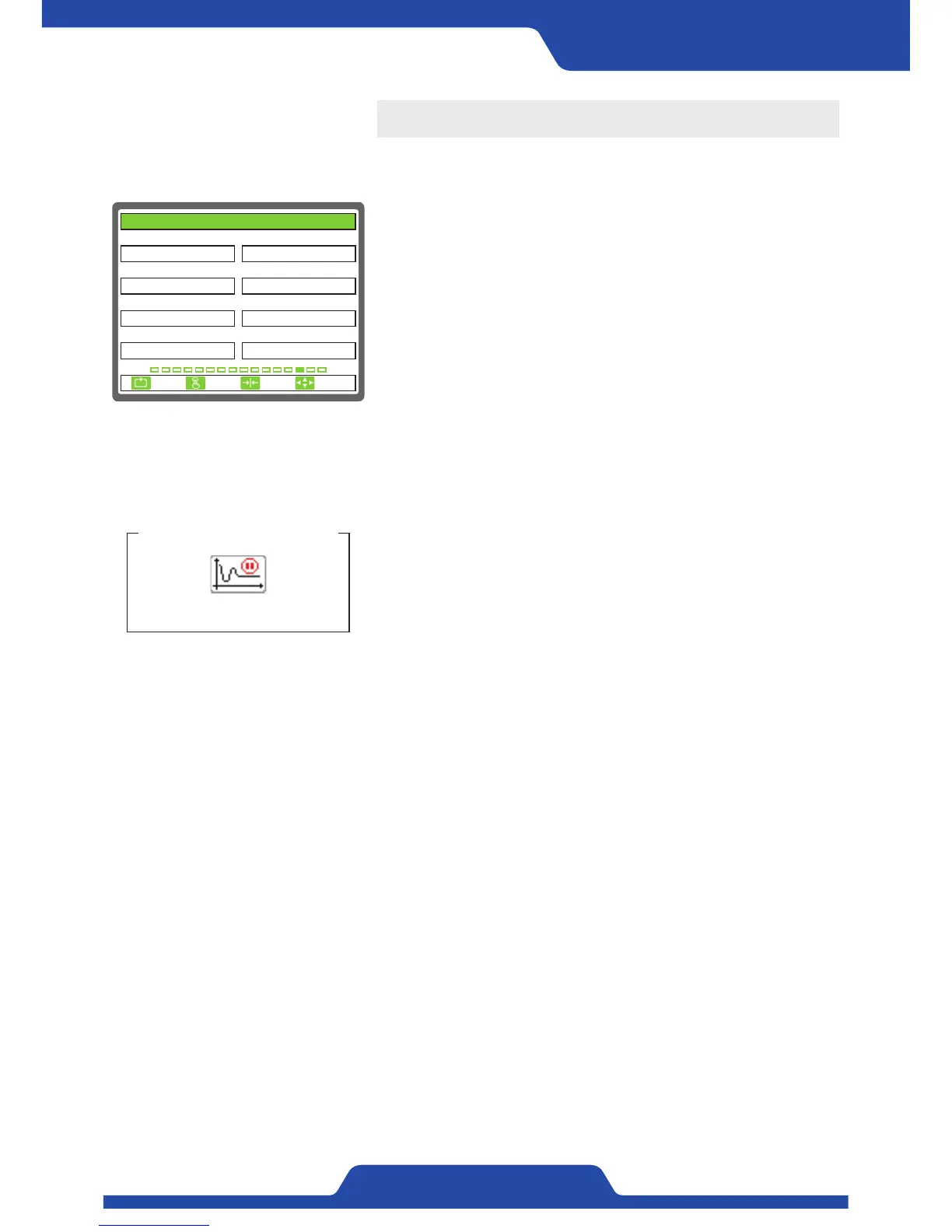

OUTPUT HOLD - Setting
An icon shown on a screen
1. OUTPUT HOLD 2. REF. TENSION(% FS)
3. REF. SPEED(mpm) 4. HOLD TIME(sec)
5. HOLD RATIO(%) 6. EMS TIME(sec)
10.0
UNUSE
3.0100.0
7. EMS RATIO(%)
100.0
8. BUZZER
USE
3.0
10.0
