4.2 Controller
The PowerShield Controller is supplied in a 1U high 19" rack case. The PowerShield Controller can be mounted in a
19" rack, on a wall, shelf, or similar using the mounting brackets provided. Ensure there is safe access to the rear
connector panel and cable tray.
4.2.1 Power Supply
The PowerShield Controller is available in AC input or DC input models.
The
AC input model has a standard 3-pin male IEC 60320 C14 appliance inlet.
The D
C input models have a male 3-pin input socket and are supplied with a mating female screw terminal plug.
• Both AC and DC models must be installed by a service person and connected to a socket outlet or fixed
wiring with a protective earth conductor or connector.
• A readily available disconnect device shall be incorporated in the building wiring or the socket outlet near
the PowerShield Controller that is readily accessible.
• The power source for the DC models must be fused with a circuit breaker of no greater than 20A rating.
The connection must be installed in a service access area.
• To ensure that the system operates during a power failure, it is recommended that the PowerShield
Controller is powered by a battery backed supply that has sufficient backup time.
4.2.2 Front and Rear Panels
The front and rear panels of the PowerShield Controller are shown below.
Refer to Appendix 1 for a description of the front and rear panel features. Refer to Appendix 2 for a description of the
front panel LED behaviour.

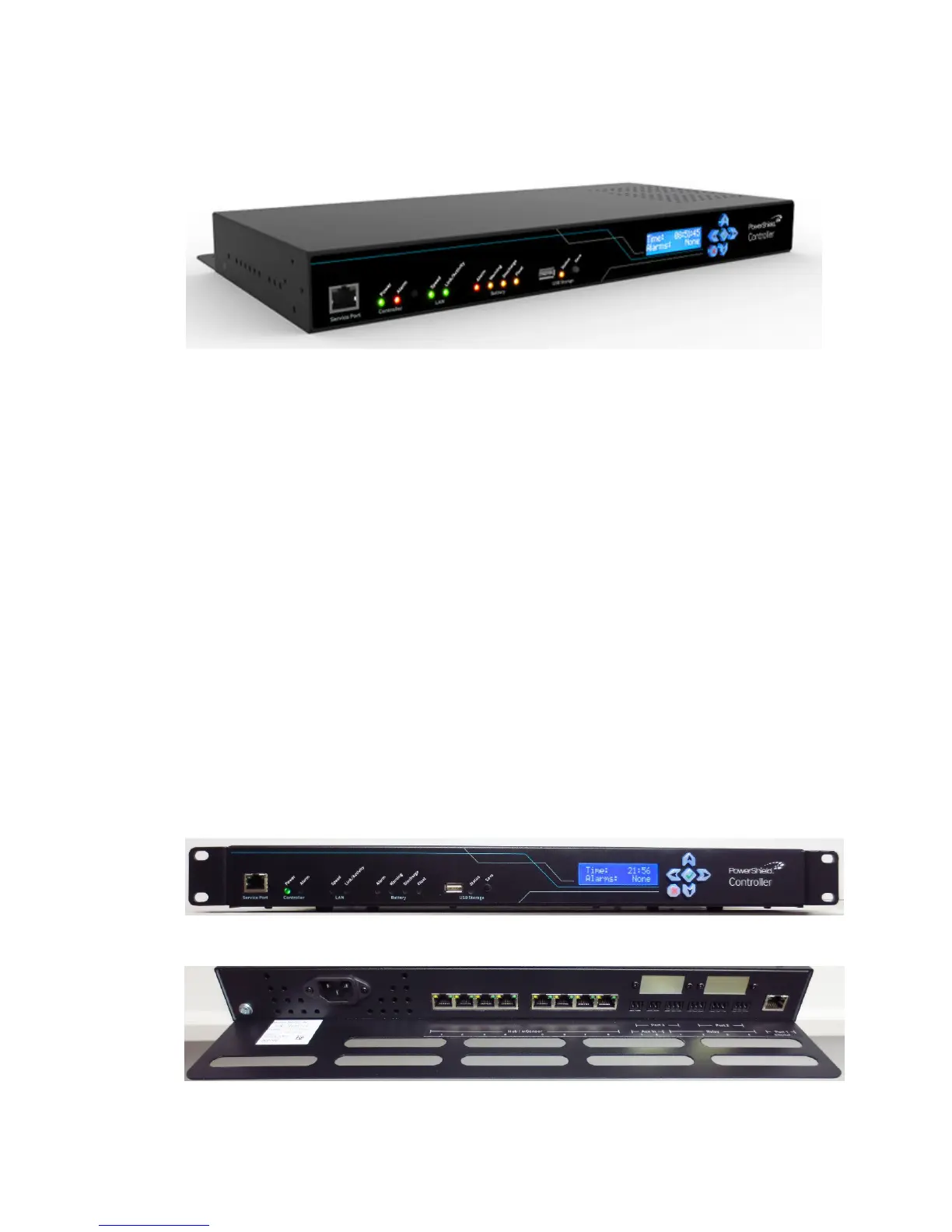

PowerShield Controller Front Panel
PowerShield Controller Rear Panel
