Part Number 6300-095D Page 18 of 43
5.8 Connect BBus Cables

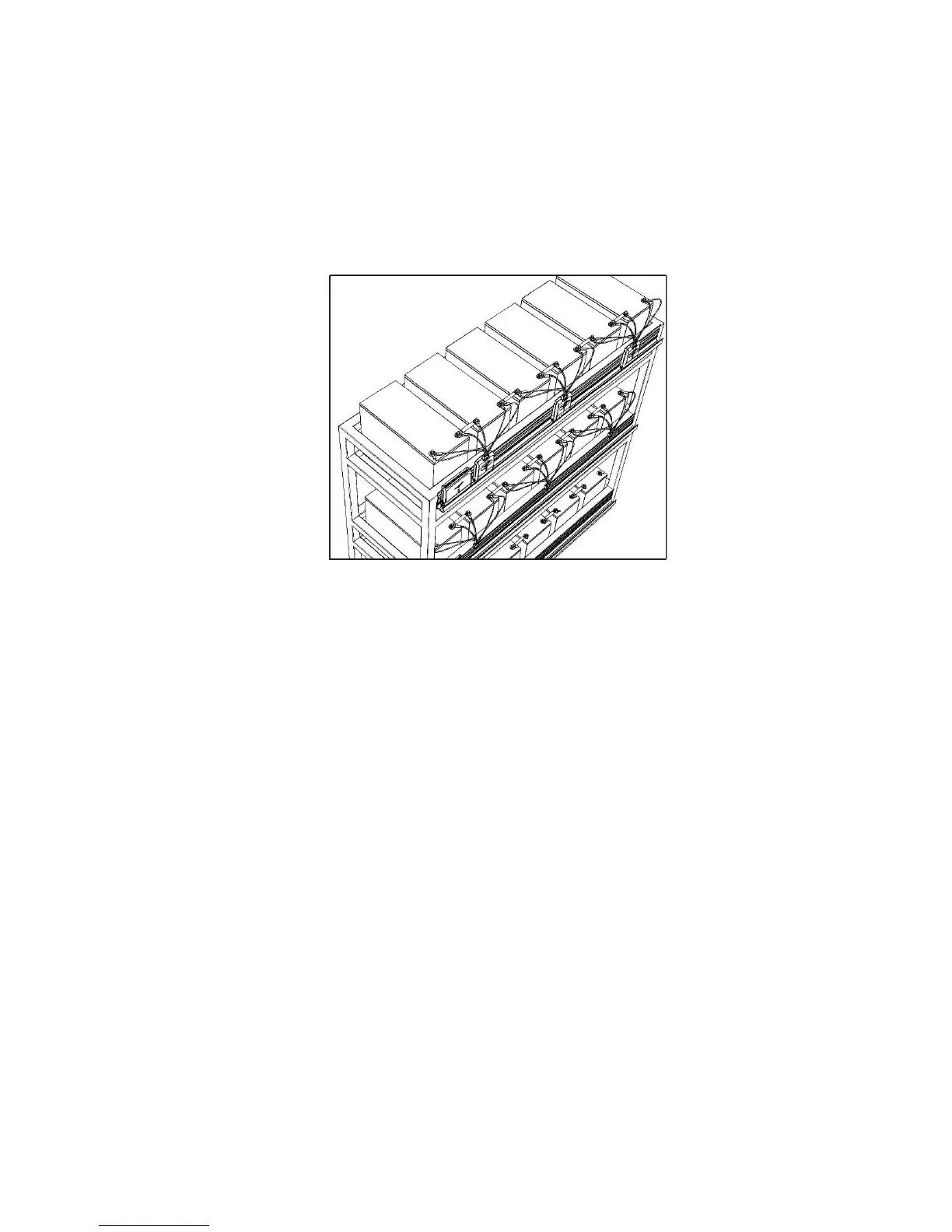

Connect the mSensors and Hub using suitable lengths of BBus interconnecting cables in a daisy chain fashion. Note
that each PowerShield Controller hub port must not have more than 33 devices connected to it (1 Hub and up to 32
mSensors). In addition, the IDs of all devices on a single hub port must be different. The same IDs can be used on
other hub ports.
For strings with a high number of blocks and mSensors, mSensors can be connected directly to additional PowerShield
Controller hub ports using a CAT5-to-BBus adaptor which is available from PowerShield.
The mSensor LEDs should flash orange if all is correct. A full list of mSensor LED states is available in Appendix 2.
