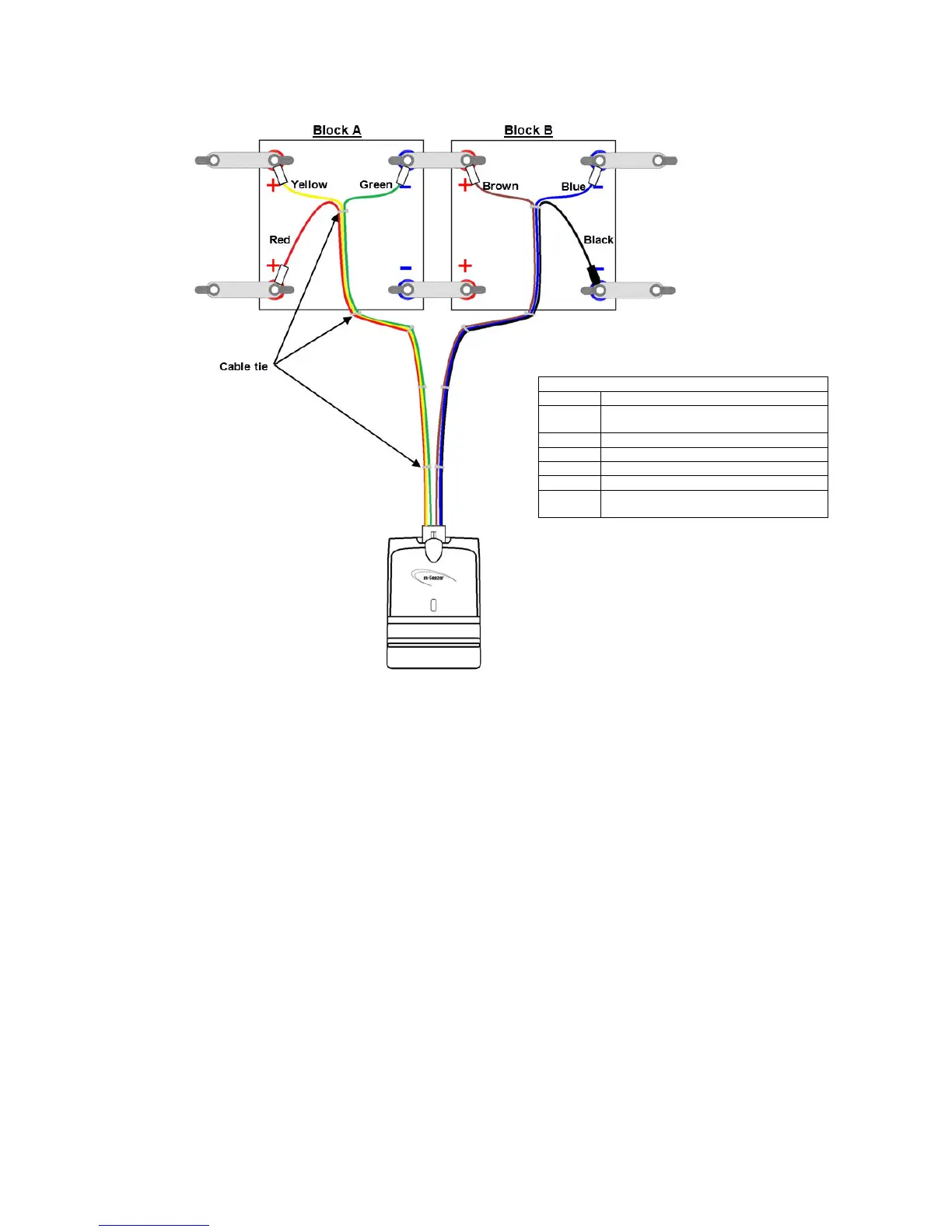

Dual mSensor and Blocks with 4 Terminals
Red Positive Power wire for sensor.
Connect to positive terminal of Block A.
Yellow Positive Sense wire for Block A.
Green Negative Sense wire for Block A.
Brown Positive Sense wire for Block B.
Blue Negative Sense wire for Block B.
Black Power return wire for sensor.
Connect to negative terminal of Block B.
Please note the following important points:
• The power lead is manufactured with cable ties in order to keep the Sense wire pairs and the Power wires
closely coupled.
• Try to keep the Sense wire pairs and Power wires closely coupled as much as possible.
• Where possible, do not remove the cable ties.
• The cable ties nearest the block terminals may be need to be repositioned to allow the wires to be
connected to the block terminals.
• Do not connect the Red and Black Power wires to the same terminals as the Yellow and Blue Sense wires.
• Do not connect the Green and Brown Sense wires to the terminal of one block. Connect them to the
positive and negative terminals of the respective blocks.
