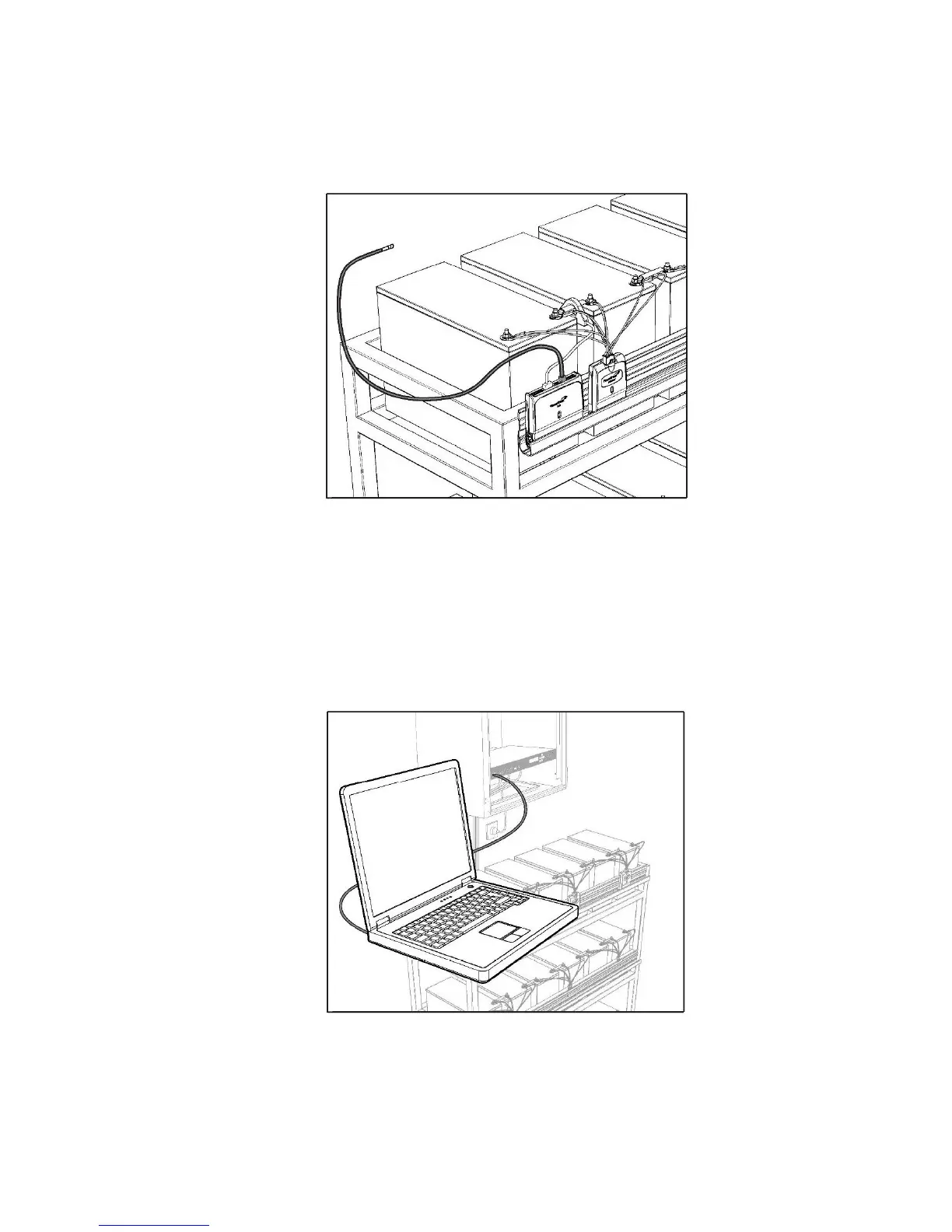

5.10 Connect Ambient Temperature Probe(s)
Up to two ambient temperature sensors can be used with each Hub to measure local ambient temperature(s).
Secure the ambient temperature sensor(s) in appropriate locations in or around the battery rack or cabinet but be aware
of other factors that may affect the local environment such as HVAC, fans or other devices.
5.11 Confirmation and Configuration
Check that all installed parts are performing as expected and secure all cables with appropriate strain relief.
Complete the forms as in Appendix 12, connect to the Service Port Ethernet connector on the front of the PowerShield
Controller and configure the system.
Refer to the PowerShield Controller User Manual (part number 6300-103) for more details on configuring the system.
NOTE: All Hub and mSensor LEDs should flash green if the system is installed and configured correctly.
