Part Number 6300-095D Page 35 of 43
Appendix 8 – DC Model Controller Wiring
The D
C model PowerShield Controllers are fitted with a male 3 way input socket and are supplied with a mating female
screw terminal plug. The following points must be considered:
• The Controller must be installed by a service person and connected to a socket outlet or fixed wiring with a
protective earth conductor or connector.
• A readily available disconnect device shall be incorporated in the building wiring or the socket outlet near
the PowerShield Controller that is readily accessible.
• The power source for the PowerShield Controller must be fused with a circuit breaker of no greater than 20A
rating. The connection must be installed in a service access area.
DC Model Plug

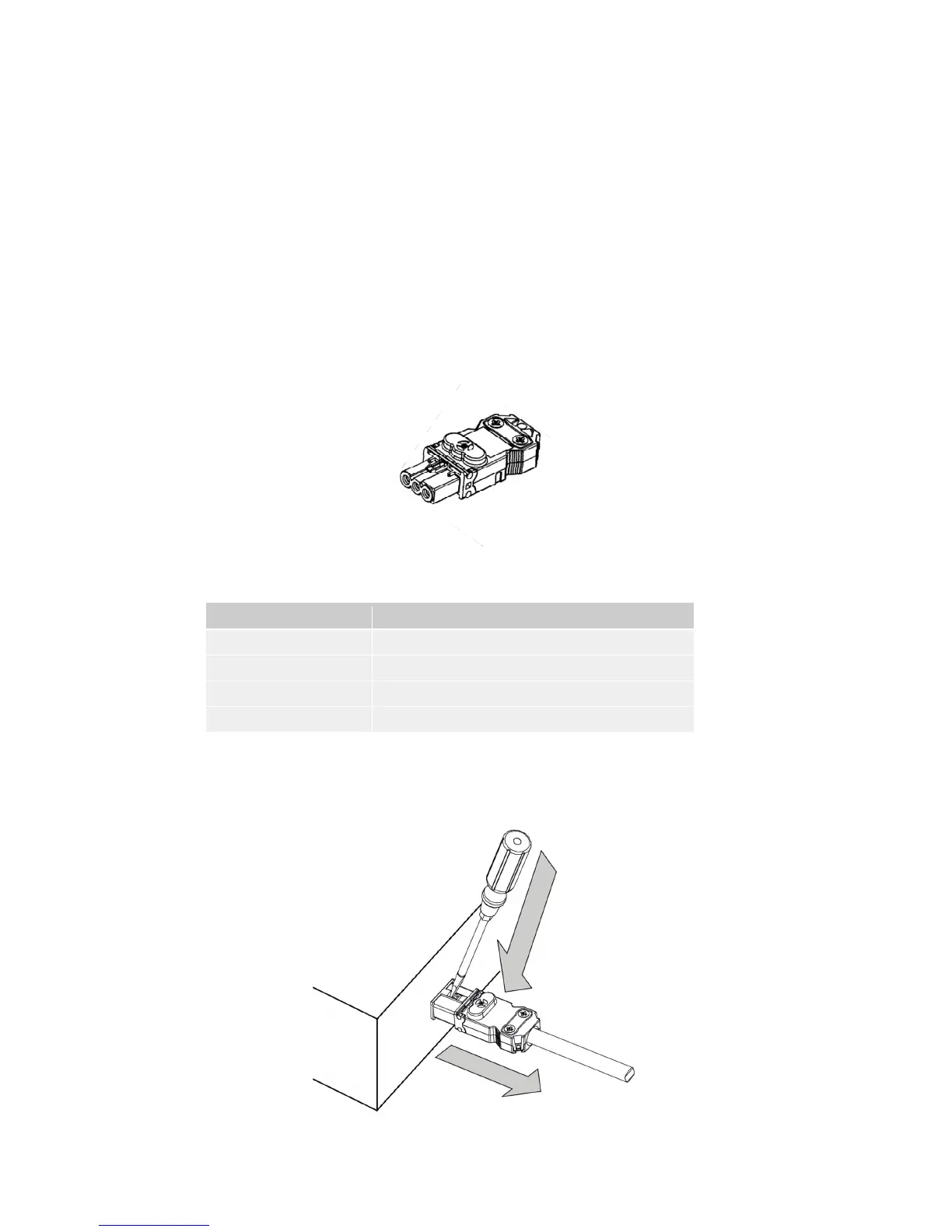

The plug required to connect to a DC model PowerShield Controller is a Wieland GST15i3 3-pole female screw terminal
plug (Wieland part number 91.931.3053.1) as shown below. This plug is supplied with the PowerShield Controller.
The plug specifications are shown below. It must be wired with cable of appropriate gauge and rating. We recommend
using cable with minimum ratings of 5A 250V.
Parameter Specification
Rated Voltage 250V
Rated Current 16A
Cable outer diameter 5.5mm to 9.0mm
Wire cross sectional area 0.5mm
The plug is fitted with a latch to secure it to the input socket of the PowerShield Controller. To remove the plug, press
down on the latch with a screwdriver or suitable tool and pull the plug out.
