Part Number 6300-095D Page 36 of 43

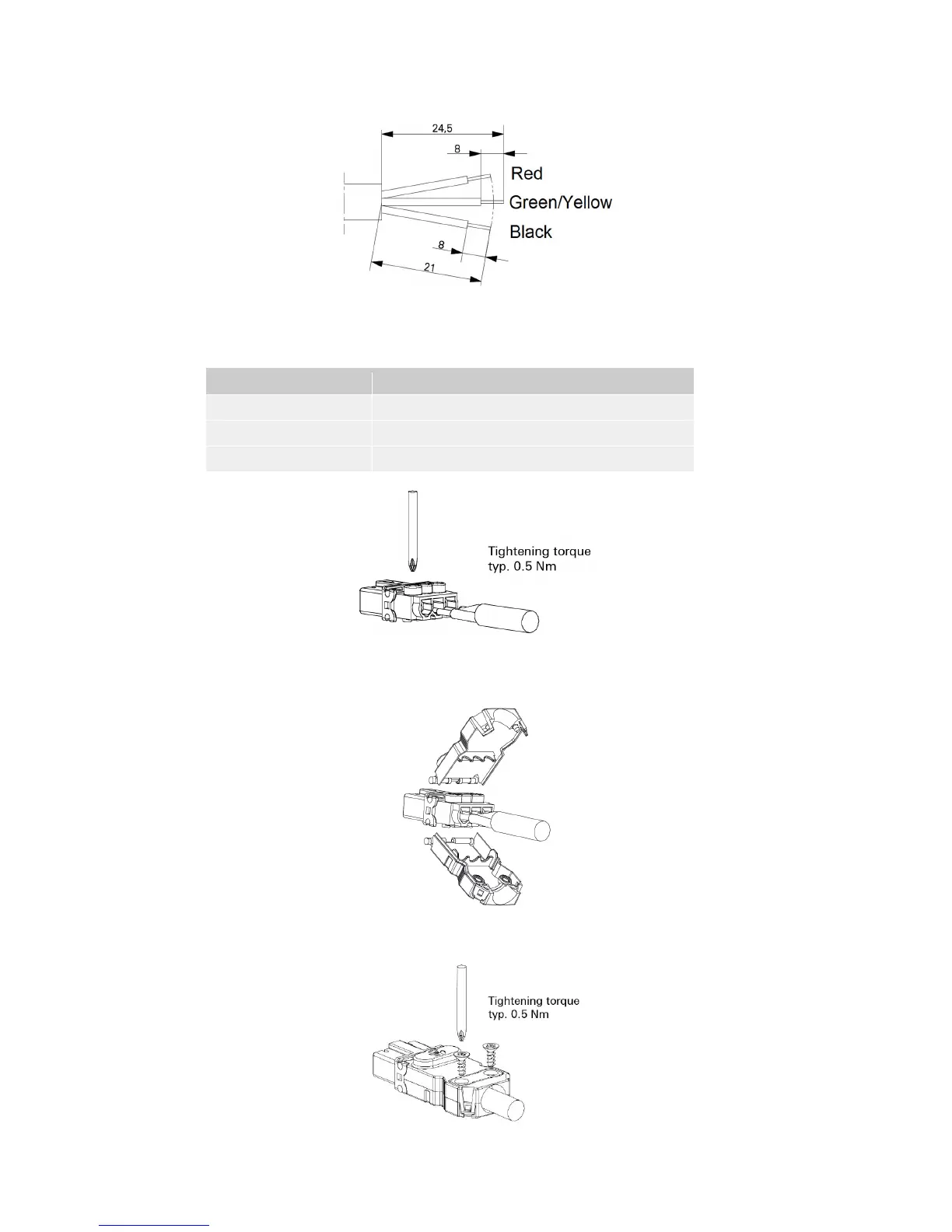

To wire and assemble the plug, please complete the following steps:
1. Remove the outer cable sheath and strip the ends of each wire as per below (lengths are in mm):
2. Insert the wires into the plug and tighten the contact screws.
The wiring should be as follows:
Plug Terminal Wire / Function
Live Red / DC supply positive
Earth Earth
Neutral Black / DC supply negative
3. Fit the covers.
4. Tighten the strain relief screws.
