Appendix 3 – Controller LCD
The PowerShield Controller LCD can be used to view system information. The information is displayed by pressing the
keypad buttons to access the required levels as shown below. The buttons operate as follows:
• Use the
buttons to scroll through the menu levels.
• Use the
button to select a level.
• Use the
button to return to the previous level.

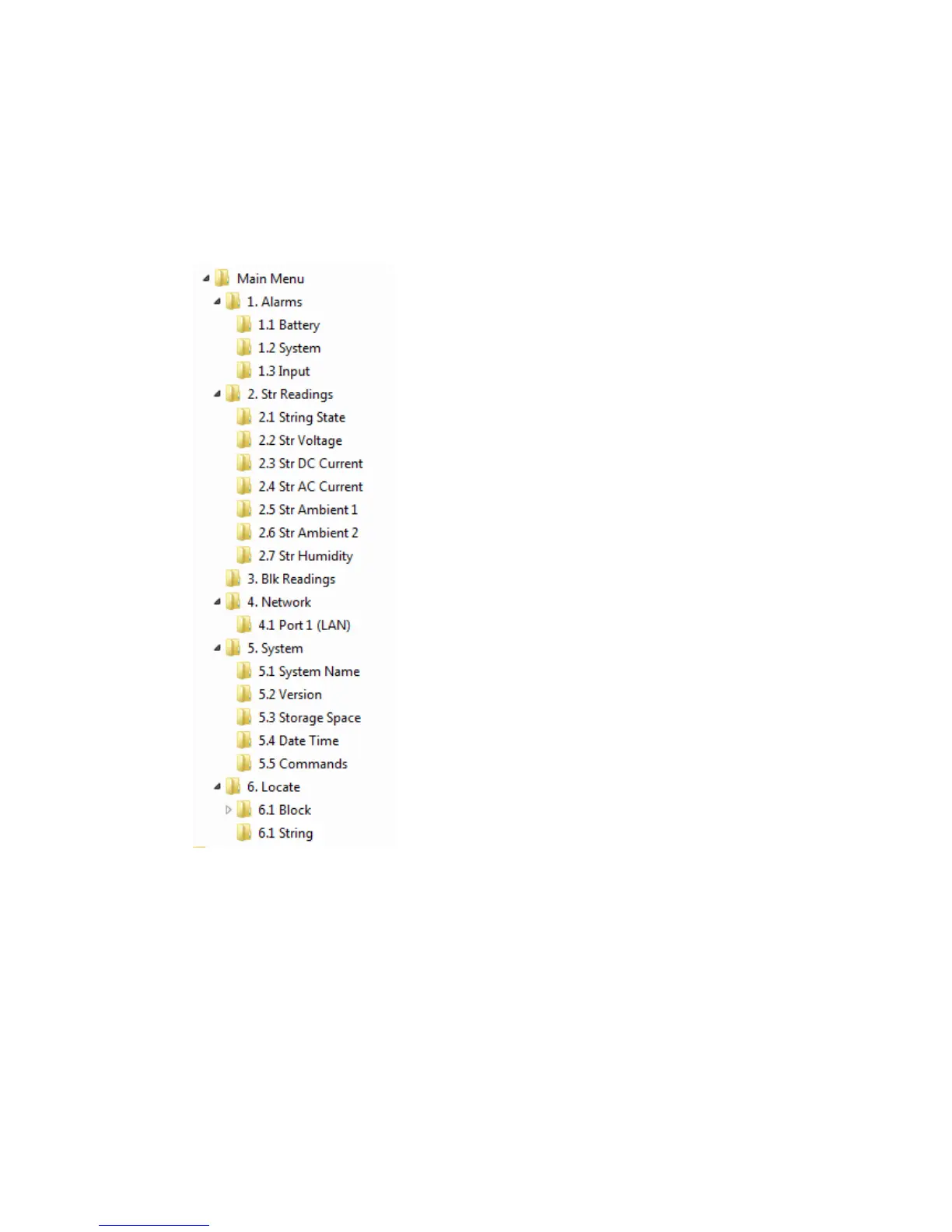

• The menu system is shown below:
To Next Page
