5.5 mSensor Power Leads
Fit the mSensor power leads to the block terminal tags with the correct polarity. Ensure the dual power leads are
connected across an ‘in series’ pair of batteries. Power leads are available with or without Block Temperature sensors.
Refer to Appendix 6 for the recommended method of connecting the mSensor power leads.

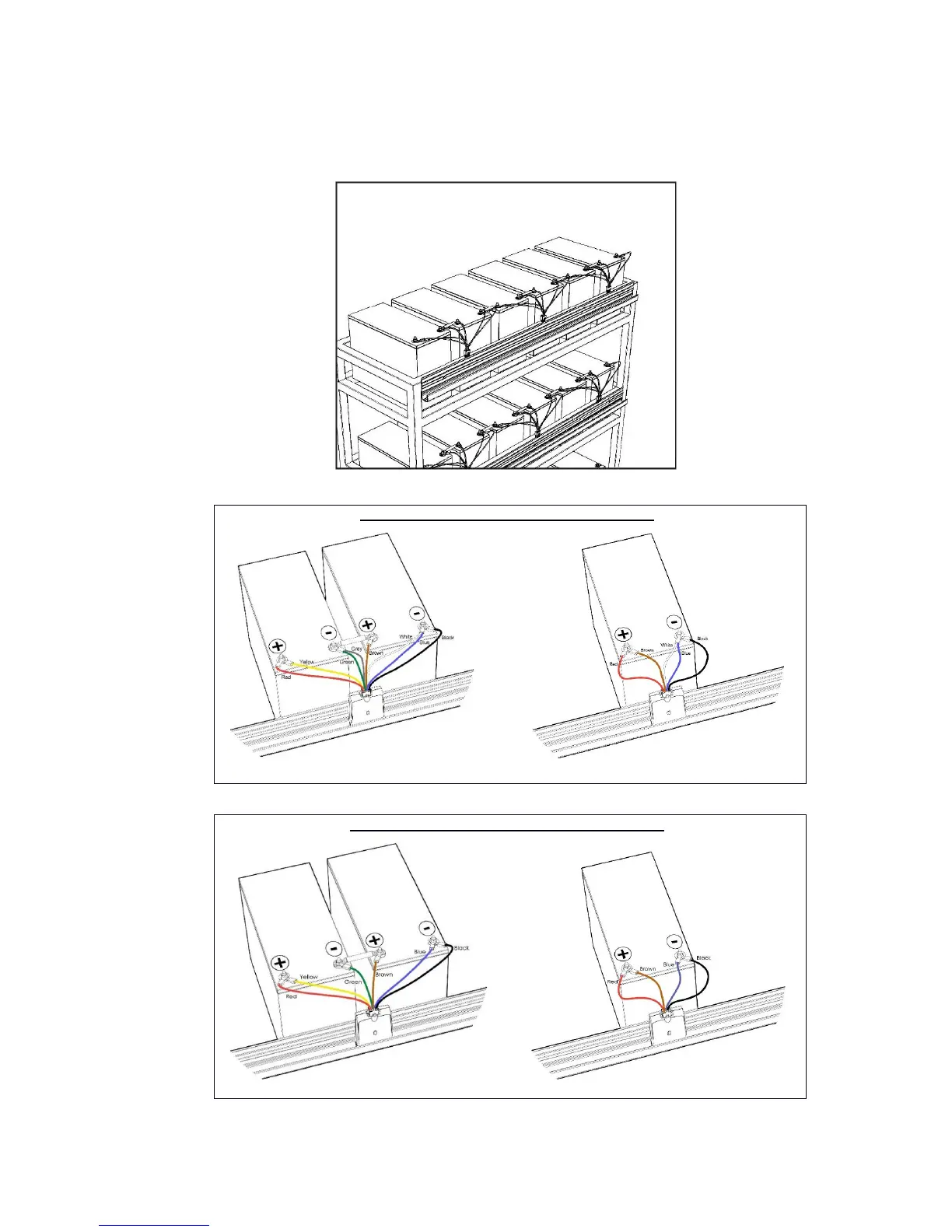

mSensor Power Leads with Block Temperature
Dual mSensor Single mSensor
mSensor Power Leads without Block Temperature
Dual mSensor Single mSensor
