Part Number 6300-095D Page 15 of 43

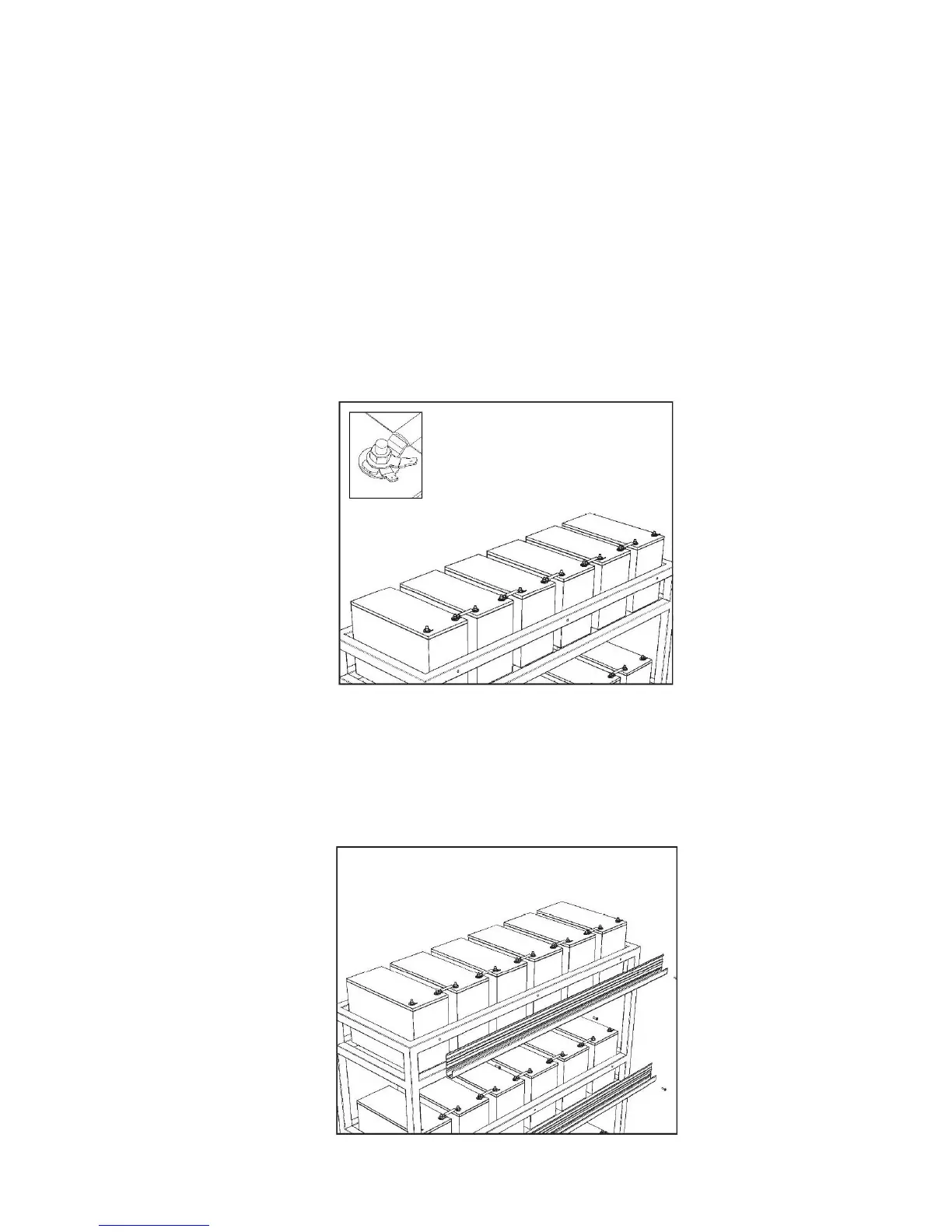

5.3 Block Terminal Tags
Ensure that all blocks have appropriate terminal tags fitted for connection to the mSensors as follows. For simplicity, it
may be easier and more efficient to fit two tags to every terminal.
• Where a dual mSensor is to be used with a pair of blocks, fit two tags on the negative (-) terminal of the
most negative block and two tags on the positive (+) terminal of the most positive block.
Fit one tag on each of the remaining terminals.
• Where a single mSensor is to be used on a single block, fit two tags on all block terminals.
NOTES: The terminal tags must be suitable for 6.3mm x 0.8mm receptacles. The tag material is important for
accurate measurements. PowerShield can supply a range of approved tags.
Place the tags on the top of the block interlinks and below any lock washers otherwise the current flow
between the interlink and the battery may be reduced and could result in a 'hot spot'.
Do not bend the tags as this can damage the connector crimp and/or result in poor or loose connections with
the mSensor power leads. Poor connections can have significant impact on impedance measurement.
PowerShield reserves the right to void warranties where terminal tags are bent or modified.
5.4 Mounting Rail for Hubs and mSensors
The mounting rail for the Hubs and mSensors can be fitted in any orientation and can be used with both battery racks
and cabinets. Drill to suit and fasten with screws or cable ties.
