Powtran pi130 series User Manual

Chapter 5 Function parameter
59
Code
Parameter name
Setting range
Factory
default
Change
0
Running
frequency
0 to maximum output frequency
1
Set frequency
0 to maximum output frequency
2
Output current
0 to 2 times of rated inverter current
3
Output torque
0 to 2 times of rated motor current
4
Output power
0 to 2 times of rated power
5
Output voltage
0 to 1.2 times of rated inverter voltage
6
AI1 analog input
value
0 to 10V/0 to 20mA
7
AI2 analog input
value
0 to 10V/0 to 20mA
8
Running speed
0 to 2 times rated motor speed
F2.05
AO1 output lower limit
0.0% to F2.07
0.0%
☆
F2.06
Lower limit corresponds to
AO1 output
0.00V to 10.00V
0.00V
☆
F2.07
AO1 output upper limit
F2.05 to 100.0%
100.0%
☆
F2.08
Upper limit corresponds to
AO1 output
0.00V to 10.00V
10.00V
☆
The above function code defines the relationship between output value and analog
output, when output value is out of the set maximum output or minimum output, the
maximum output or the minimum output will be used for calculation.
When the analog output is the current output, 1mA current is equivalent to 0.5V
voltage.
In the different applications, the 100% of analog output value can be different, please
refer to the description of each application for details.
AO
10V(20mA)
对应设定
100%
0.0%

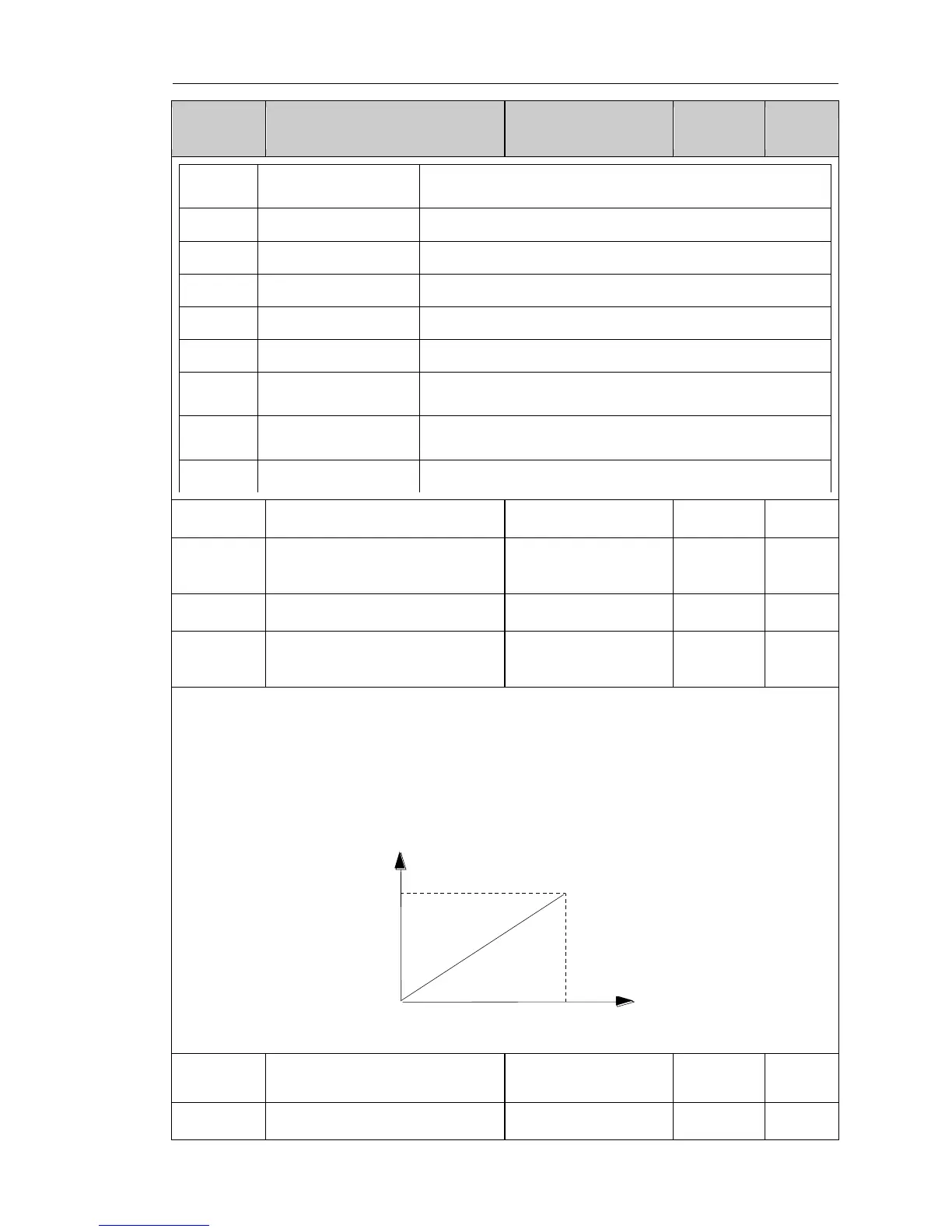

Relationship diagram between analog output and set amount
F2.09 to
F2.13
Reserved
F2.14
DO output terminal active
0x00 to 0x1F
00
☆
Corresponding
setup
