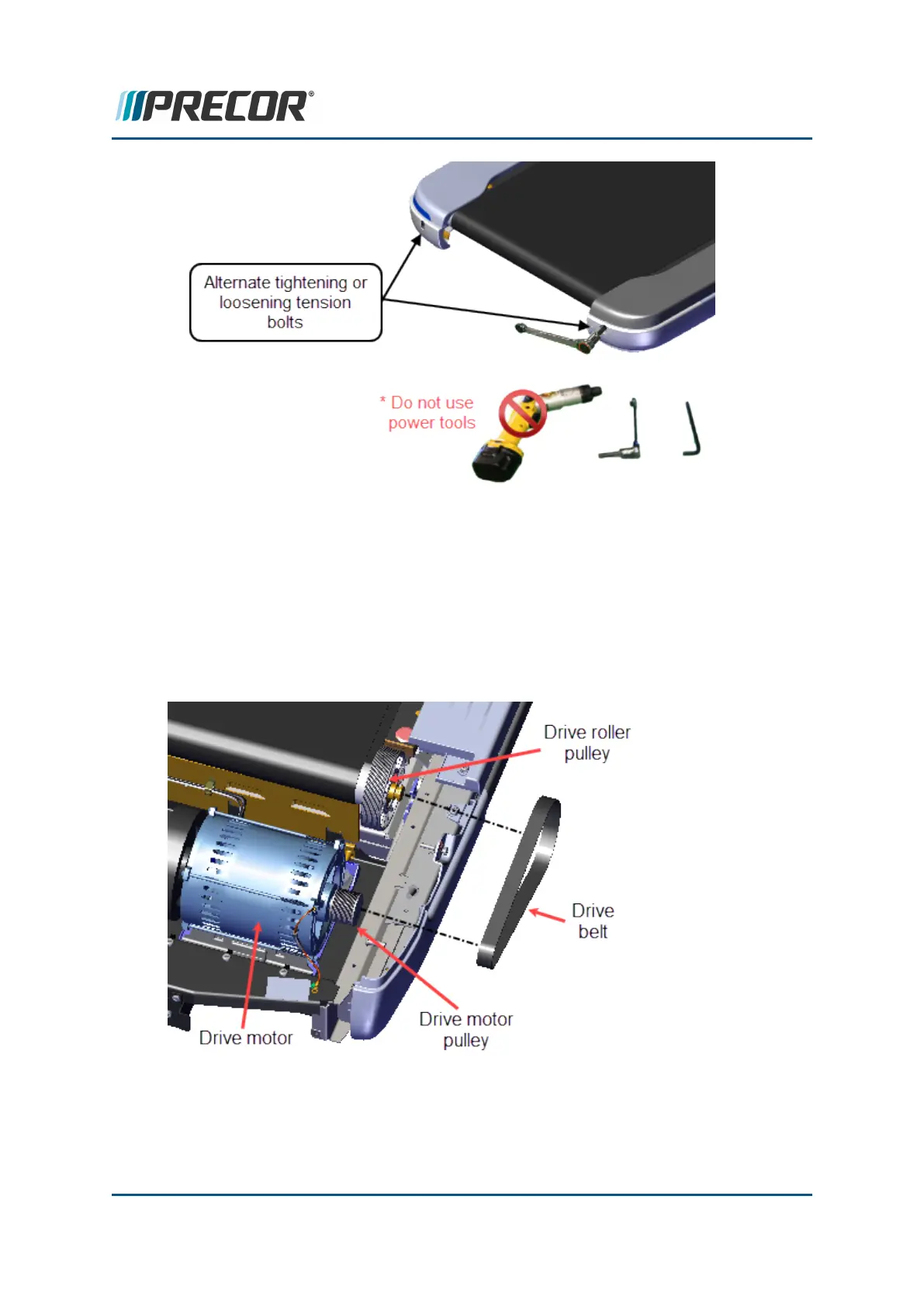

4. Loosen the drive belt tension and remove the Drive belt off the drive roller pulley, see
"Drive Belt Tension and Alignment Adjustment" on page 57.
a. Use a 1/2" socket with 6" extension to loosen the four Drive Motor mount bolts
enough so that the motor can slide forward and/or rearward in the mounting
tray.
b. Loosen the 1/2" drive belt tension adjustment bolt to remove the drive belt ten-
sion.
c. Then walk the belt off the drive motor and drive roller pulleys.
5. Lift the drive roller and running belt from the frame. Lift the roller left side from the
frame bracket mount and then slide the roller right side from the frame pin mount and
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 140
6 Replacement Procedures
Drive Roller Replacement
