Pictograms and safety instructions on the AUTOMATIC winch
Pictograms
and safety related instructions are attached at the following points on the AUTOMATIC
winch:

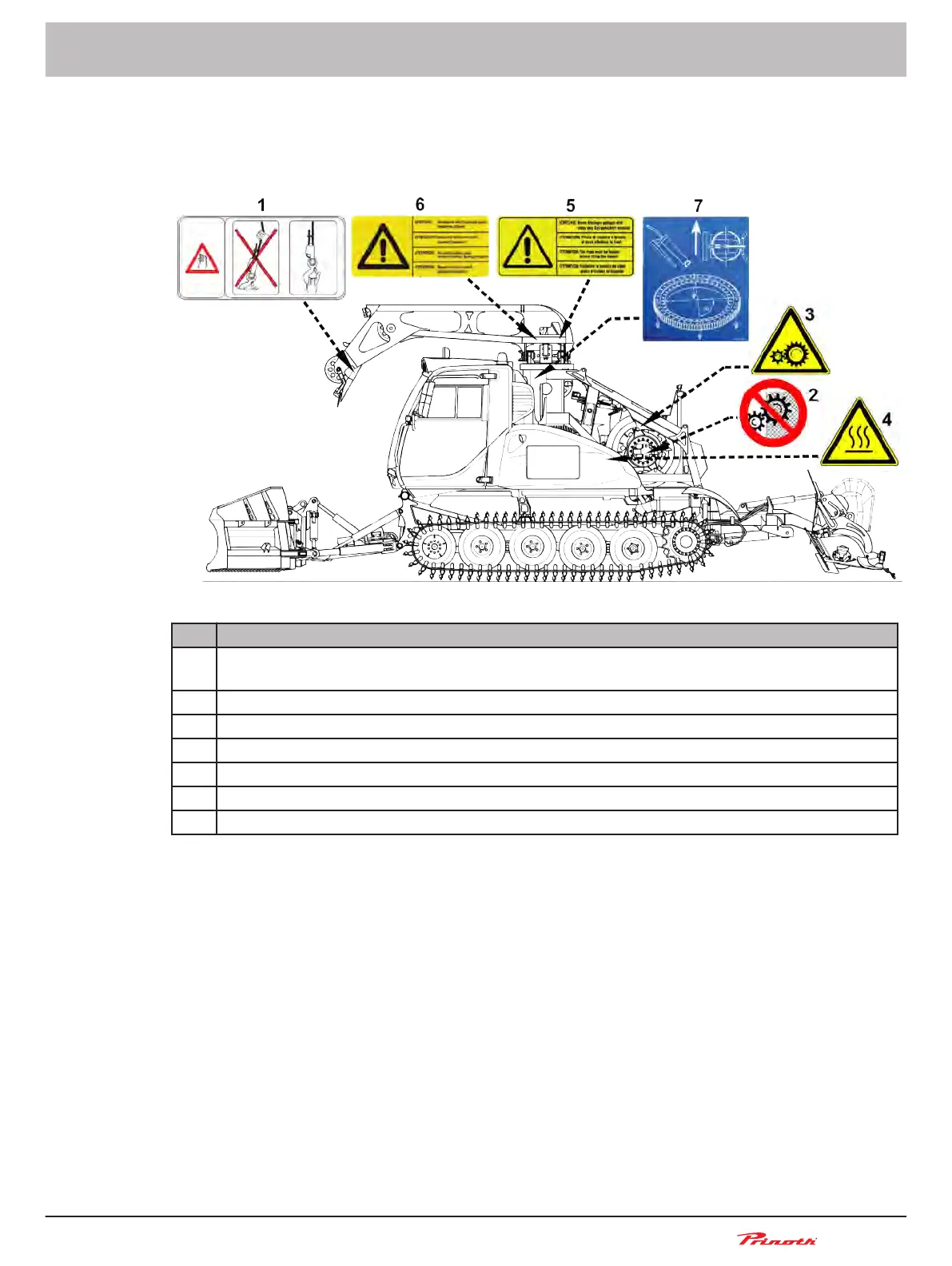

Figure 115: Pictograms and safety instructions on the AUTOMATIC winch
Pos. Name
1 When winding/unwinding the cable, always hold it by the anchoring hook, never pull the cable
itself!
2 The removal of safety devices is prohibited!
3 Warning of severing injuries or crushing danger due to rotating parts!
4 Warning against hot surfaces, components or fluids!
5 The cable must be slack before tilting the winch arm!
6 During transport, secure the winch arm to prevent twisting!
7 Lubrication points on the turntable
Snow groomer BISON
Operating and Maintenance Manual
BISON 908930245 - 30367
15 - AUTOMATIC Winch
