Prinoth BISON - Joystick

Joystick

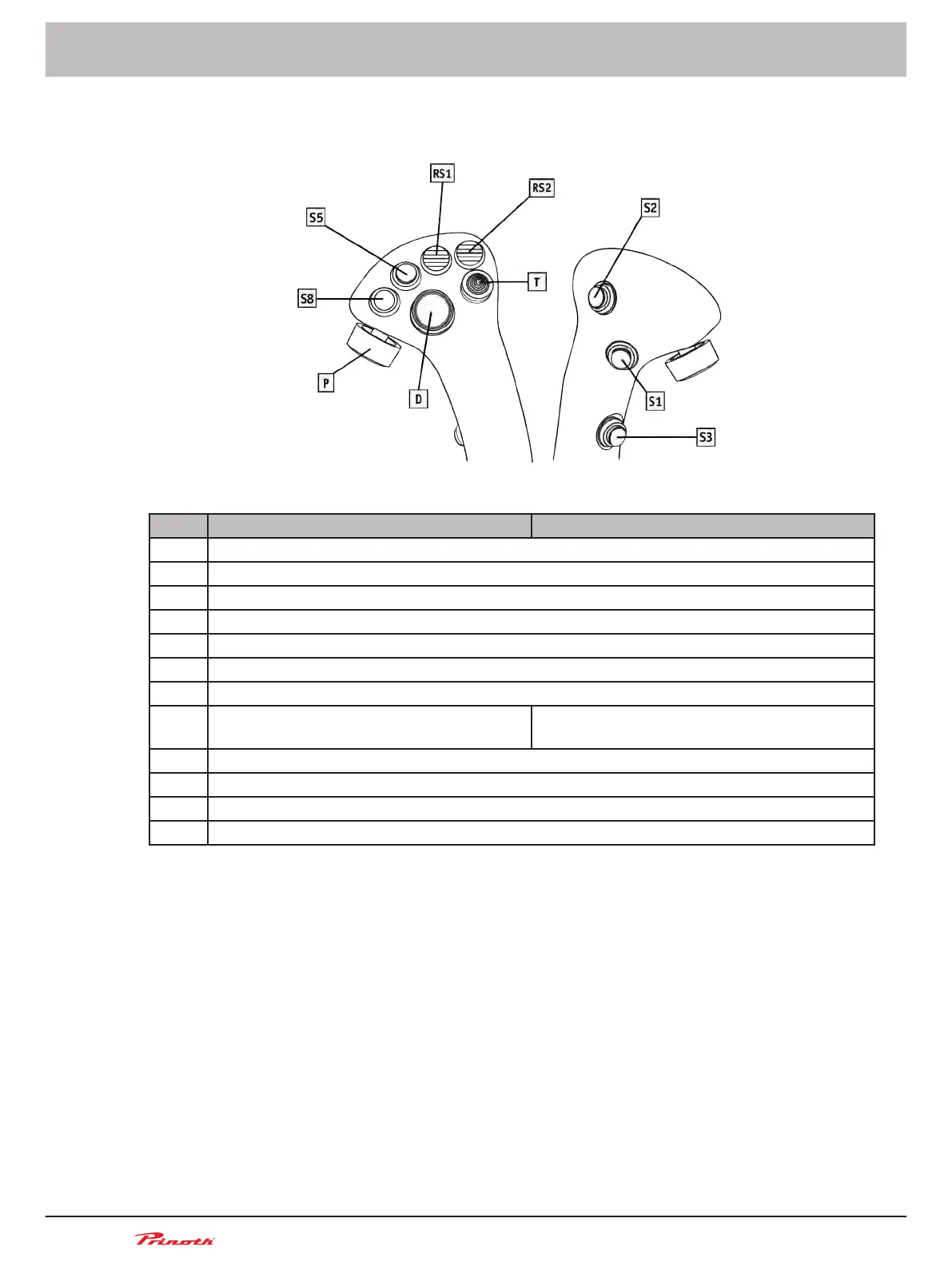

Figure 18: Joystick with controls
Pos. Name Description
S8 Push-button: Tiller ON/OFF, double click for Up and Go
S5 Push-button: Up/Down pressure, Vertical floating
RS1 Left tiller wing control
RS2 Right tiller wing control
T Mini-joystick: Rear lift frame vertical/lateral displacement button
S2 Push-button double click : Tiller On + Vertical floating
S1 Push-button: Rear lift frame lateral floating/auto-centering; Blade angler, roll up/down button
S3 Push-button: Blade wing positioning control,
Front wiper
Double-click on push-button S3 = windscreen
and rear window wipers wiping once
D Joystick switch: Blade angler, roll up/down button
P Vehicle speed rotary switch
S1 + T Tiller depth control and tiller snow chamber opening control
S3 + T Winch pulling force (front/rear), winch boom rotation (left/right)
Joystick operation
The attachments mounted are operated using the joystick.
Used
along with the push-buttons on the joystick, all the available attachment functions can be per-
formed with one hand.
The individual functions of each of these push-buttons depend on the type of equipment and can
therefore vary.
Operating and Maintenance Manual
Snow groomer BISON
60 (255)
5 - Vehicle
BISON 908930245 - 30367
5.9.4
5.9.5
