Using the spotlight
NOTICE
Risk of damage to electrical/electronic equipment
The spotlight's wiring can be damaged if the spotlight is turned by more than 360° in one direction.
►
Do not rotate the spotlight's adjusting lever in one direction only.

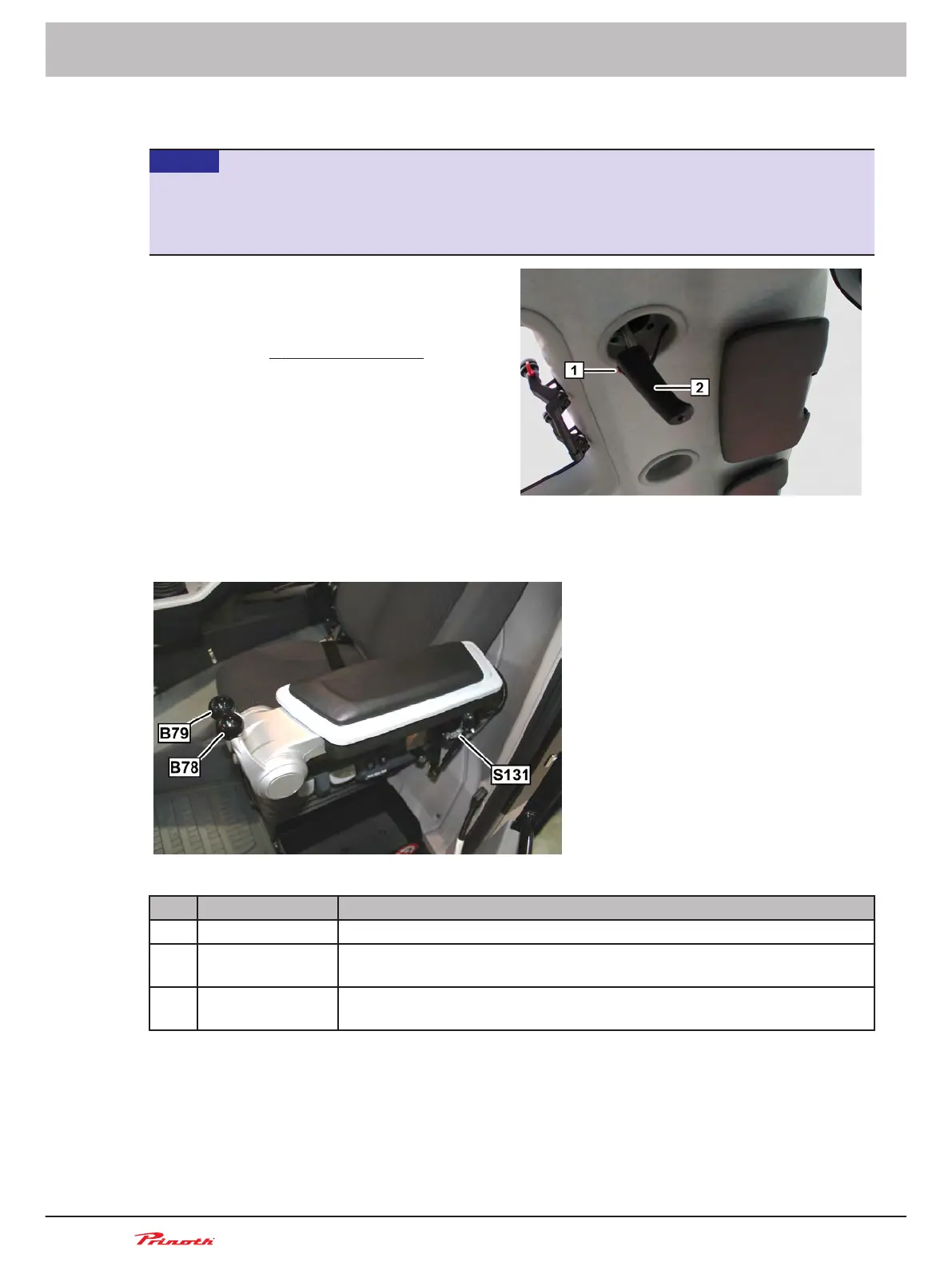

■ The spotlight is switched on and off using
the toggle switch (1) on the adjusting lever
(2).
The
adjusting lever (2) is located at the
cabin roof.
➽
See "Cabin roof" (p. 49)
■ The spotlight can be rotated by 360°. It can also be tilted 30° forward and 35° backward.
Steering console
Figure 12: Steering console
Pos. Name Description
B78 Left steering lever Operate one or both levers to obtain the desired direction of travel.
B79 Right steering lev-
er
Operate one or both levers to obtain the desired direction of travel.
S131 Limit switch The limit switch signals that the steering console is located in the specified
bottom position. This is required for the snow groomer standby.
Operating and Maintenance Manual
Snow groomer BISON
50 (255)
5 - Vehicle
BISON 908930245 - 30367
5.7
5.8
