OUT Terminal # 30A
FU-7 200 A power cab
K8 TILT CAB RELAY DOWN
K7 TILT CAB RELAY UP
FU-1 40A IGNITION
FU-2 40A TILT CAB
K2 IGNITION RELAY
K6 STARTER RELAY
DIODE 03 Logic tilt pump
DIODE 04 Logic tilt pump
RELAY SK2 fuel pump
RELAY SK3 AC fan
RELAY not used
RELAY not used
F1 Ignition switch 7.5 A
F2 Fuel pump 20 A
F3 Engine ECM 20 A
F4 ALTERNATOR 10 A
F5 PETU 1 20 A
F6 PETU 2 20 A
F7 AC fan 15 A
F8 Courtesy light 7.5 A
F9 Door lock 10 A
F10 Fleet manager 7.5 A
Control units

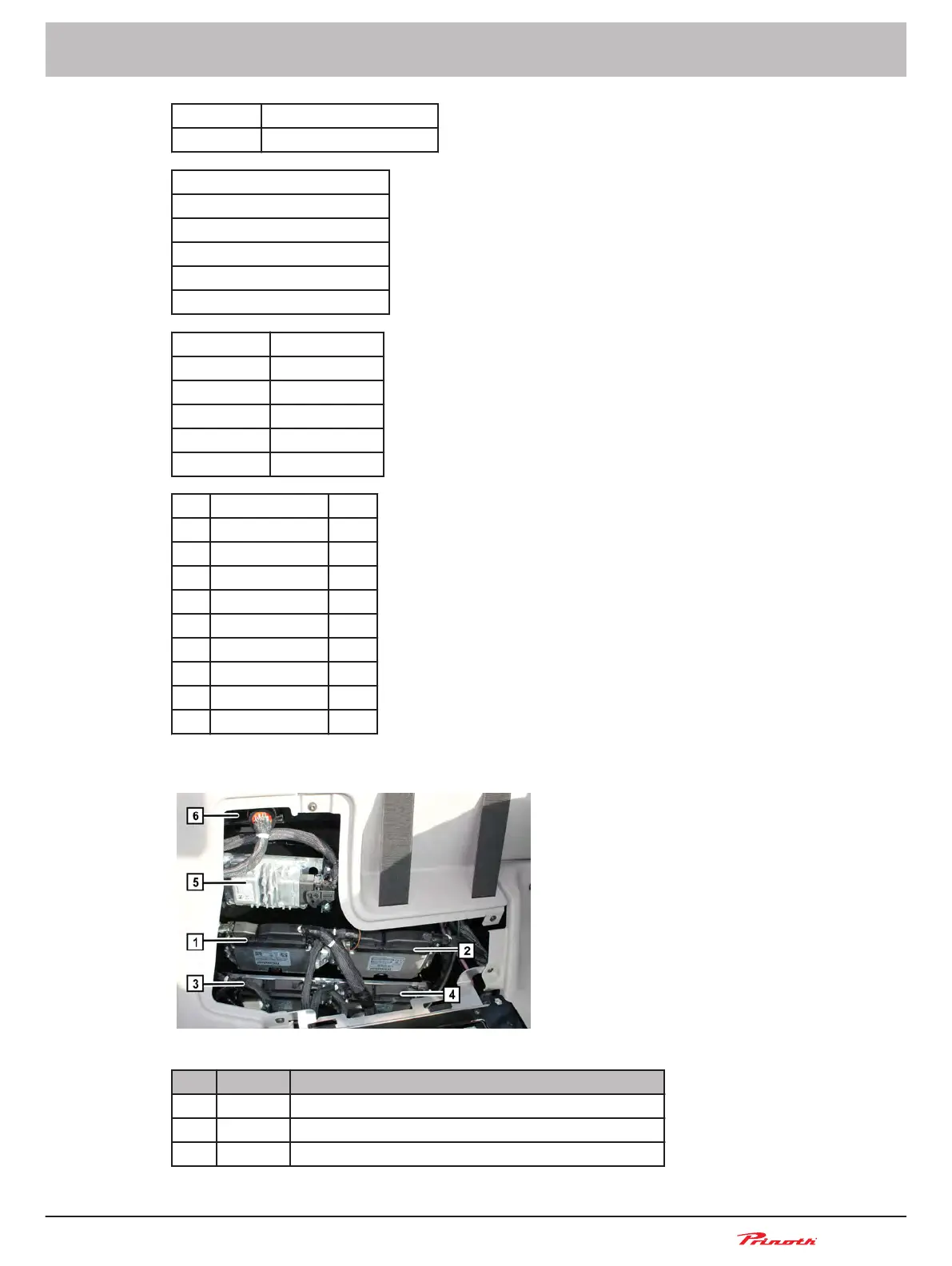

Figure 26: Control units behind the right passenger seat
Pos. Name Description
1 TTC94 Control unit: Master
2 TTC48-1 Control unit: Input/Output rear lift frame, wiper, fuel
3 TTC48-2 Control unit: Input/Output rear lift frame, blade, tiller
Snow groomer BISON
Operating and Maintenance Manual
BISON 908930245 - 30367
5 - Vehicle
71 (255)
5.12
