Prinoth BISON - Driver Seat

Driver seat
7
4
1
6
3
2
9
10
5
11
12
14
15
13
8

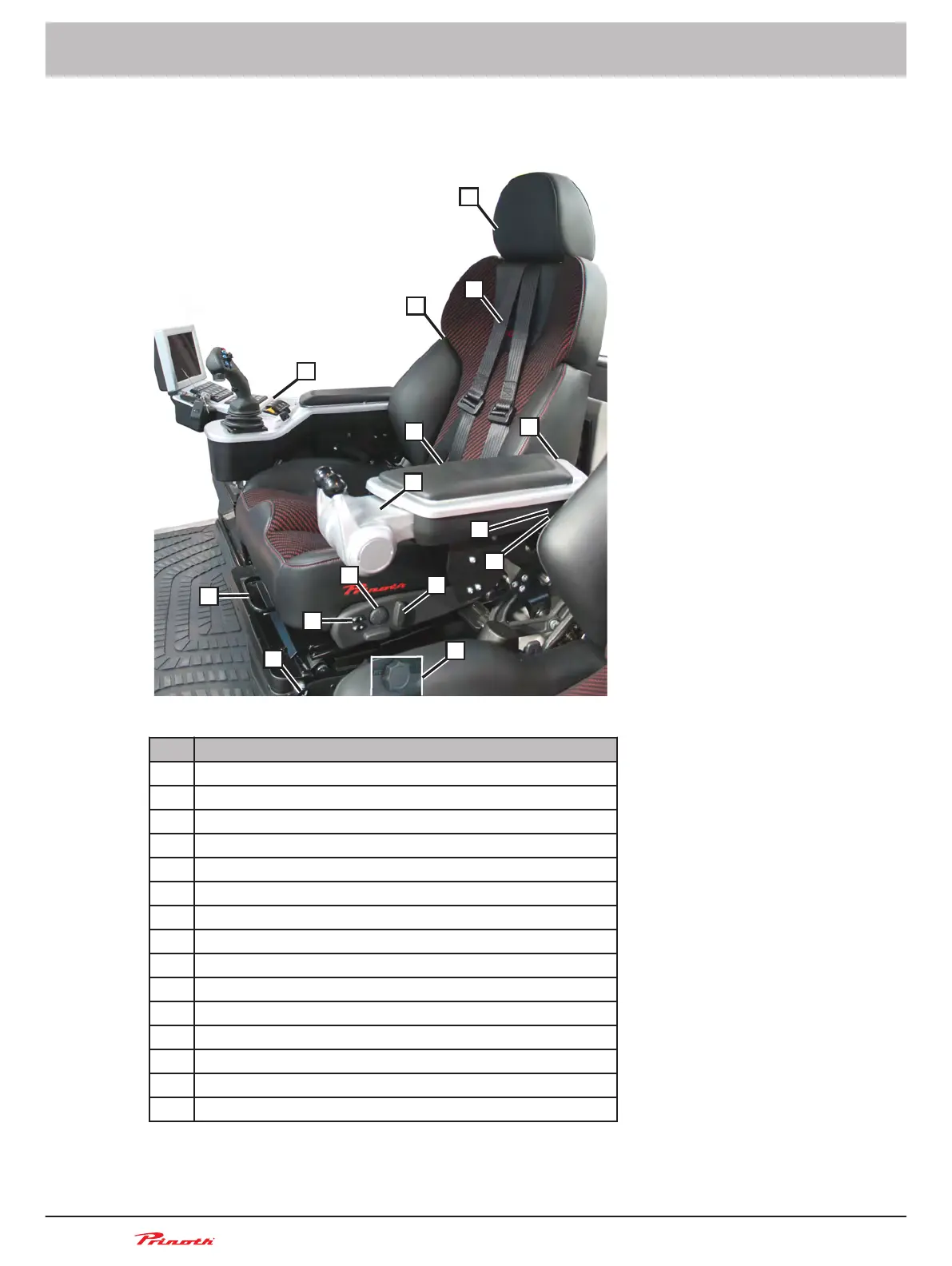

Figure 8: Controls on the driver seat
Pos. Name
1 Head rest
2 Seat belt
3 Side bolster adjustment (not visible on picture)
4 Control console (right armrest)
5 Left armrest fore/aft adjustment (not visible on picture)
6 Backrest release for forward folding (not visible on picture)
7 Steering console (left armrest)
8 Left armrest angle adjustment
9 Left armrest swivel locking lever
10 Backrest tilt adjustment
11 Lumbar support adjustment
12 Seat heating switch
13 Seat tilt angle adjustment
14 Seat height adjustment
15 Seat fore/aft adjustment
