Prinoth BISON - Fuses and Relays in the Accessory Support

K100 Acoustic signal central locking
K107 Supply TTCs
K116 Control relay battery switch
K117 Impulse relay battery switch
K118 Time relay "Coming Home" 1-30 sec.
K119 Time relay "Leaving Home" 1-30 sec.
K120 Switchover accelerator pedal
K124 Switchover indicator accelerator pedal
K125 Air intake flap open
K126 Air intake flap closed
Service connectors
X120 Connector CAT
X162 Ethernet
X163 Debug TTC Vision
X179 Debug CAN 1
X218 Debug CAN 0
X219 Debug CAN 3
A40 Central Locking
A43 Controller wiper
R33-V81 Charging resistor
S142 Termination CAN
U1 Voltage Converter
U5 Voltage Converter
V96 Diode warning buzzer for reverse travel

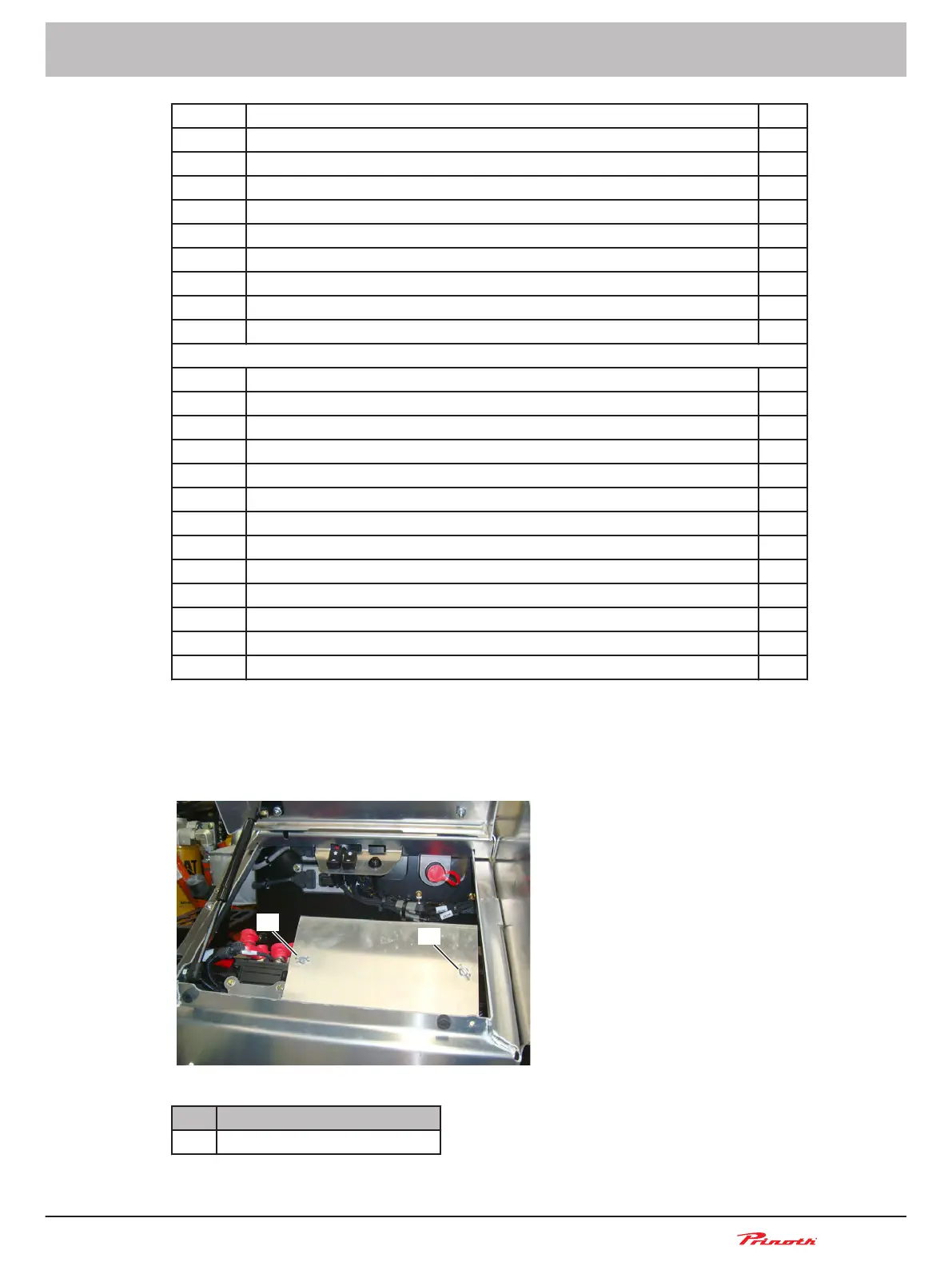

Fuses and relays in the accessory support
The
auxiliary fuses and relays are located in the electrical box inside the cowling. To gain access,
open the right side access panel, then remove the two wing nuts holding the cover of the electrical
box.
1
1
Figure 23: Right side access panel
Pos. Name
1 Wing nuts of the electrical box
Snow groomer BISON
Operating and Maintenance Manual
BISON 908930245 - 30367
5 - Vehicle
69 (255)
5.11.2
