Prinoth BISON - Operating the ROLL out Remote Control

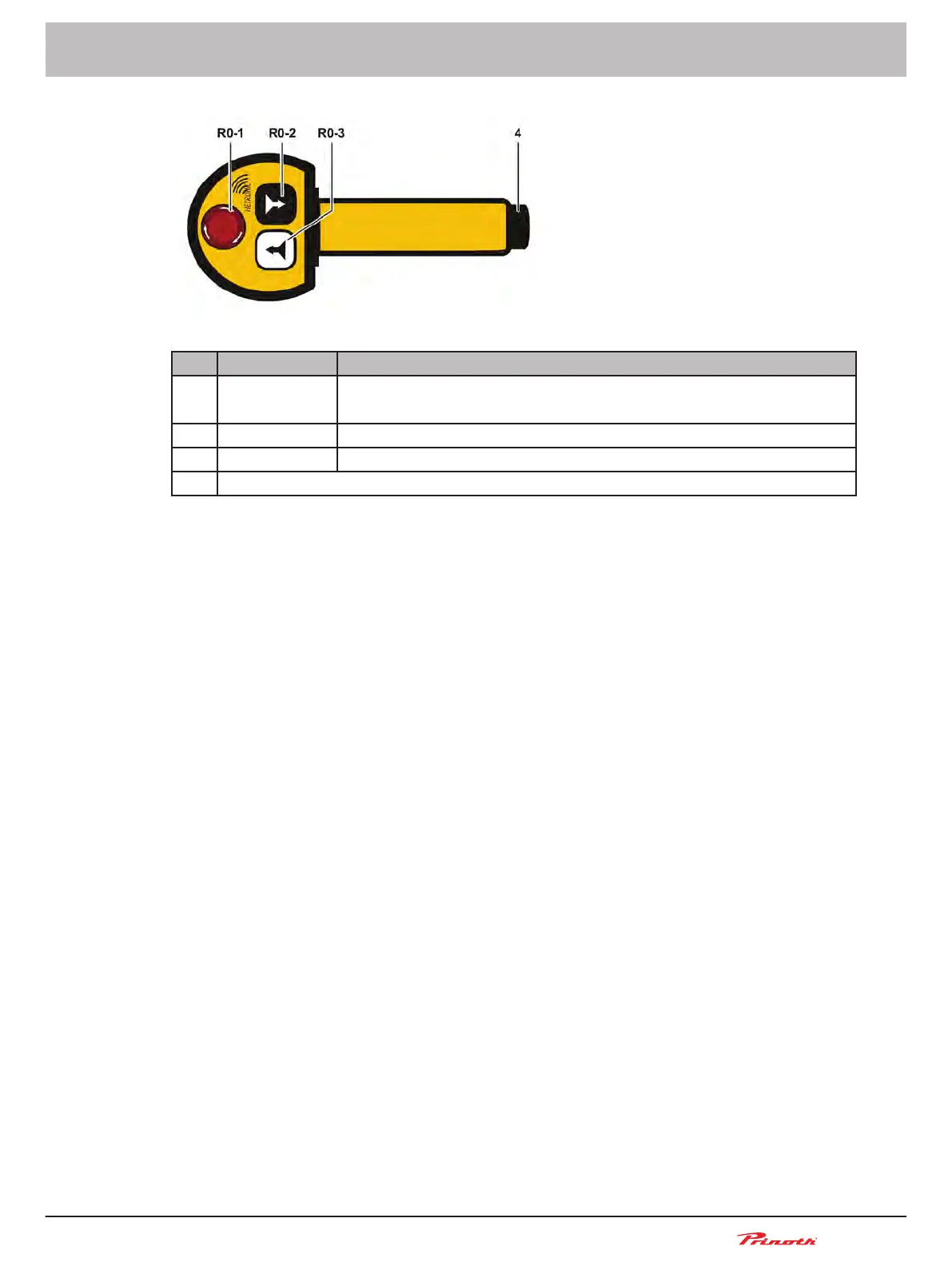

Figure 128: Controls of the ROLL OUT remote control
Pos. Name Description
R0-1 ON/OFF button ■ Press the ON/OFF button = remote control is turned off
■
Turn the ON/OFF button clockwise = remote control is switched on
R0-2 Push-button ■ Press the push-button switch = automatically unwind the cable
R0-3 Push-button ■ Press the push-button switch = automatically rewind the cable
4 Battery compartment
Operating the ROLL OUT remote control
Functions when pressing the R0-1 push-button switch
■ Before
you use the ROLL OUT remote control, turn on the remote control by turning the ON/OFF
button clockwise. Activation is confirmed by a short beep.
■ While using the ROLL OUT remote control, automatic cable rewinding or unwinding is immediate-
ly brought to a standstill by pressing the ON/OFF button.
■ After you use the ROLL OUT remote control, turn off the remote control by pressing the ON/OFF
button.
Functions when pressing the R0-2 and R0-3 push-button switches
■ Before using the R0-2 and R0-3 push-button switches to rewind and unwind the cable, you must
observe the following points:
□ The remote control must be switched on.
□ The manual cable unwind function must have been activated with the A37/6 push-button
switch.
□ At least one of the cab doors must be opened.
■ Pressing the R0-2 push-button switch activates the automatic cable unwind function. As it auto-
matically unwinds, the cable is fixed to the anchoring hook and guided to the mount point on the
desired anchorage.
■ If you stop or interrupt actuation of the R0-2 push-button switch, the cable also stops the auto-
matic unwind function.
■ Pressing the R0-3 push-button switch activates the automatic cable rewind function. As it auto-
matically rewinds, the cable is fixed to the anchoring hook and guided to the mount point on the
winch boom.
■ If you stop or interrupt actuation of the R0-3 push-button switch, the cable also stops automatical-
ly rewinding.
