Adjusting the control console

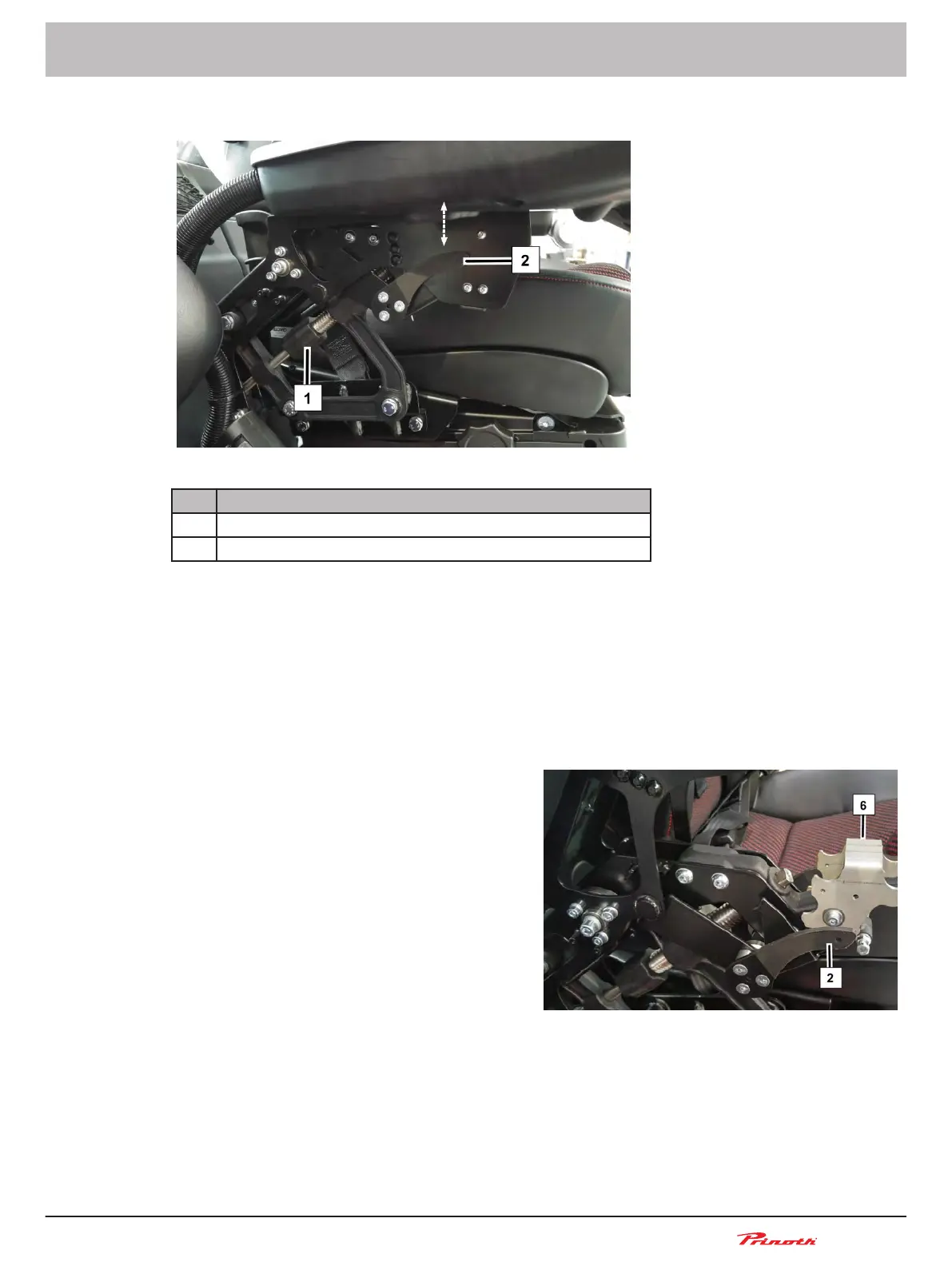

Figure 15: Control console bracket
Pos. Name
1 Hand wheel for adjusting height position
2 Lever for unlocking the console and adjusting the inclination
The control console can be adapted to the driver by adjusting its angle and height. The console can be
folded up to make it easier to get in and out of the cab.
Adjust the height position
The height position of the control console is adjusted by turning the hand wheel (1).
■ Turn hand wheel (1) = control console moves up or down
Adjust the inclination
1. Pull down the lever (2) and fold up the
control console until it locks into place.
