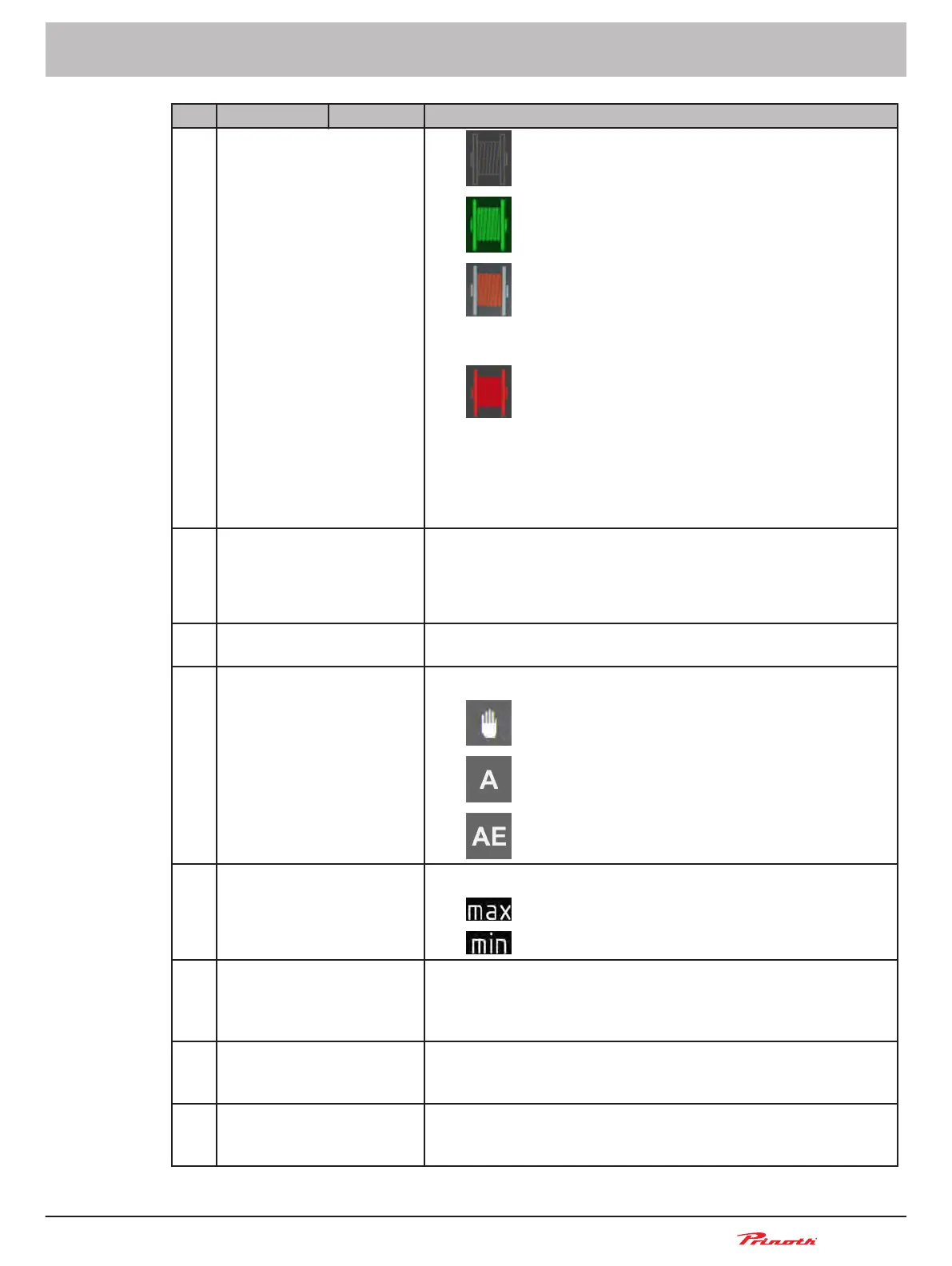

Pos. Name Image Description
■
Grey = winch operation OFF
■
Green = winch operation ON
■
Orange = error in traction pumps pressure sensors,
winch pump pressure sensor, winch arm position sensor or
load detecting cell
■
Red = malfunction
■ Flashing white = only approx. 30 m (98 ft) of cable are left
on the drum. An alarm also sounds.
■ Pop-up "F" flashing in the display = winch operation must
be confirmed again (e.g. if the snow groomer standby mode
was switched off in winch operation)
2 Recommended winding di-
rection and number of rota-
tions
The recommended winding direction and the number of rotations
are indicated when the respective symbol is lit:
■
Arrow = winding direction
■ Number = number of rotations
3 AUTOMATIC winch not
locked warning lamp
If the warning lamp lights continuously red, check locking of the
AUTOMATIC winch.
4 Cable traction force control The active cable traction control mode is displayed as a symbol:
■
= Manual mode
■
= Automatic mode
■
= A-ECO mode
5 Traction force status MIN or MAX lighting up indicate the status of cable traction force:
■
= maximum traction force
■
= minimum traction force
6 Reduced vehicle speed If the indicator lights up white continuously, reduced vehicle
speed
is activated. Winch operation has to be confirmed again.
(e.g., when the snow groomer standby mode is switched off while
operating the winch)
7 AUTOMATIC winch operat-
ing hours
The working hours counter starts when the drum is turning. The
indicated number of working hours are essential for mainte-
nance.
8 Remaining cable length Indicates the length of cable remaining on the cable drum. When
there are only approx. 30 m (98 ft) of cable on the cable drum, an
alarm is sounded and the "Drum" symbol flashes white.
