Proliphix IMT550c - AUX Relays; Figure 2-2 Control - AUX Relays Page - Relay State Inactive

Beta Draft Confidential
2-6 Internet Managed Thermostat Configuration Guide, Release 1.0
Part No. 600-03001-550, Rev. 1
CHAPTER 2: Configuring the Thermostat Using the Web Interface
AUX Relays
The Control - AUX Relays page displays the AUX Relay 1 and AUX Relay 2 state
information.

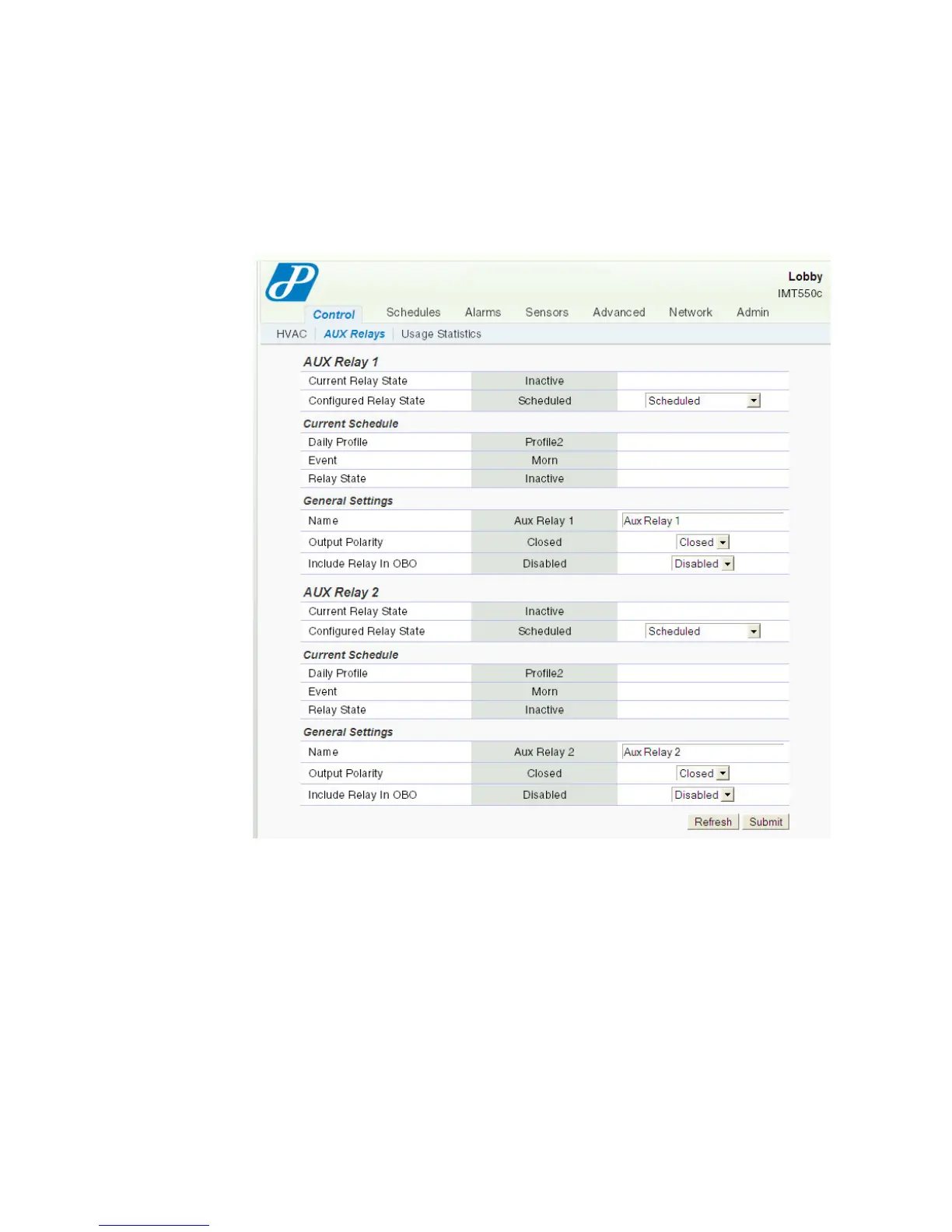

Figure 2-2 Control - AUX Relays Page - Relay State Inactive
