Schedules Page
The Schedules page displays tabs for the HVAC, AUX Relay 1, and AUX Relay 2
pages.
HVAC
The Schedules - HVAC settings page displays the schedule information.
Schedule Settings
The Schedule Settings page displays the default daily Profiles and weekly schedule.

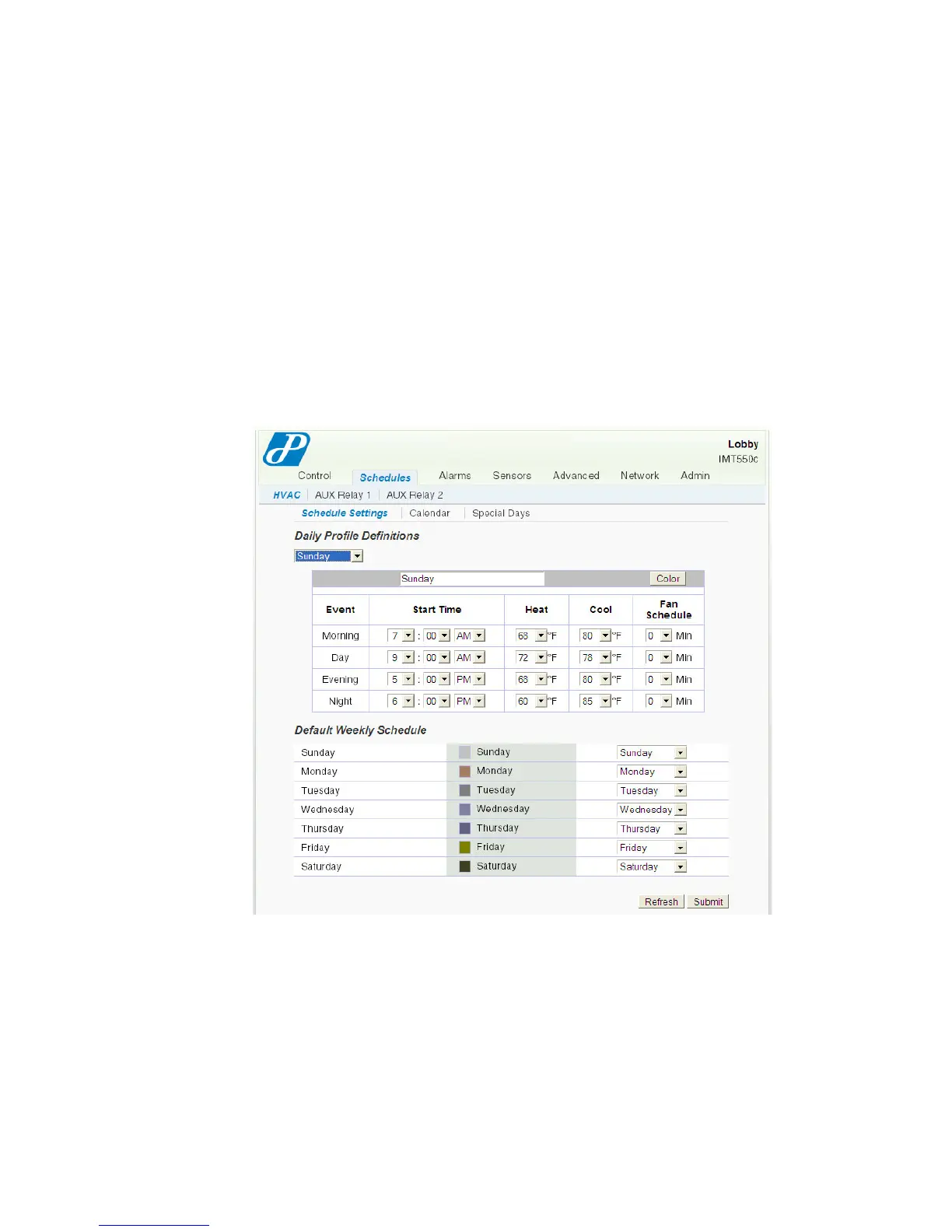

Figure 2-8 Schedules - HVAC - Schedule Settings Page
Daily Profile Definitions
The thermostat scheduling feature is organized in a hierarchy. You use Profiles (up to
12) to classify the types of days that are used in the schedule. Each Profile is divided
into four events, each of which supports temperature settings for both heating and
cooling, and fan scheduling to provide periodic air flow.
Each Profile supports the following four non-overlapping events of time (within 24
hour period) in which you can independently specify heat, cool, and fan schedules.
