First theoretical switching time < min. time
off
on
t
off
on
t
Cycle
Cycle Cycle
Cycle
Cycle
Cycle
min. time
min. time
theoretical
actual
A0026_GB

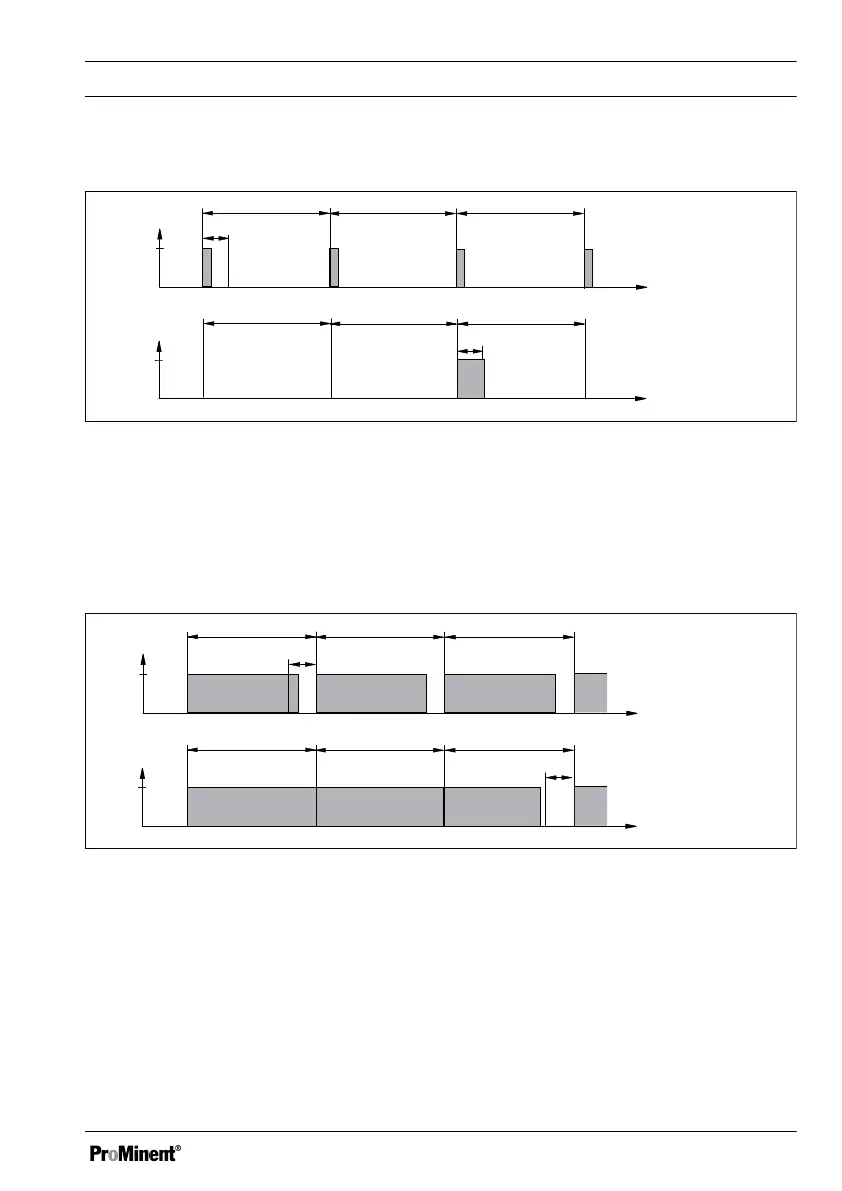

Fig. 63: Theoretical switching time < min. time
The DULCOMETER
®
D1Cb / D1Cc does not switch on for a certain number of cycles
until the sum of the theoretical switching times exceeds the "min. time". Then it switches
for the duration of this total time.
Second theoretical switching time > (cycle - min. time):
Cycle
min. time
off
on
t
off
on
t
Cycle Cycle
Cycle
Cycle
Cycle
min. time
theoretical
actual
A0027_GB
Fig. 64: Theoretical switching time > (cycle - min. time) and calculated switching time <
cycle
The DULCOMETER
®
D1Cb / D1Cc does not switch off for a certain number of cycles
until the differences between the cycle and the theoretical switching time exceed the
"min. time".
