3.2 Installation (Wall Mounted)
The device can be installed directly on the wall with the aid of the wall bracket.

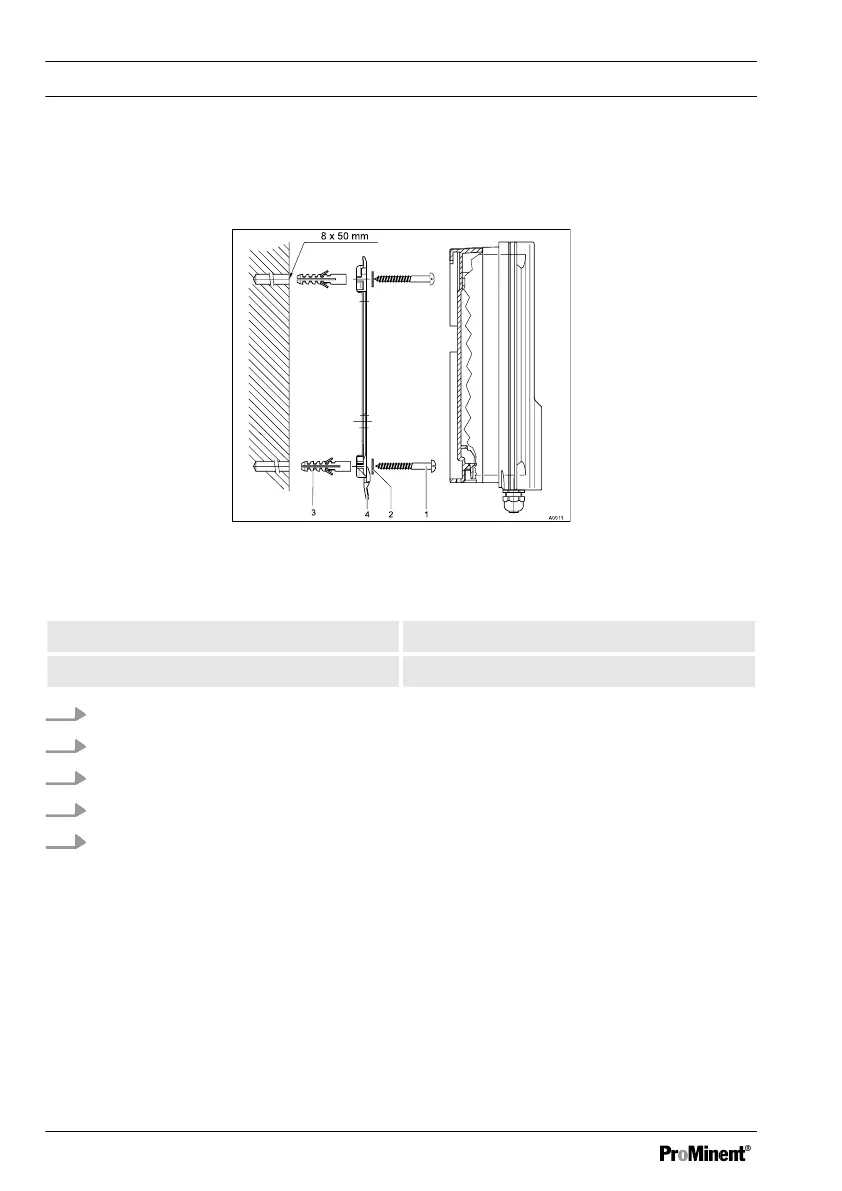

Fig. 3: Fixing material for wall mounting
1. 3 x Round head screws 5x45 2. 3 x Washers 5.3
3. 3 x Plastic wall plugs d8 4. Wall bracket
1. Mark the holes using the wall bracket and drill them
2. Insert wall plugs
3. Secure wall bracket in place with washers and round head screws
4. Place the device from above onto the wall bracket
5. Press the device gently against the wall bracket and slide it approx. 4 mm upwards
until you hear it engage in position
D1Cb mounting
24
