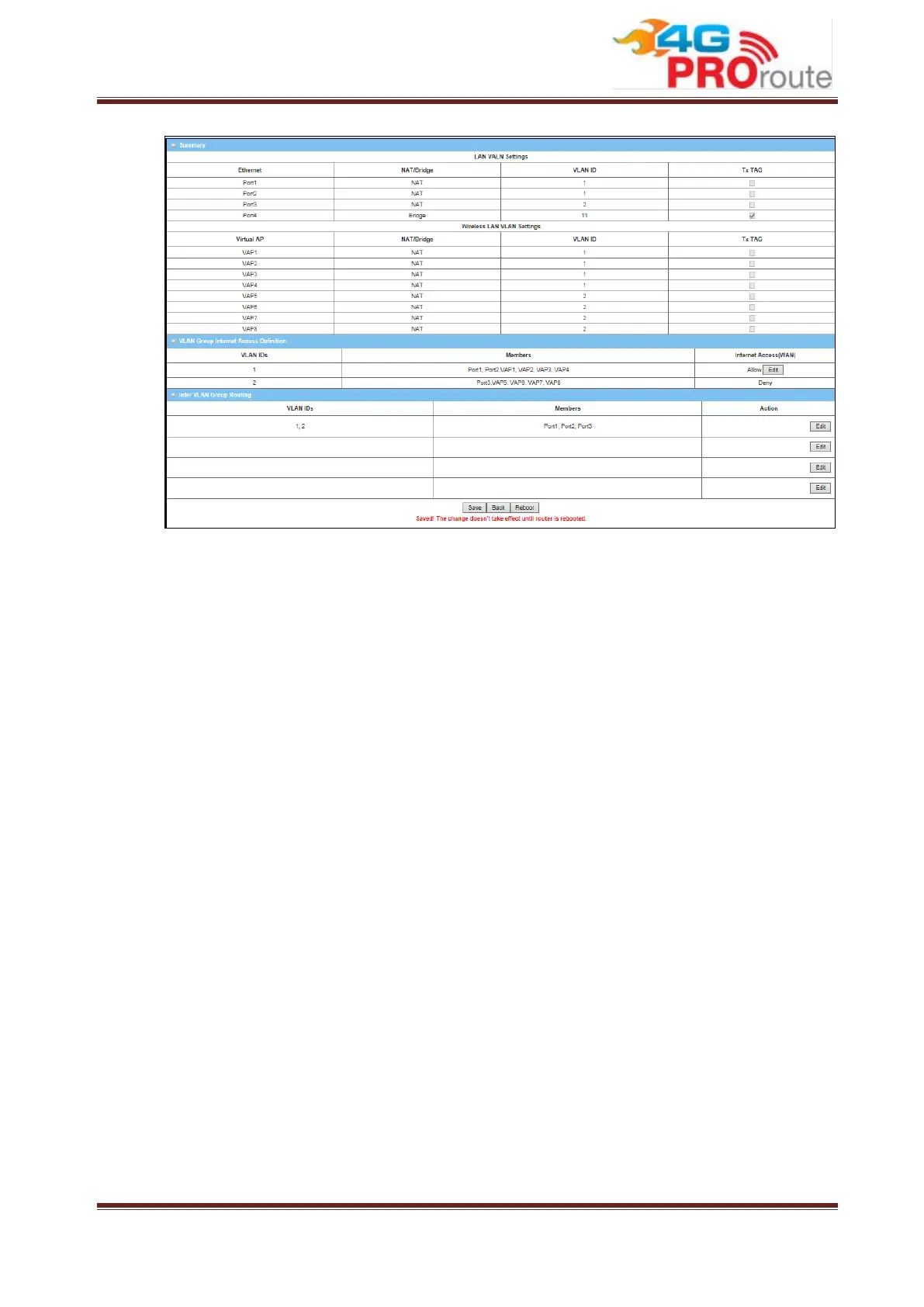

Above configuration example supports 3 access policies. The first one is Internet
Access Policy that includes Port-1, Port-2, VAP-1 ~ VAP-4. All client hosts via
these interfaces can access the Internet. The second policy is Intranet access
Policy that includes Port-3 and VAP-5~ VAP-8. All client hosts via these interfaces
can’t access the Internet. But the Ethernet client hosts of VLAN 1 and 2 groups
can communicate each other. About the configuration of inter-VAP routing, please
refer to Basic Network >> WiFi section. The last one policy is the Bridge to WAN
Policy that includes only Port-4.
Afterwards, click on “Save” to store your settings or click “Undo” to give up the
changes.
3.1.2.2.3 Tag-Based VLAN
The second type of VLAN is the tag-based VLAN. VLAN membership in a tagged
VLAN is determined by VLAN information within the packet frames that are received
on a port. This differs from a port-based VLAN, where the port VIDs assigned to the
ports determine VLAN membership.
When the device receives a frame with a VLAN tag, referred to as a tagged frame, the
device forwards the frame only to those ports that share the same VID.
