ProtaSteel 2021 - Quick Start Guide 31

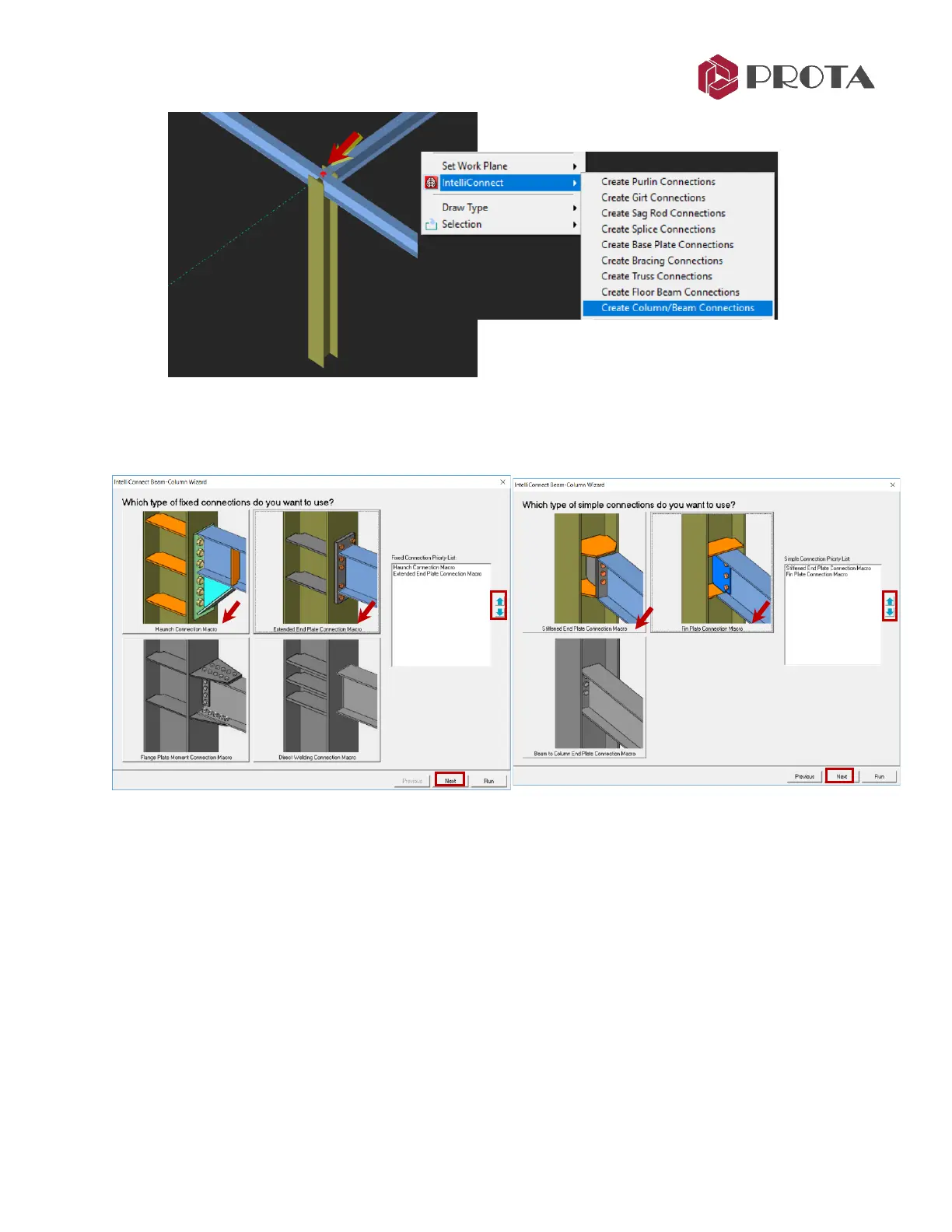

➢ Right-click
→
IntelliConnect
→
Pick Create Column/Beam Connection
Where there is multiple possible connection configuration, the subsequent dialog allows you to choose
which connection type to consider and it’s priority.
➢ Pick the connection types to consider
→
Adjust the priority using up/down arrow
→
Next
The relevant bracing shifting, bracing connection & haunch connecting settings will appear next
➢ Make desired adjustment
→
Run
→
Then connections will be created
