111

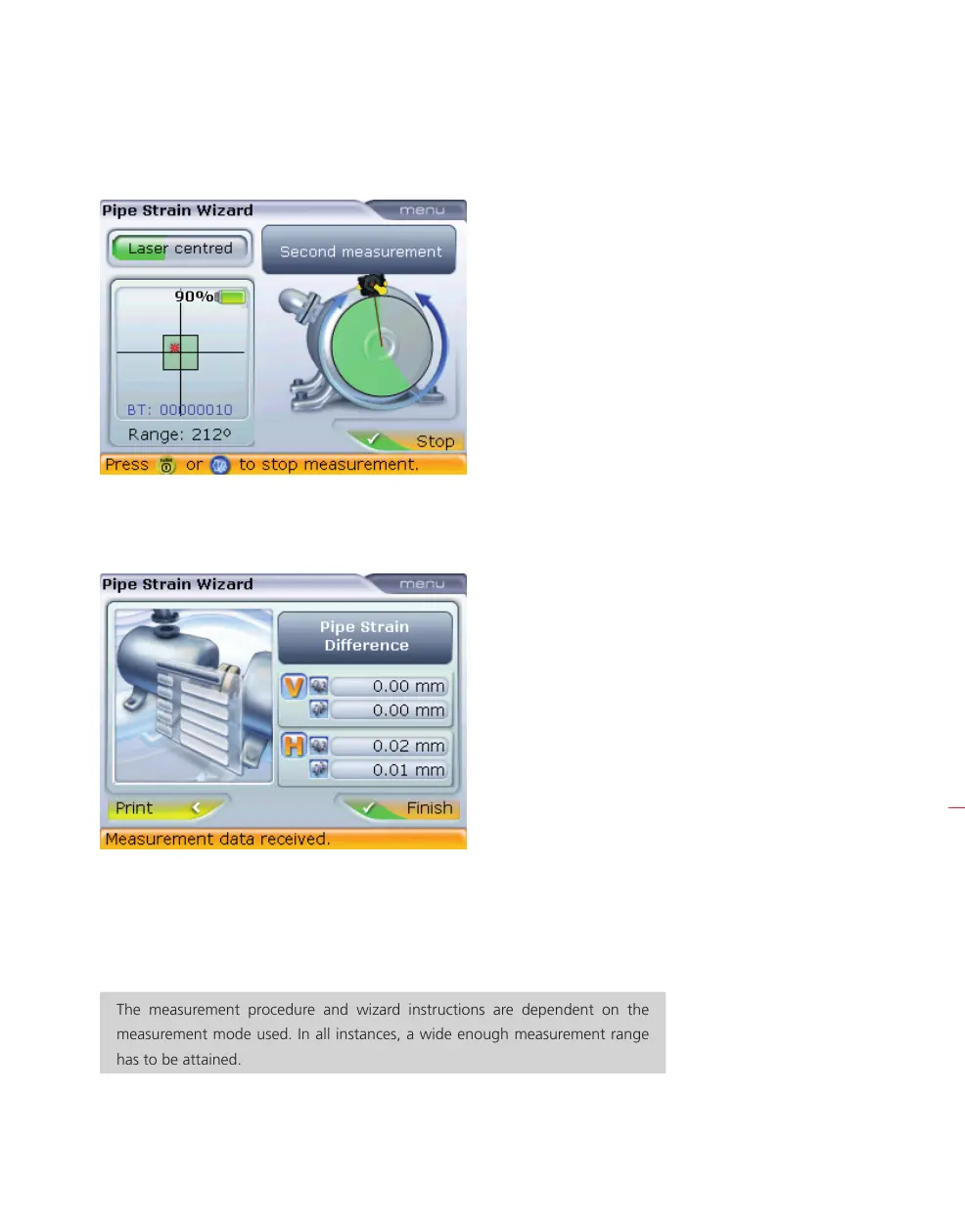

Proceed to take measurements as described in first measurement steps previously.
Pipe strain results are automatically displayed after pressing
e with the ‘Stop’
button highlighted.
The pipe strain measurement is documented in the file measurement report and may
also be saved as an individual pipe strain measurement report PDF file or printed
directly from the system computer. To save or print report, refer to section 5.14
‘Saving data and printing’.
The measurement procedure and wizard instructions are dependent on the
measurement mode used. In all instances, a wide enough measurement range
has to be attained.
Toggle between ‘Finish’ and
‘Print’ using the navigation
keys. Confirm required
option by pressing
e.
HNote
Pipe strain
