PRÜFTECHNIK OPTALIGN smart RS5 BT User Manual

Getting started
35

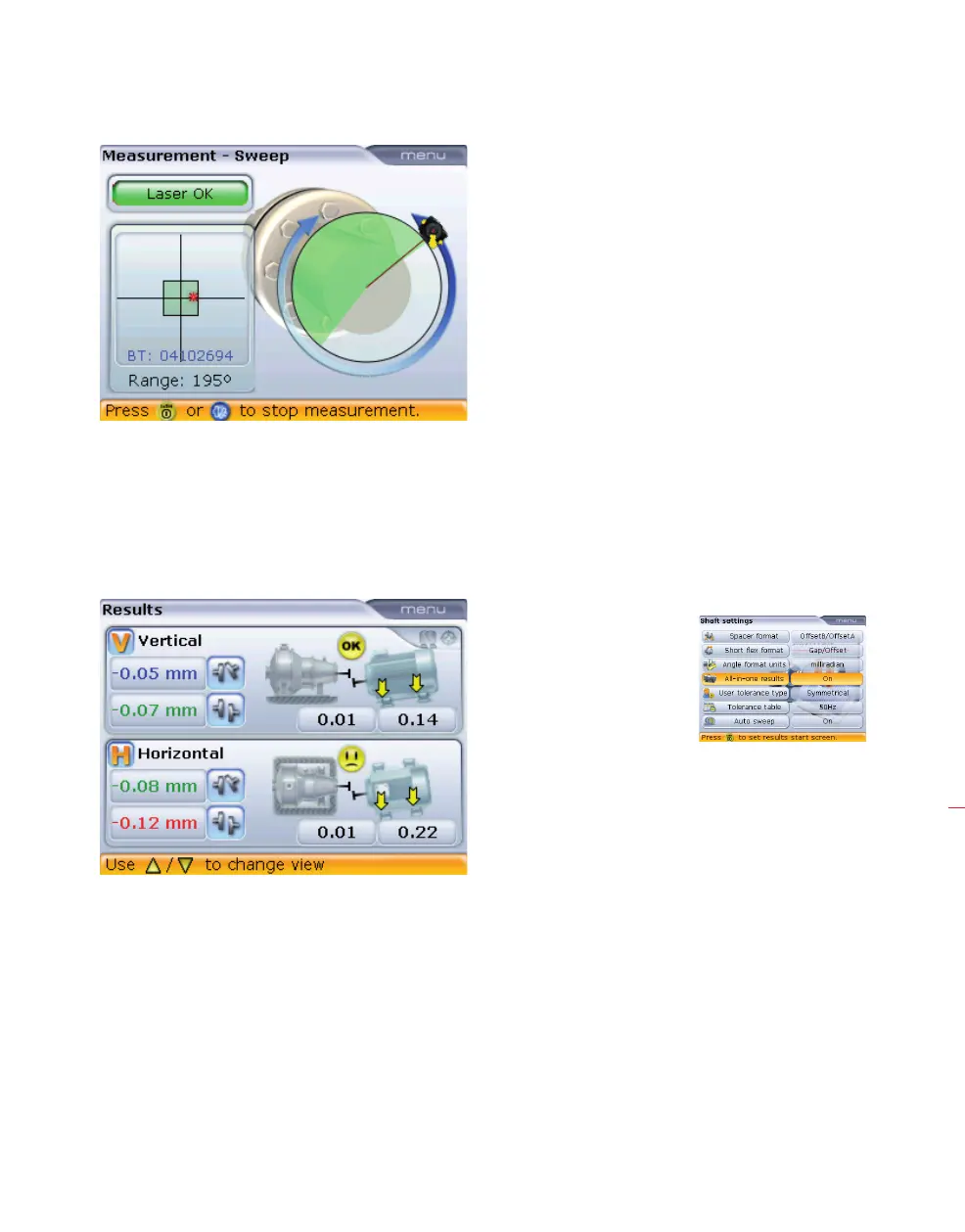

Press e to finish measurement.
4.5 Results
Press k to view alignment results.
Coupling results are given in the form of gap and offset. Gap is positive when open
at the top or side away from viewer. Offset is positive when at the coupling point, the
shaft of the right machine is higher or further away from viewer.
Individual vertical and horizontal foot and coupling results are accessed by pressing
either
k or f or g.
The ‘all-in-one’ results
screen activated under
‘Shaft settings’ shows both
vertical and horizontal
coupling and foot results.
