5.5 Switch the computer on and start application
Switch on the computer by pressing e. The system beeps followed by the flashing
of the blue LED. Shortly afterwards, the shaft alignment machine dimensions screen
appears.

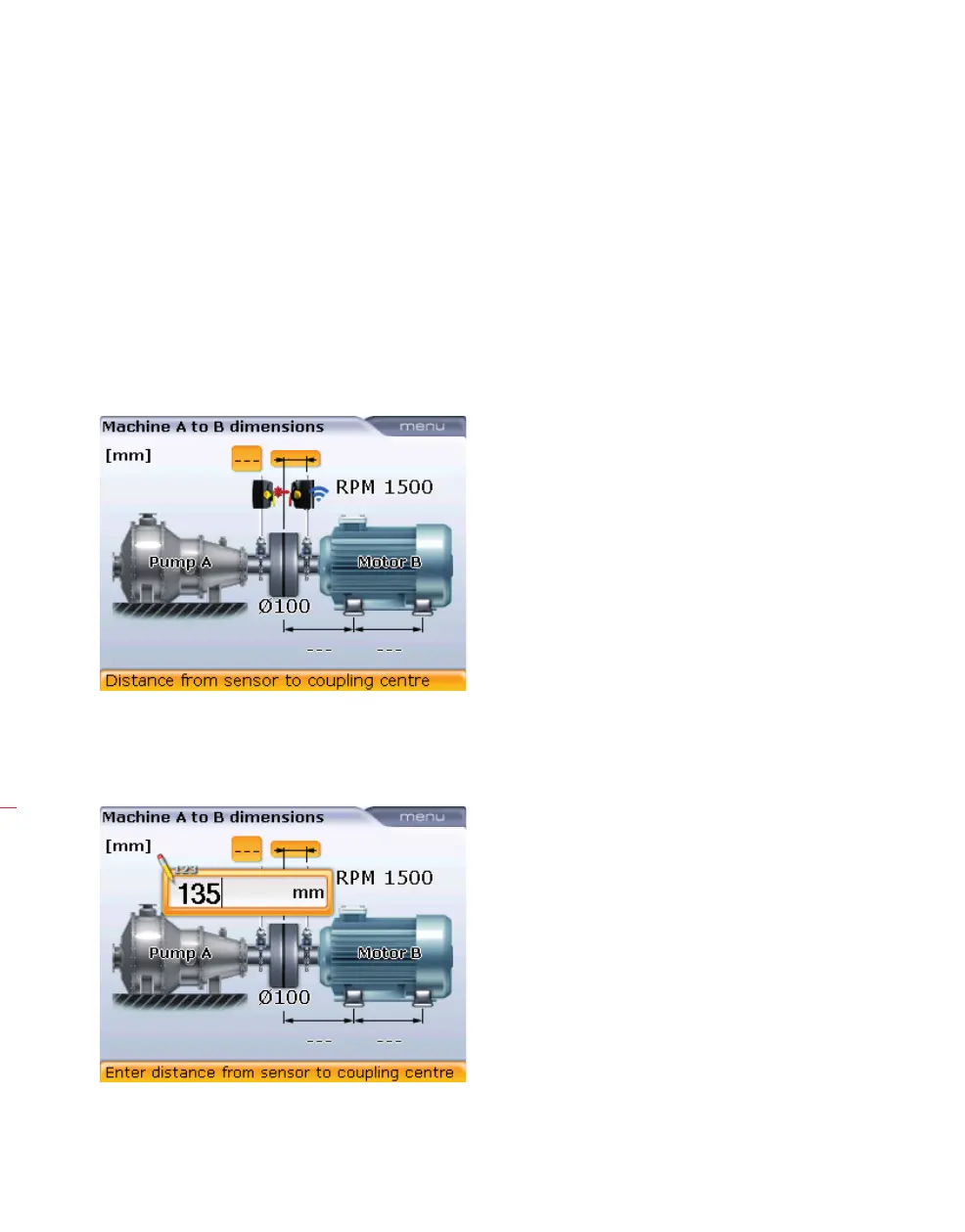

5.6 Enter machine dimensions
Machine information and dimensions are entered using the grey data entry keys.
The required dimensions are entered directly using the data entry keys. With the
required dimension highlighted, enter dimension by pressing the appropriate data
entry keys. The editing box appears as soon as the first key is pressed.
Confirm the entered value by pressing
e. The highlight advances automatically to
the next required dimension. Alternatively, any dimension can be accessed by using
the navigation keys.
