OPTALIGN smart RS5 BT handbook
18
3.2 Computer power supply
The OPTALIGN smart computer ALI 12.200 is powered using six standard ‘AA’ size
alkaline batteries contained in the battery housing ALI 12.600.
The rechargeable battery OPTALIGN smart computer option is powered using a 7.4 V
2.5 Ah Lithium-ion rechargeable battery ALI 12.601 (optional), which is to be charged
only using the AC power supply/charger ALI 12.651-I. The battery can be charged
only inside the computer.
The batteries allow operation of up to 18 hours (25% active measurement, 25%
standby, 50% ‘sleep’ mode).

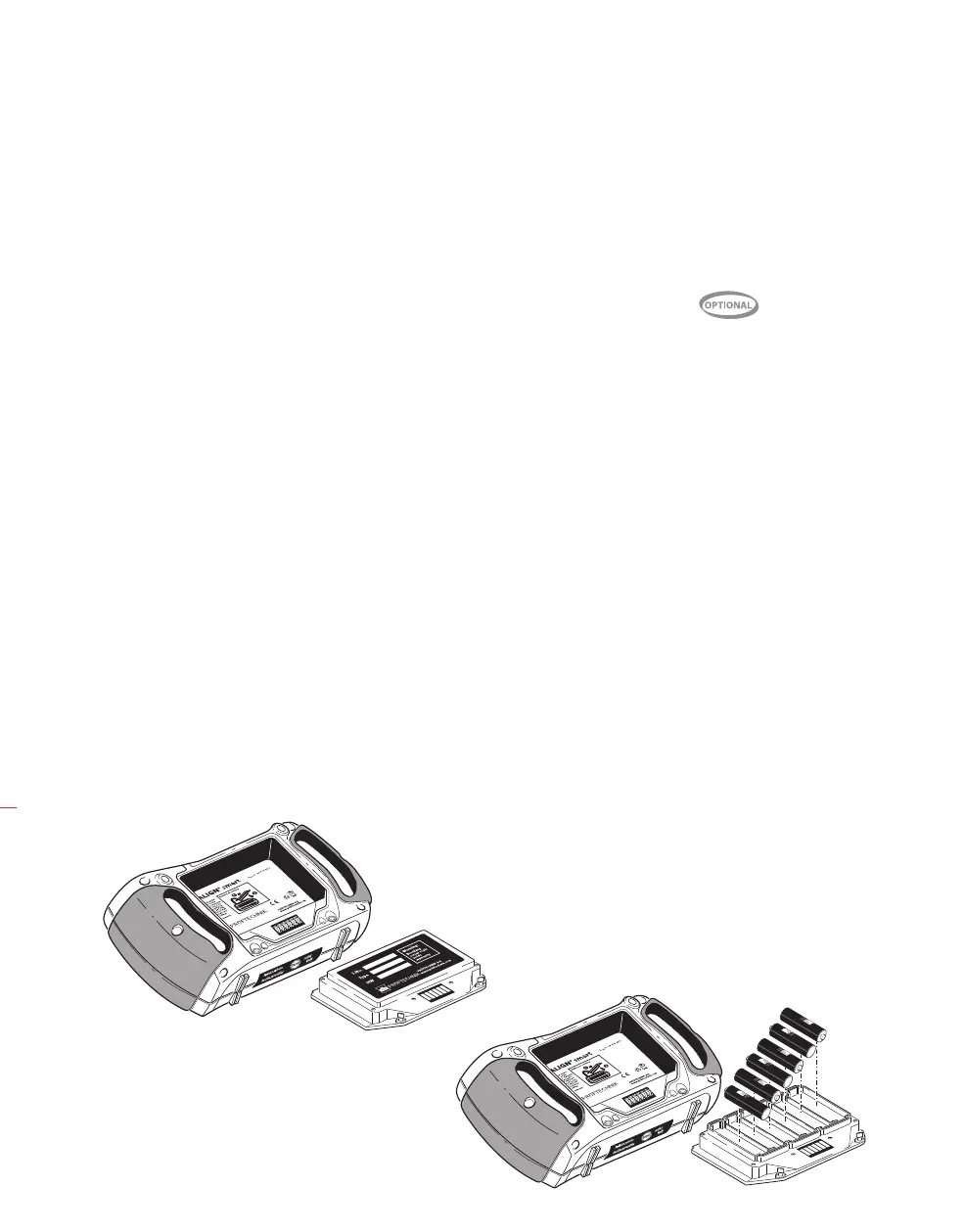

3.2.1 Replacing batteries
The rechargeable battery ALI 12.601 and the battery housing ALI 12.600 have
identical shapes and are therefore interchangeable. If batteries require removal, turn
over the computer taking care not to damage the display and the hard keys. Undo
the two quarter-turn screws by rotating them at least 90° (1/4 turn). With the screws
loosened, lift and pull out the rechargeable battery or the battery compartment
(depending on power supply source). The reverse procedure is used to reinstall the
rechargeable battery or the battery compartment.
Due to their similarity, the battery housing ALI 12.600 is removed and replaced in the
same manner as the rechargeable battery ALI 12.601.
00012
ALI 12.601
1.00
Lift housing or rechargea-
ble battery after undoing
the screws
Replace compartment or
rechargeable battery by
sliding it into the groove
appropriately 6 ‘AA‘ size batteries
Battery housing
ALI 12.600
Baby LR 14 C AM2
No 4014 1,5 V
Baby LR 14 C AM2
No 4014 1,5 V
Nicht ins Feuer werfen!
Nicht wiederauadbar.
May explode in re! Not rechargeable.
Ne pas jeter au feu! non rechargeable.
Baby LR 14 C AM2
No 4014 1,5 V
Nicht ins Feuer werfen!
Nicht wiederauadbar.
May explode in re! Not rechargeable.
Ne pas jeter au feu! non rechargeable.
Baby LR 14 C AM2
No 4014 1,5 V
Baby LR 14 C AM2
No 4014 1,5 V
Nicht ins Feuer werfen!
Nicht wiederauadbar.
May explode in re! Not rechargeable.
Ne pas jeter au feu! non rechargeable.
Baby LR 14 C AM2
No 4014 1,5 V
Rechargeable battery
ALI 12.601
