Horizontal shaft alignment
47
5.7 Machine set-up

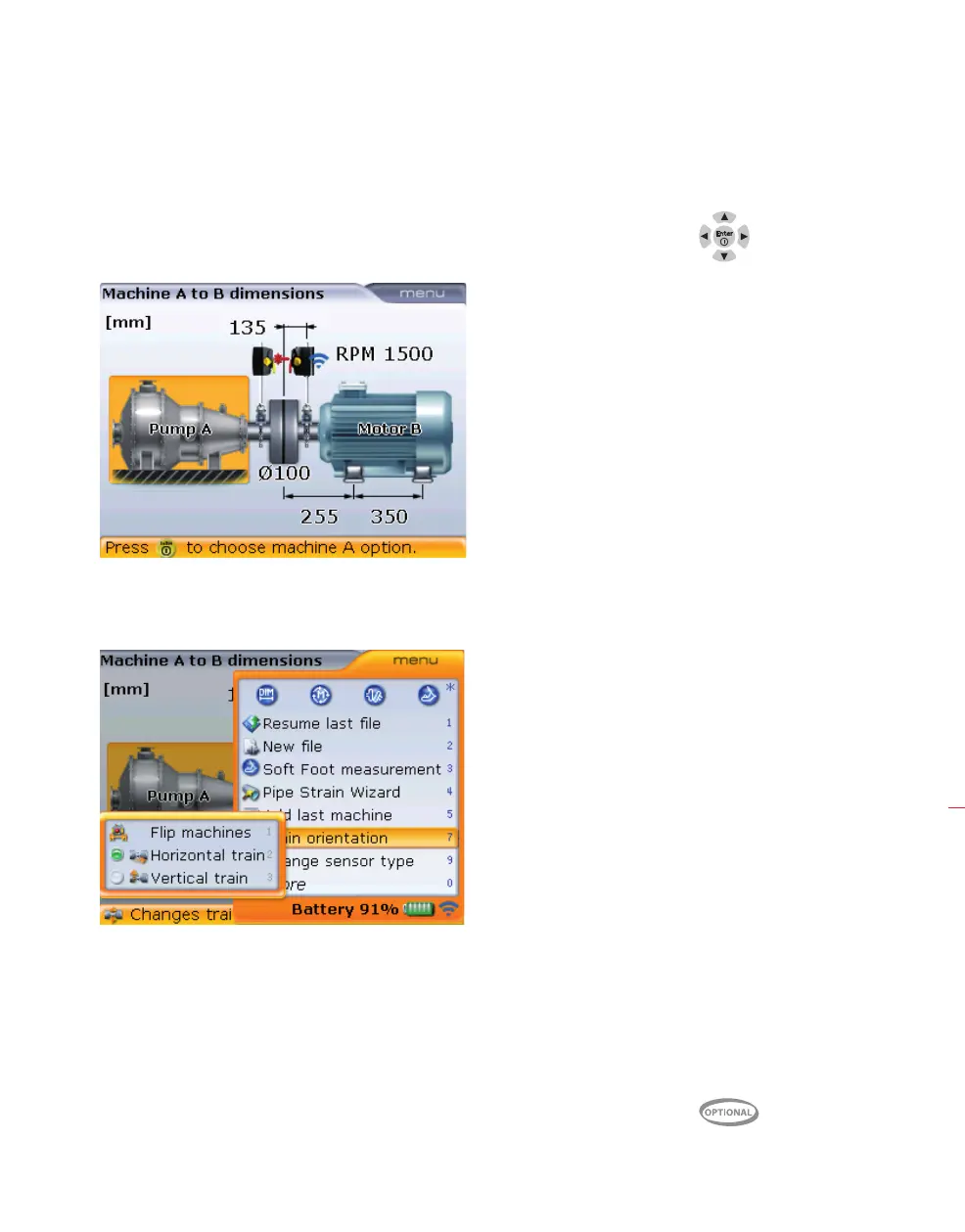

All machine elements may be accessed within the dimensions screen using the
navigation keys.
Pressing
q while in the dimensions screen reveals the menu items shown in the
next screen.
The menu items are accessed by highlighting the respective item using
f or g
then pressing
e to confirm selection. Alternatively, press the respective shortcut key.
‘Resume last file’ opens file last saved before system was switched off
‘New file’ used to create a new measurement file
‘Soft foot measurement’ prompts the measurement of soft foot
‘Pipe strain wizard’ opens the wizard
‘Add last machine’ is used to add a machine to the current train. (The added
element appears on the right side of the train. Note that if the machine train has
three machines, the context menu item ‘Delete machine will be included within
the listed menu items.)
The expanded sub-menu
with the items ‘Flip
machines’, ‘Horizontal
train’ and ‘Vertical train’
appears when the menu
item ‘Train orientation’
is highlighted. The
sub-menu items are
accessed using
h ->
g/f.
