OPTALIGN smart RS5 BT handbook
152
Confirm selection by pressing e. The shim corrections screen appears.
7.6 Machine alignment
Alignment is carried out by correcting angularity and offset.
7.6.1 Correcting angularity
1. Loosen the flange bolts and lift the upper machine.
The machine bolts must be undamaged and removable.
2. Angularity corrections are made by shimming. The shim correction screen shows
the shimming values at the respective bolt locations. Insert (or remove) shims
with the correct thickness under the selected bolt.
Use good quality shims such as PERMABLOC, LAMIBLOC or MYLAR.
3. Retighten the bolts and then remeasure to verify shimming results and determine
the exact alignment condition.
7.6.2 Correcting offset
The correction of offset misalignment is carried out using the Live Move function.

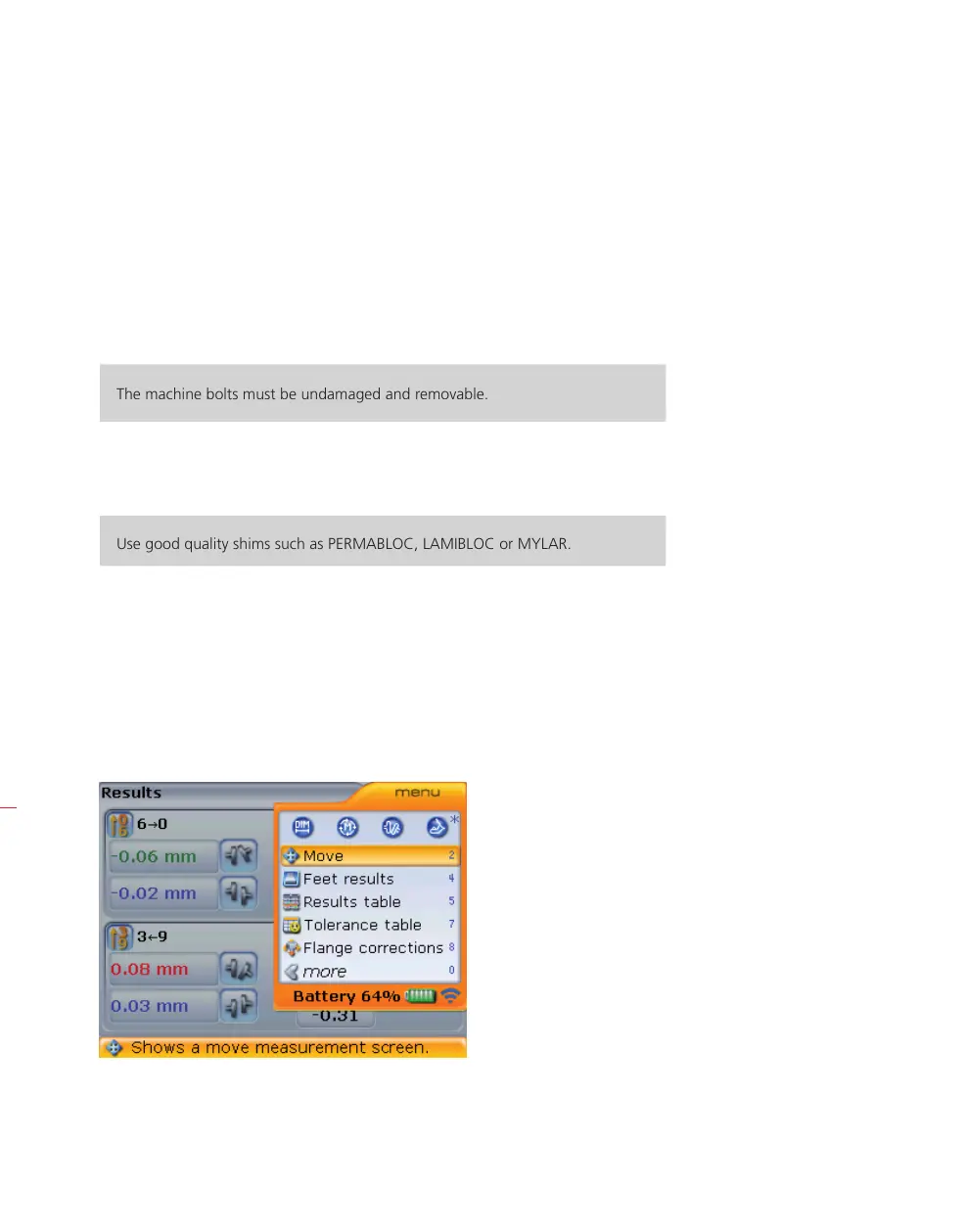

1. Access Live Move by pressing
q while in “Results” screen. Use g/f to
highlight the context menu item ‘Move’.
2. Confirm selection by pressing
e.
3. On confirmation the screen used to position the sensor and laser for the required
move appears. Select the most convenient position.
a
CAUTION
H
Note
