‘Train orientation’ is used to flip machines (see ‘Flipping machines’ section 5.8)
or to select either a vertical or horizontal machine train orientation. For instance,
you may wish to select ‘Vertical train’ for vertical flange-mounted machines.
‘Change sensor type’ is used to allow measurement using RS5 sensor or
ROTALIGN sensor or OPTALIGN sensor.
5.7.1 Machine properties
The editing of specific machine parameters is possible only if the respec-
tive options have been purchased and licenced. Please consult your local
PRÜFTECHNIK representative for details.
In this handbook the ‘optional’ icon is used to highlight features not available in
the standard version.

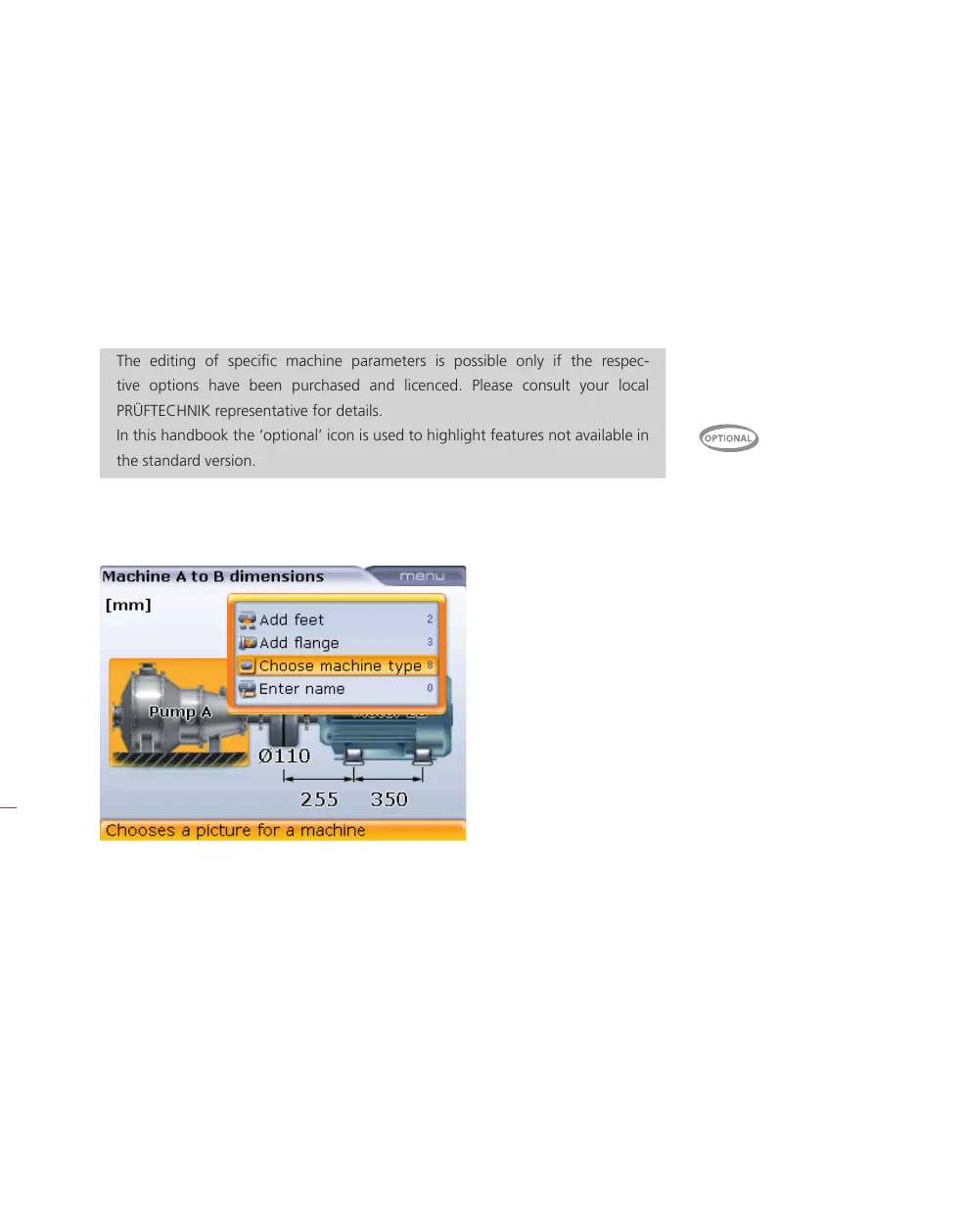

With the machine highlighted, pressing
e reveals the machine parameters that can
be edited.
5.7.1.1 Editing machine type
To choose type of machine to be displayed, use
f/g highlight the context
menu item ‘Choose machine type’ then press
e to confirm selection. The ‘Machine
selection’ pane opens.
HNote
Parameters that can be
edited for stationary
machines include:
 fixation
 flange position
 type of machine
 machine name
