PRÜFTECHNIK OPTALIGN smart RS5 BT User Manual

Horizontal shaft alignment
49

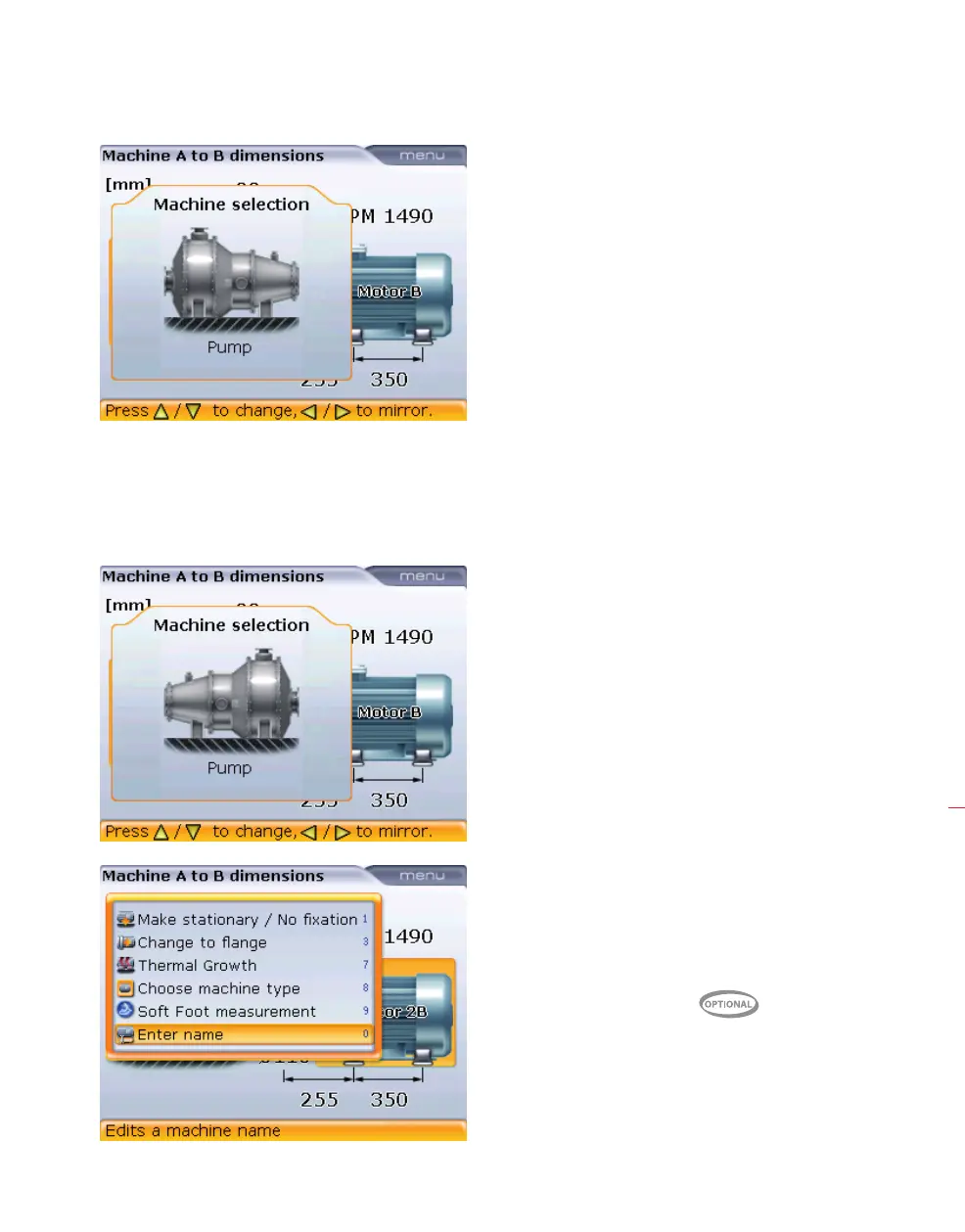

Use f/g to scroll through the available machine type graphics. Following
machine graphics are available: pump, motor, gearbox and a generic standard
machine.
If you need to change the orientation of the machine graphic use
i/h.
Parameters that can be
edited for moveable
machines include:
 fixation
 flange position
 thermal growth values
 type of machine
 machine name
Soft foot measurement can
also be carried out from this
screen.
